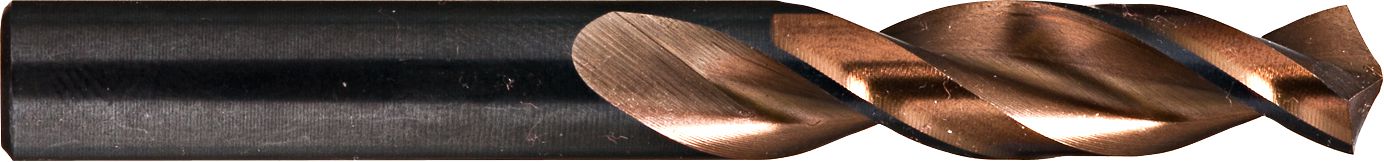

Screw Machine Drill Bit, High Speed Steel, Gold Finish, 135° Modified Split Point, 1-7/8" Flute Length, 25/64 x 3-1/4"
(Pack of
1)
SKU:P57938 Item#: P57938
• 135° modified split point
• Self-centering point eliminates drill walking
• Drill size equals the shank size
• Made in USA
• Unique modified parabolic flute for faster drilling and superior chip removal
• Shorter than ordinary jobber length drills; provides rounder holes and added stability and control in tight spaces
• For hand drilling in close quarters
• Resists “grabbing” – excellent for drilling stainless steel and socket head bolts
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
Frequently Bought Together
Twist-On Surface Conditioning Disc 3" Maroon
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/8"
Couldn't load pickup availability
Mounted Flap Wheel 1"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 5/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 13/32"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 11/64"
Couldn't load pickup availability
Screw Machine Length Drill Bit HSS 3/8"
Couldn't load pickup availability
Screw Machine Length Drill Bit HSS 29/64"
Couldn't load pickup availability
Screw Machine Length Drill Bit Set 15Pcs
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Jobber Length Drill Bit HSS 5/16"
Couldn't load pickup availability
1/8" - 1/2 " Cryonitride Spiral Fluted Step Drill - 1/4" Shank
Couldn't load pickup availability
Mini-Hole Saw Kit
Couldn't load pickup availability
Product Description
• 135° modified split point• Self-centering point eliminates drill walking
• Drill size equals the shank size
• Made in USA
• Unique modified parabolic flute for faster drilling and superior chip removal
• Shorter than ordinary jobber length drills; provides rounder holes and added stability and control in tight spaces
• For hand drilling in close quarters
• Resists “grabbing” – excellent for drilling stainless steel and socket head bolts
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | P57938 |
|---|---|
| Drill Length | Screw Machine |
| Drill Type | Fractional |
| Type | Heavy Duty |
| Material | High Speed Steel |
| Finish | Gold |
| Diameter | 25/64 " |
| Decimal Equivalent | 0.3906 " |
| Point | 135° Modified Split |
| Flute Length | 1-7/8 " |
| Shank | Straight |
| Flats | None |
| Overall Length | 3-1/4 " |
| SAE Code | TD9CSX 0.3906 H3701 / 01.88 - 03.25 |
| UNSPSC #: | 23241635 |
| TAA Compliant: | Yes |
| Weight: | 0.1 lb |
