Home Automotive Hardware Self-Piercing Rivet 3.3 x 5mm
Automotive Hardware

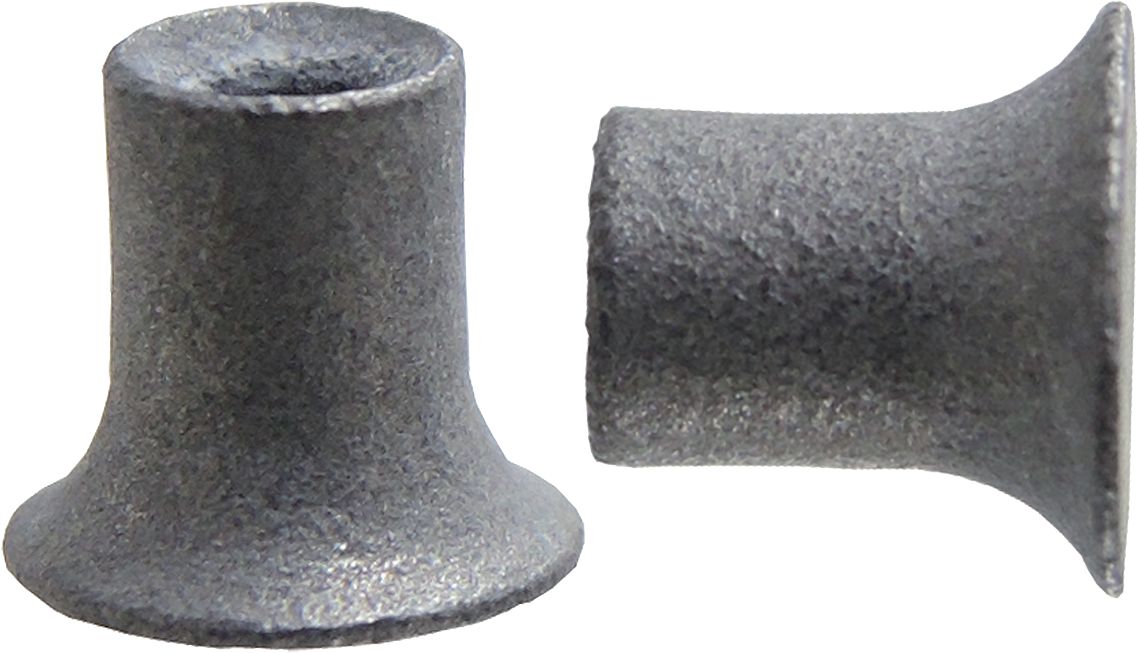

Self-Piercing Rivet, Used on Aluminum Body Panels, Coated Steel, Tin/Zinc Plated, 3.3mm Body Diameter, 5mm Length
(Pack of 25)

Item#: 1488998

Lawson Products

Self-piercing rivets are the most common fastening method used by the OEMs. They are specially-coated steel rivets that pierce the outer body panel and mushroom into the inner body panel without piercing it. A special coating, usually tin/zinc, prevents galvanic corrosion. A special tool is used to press the rivet into place and it must have access to both sides of the panel. Self-piercing rivets are used on aluminum body panels because they duplicate the performance of spot welds without heating the aluminum.

Read More
Check Availability

Catalog page#: 26-317

Frequently Bought Together


Dual Foot Tilt-Lock Air Chuck

Item#: 29042

Tubeless Tire Snap-In Valve 1-1/4"

Item#: 11011

MCN Series Lead Clip-On Wheel Weight 1-1/2 oz

Item#: P45043

Universal Neoprene Captive Brass Well Nut #8-32

Item#: KT11463

Fender Washer Oversized 1/4" ID 1-1/4" OD

Item#: P41680

Hex Head Sheet Metal Screw with 16mm Washer Steel

Item#: P58130

MCN Series Lead Clip-On Wheel Weight 1/4 oz

Item#: P44682

Euro-Style Air Chuck 1/4" FNPT

Item#: 29043

Cable Tie Nylon 155mm

Item#: P86126

Hex Nut Grade 8 Alloy Steel 3/8-16

Item#: A102

USS Flat Washer Thru-Hardened Steel 5/16"

Item#: FA88446

Hex Nut Grade 8 Alloy Steel 1/4-20

Item#: A100

Specialty Rivet 1/8 Diameter 3/16-1/4 Grip Al

Item#: 1679694

Window Regulator Roller Rivet

Item#: 1680397

Ford OEM Self-Piercing Rivet

Item#: 1637092

Product Description

Self-piercing rivets are the most common fastening method used by the OEMs. They are specially-coated steel rivets that pierce the outer body panel and mushroom into the inner body panel without piercing it. A special coating, usually tin/zinc, prevents galvanic corrosion. A special tool is used to press the rivet into place and it must have access to both sides of the panel. Self-piercing rivets are used on aluminum body panels because they duplicate the performance of spot welds without heating the aluminum.

Technical Specifications

Item#: 1488998
Type Self-Piercing Rivet
Body Diameter 3.3 mm
Rivet Length 5.0 mm
Quantity Per Package 25.0000
UNSPSC #: 31162200
TAA Compliant: No
Weight: 0.05 lb
