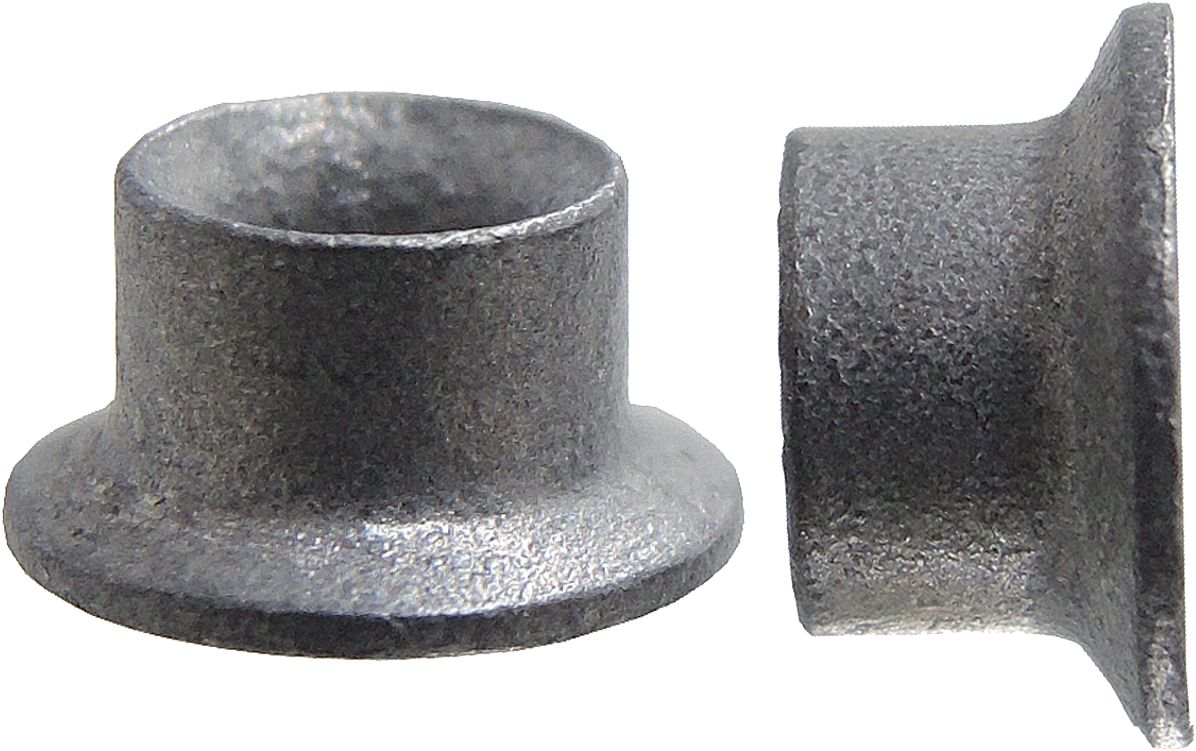

Self-Piercing Rivet 5.3 x 4mm
(Pack of
25.0)
Self-piercing rivets are the most common fastening method used by the OEMs. They are specially-coated steel rivets that pierce the outer body panel and mushroom into the inner body panel without piercing it. A special coating, usually tin/zinc, prevents galvanic corrosion. A special tool is used to press the rivet into place and it must have access to both sides of the panel. Self-piercing rivets are used on aluminum body panels because they duplicate the performance of spot welds without heating the aluminum.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 26-317
Frequently Bought Together
Radiator Side Air Baffle Retainer Nylon 11/16"
Couldn't load pickup availability
Radiator Wheel House Retainer Nylon 17mm
Couldn't load pickup availability
Fender Shield Clip Plastic Black #14
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Bumper Fascia Drive Rivet and Fender Apron Plastic
Couldn't load pickup availability
Dual End Threaded Stud 5/16 SAE x 5/16 USS 1-3/4"
Couldn't load pickup availability
On-The-Wheel Tire Repair String 4"
Couldn't load pickup availability
Front Bumper Fascia Retainer Plastic 15mm
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
Non-Chlorinated Brake Parts Cleaner 14oz
Couldn't load pickup availability
Universal Rivet Steel 1/4"
Couldn't load pickup availability
Self-Piercing Rivet 5.3 x 6.5mm
Couldn't load pickup availability
Self-Piercing Rivet 5.3 x 6mm
Couldn't load pickup availability
Product Description
Self-piercing rivets are the most common fastening method used by the OEMs. They are specially-coated steel rivets that pierce the outer body panel and mushroom into the inner body panel without piercing it. A special coating, usually tin/zinc, prevents galvanic corrosion. A special tool is used to press the rivet into place and it must have access to both sides of the panel. Self-piercing rivets are used on aluminum body panels because they duplicate the performance of spot welds without heating the aluminum.Technical Specifications
| Item#: | 1489000 |
|---|---|
| Type | Self-Piercing Rivet |
| Body Diameter | 5.3 mm |
| Rivet Length | 4.0 mm |
| Quantity Per Package | 25.0000 |
| UNSPSC #: | 31162200 |
| TAA Compliant: | No |
| Weight: | 0.05 lb |
