Home Automotive Hardware Self-Piercing Rivet 5.3 x 9.0mm
Automotive Hardware

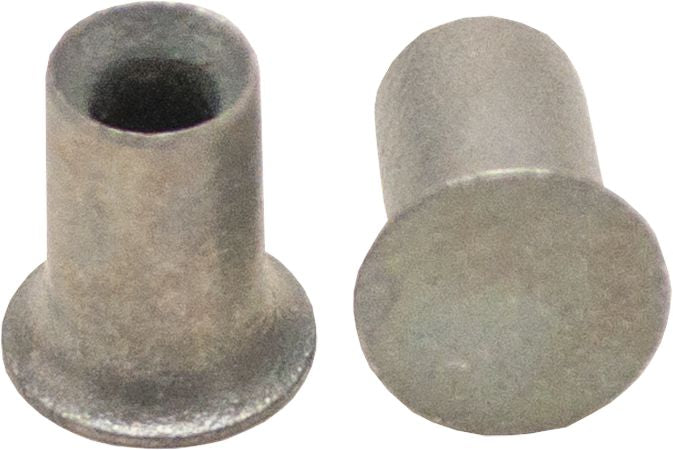

Self-Piercing Rivet, Used on Aluminum Body Panels, Coated Steel, Tin/Zinc Plated, 5.3mm Body Diameter, 9mm Length
(Pack of 25)

Lawson Products

Self-piercing rivets are the most common fastening method used by the OEMs. They are specially-coated steel rivets that pierce the outer body panel and mushroom into the inner body panel without piercing it. A special coating, usually tin/zinc, prevents galvanic corrosion. A special tool is used to press the rivet into place and it must have access to both sides of the panel. Self-piercing rivets are used on aluminum body panels because they duplicate the performance of spot welds without heating the aluminum.

Read More
Check Availability

Catalog page#: 26-317

Frequently Bought Together


Traditional Style Wiper Blade 22"

Item#: KT14699

P Series Lead Clip-On Wheel Weight 0.50oz

Item#: 1529765

MCN Series Lead Clip-On Wheel Weight 3/4 oz

Item#: P44697

Phillips Round Washer Head Trim Drill Point Screw

Item#: P30411

Front and Rear Bumper Fascia Retainer Plastic 1"

Item#: P20118

Shroud Insulating Button Nylon 11/16"

Item#: P21462

Universal Neoprene Captive Brass Well Nut #10-32

Item#: 57496

Phillips Round Washer Head Drill Point Screw #8

Item#: P27606

On-The-Wheel Tire Repair String 4"

Item#: 94919

Butt Connector 16 to 14 AWG Blue

Item#: 92823

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: 88447

Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece

Item#: DY89320050

Wheel House Molding Split Rivet Aluminum 3/16"

Item#: P68087

Front License Plate to Bumper Cover Split Rivet

Item#: P20153

Grip-Tite Deck Lock Cover Rivet Countersunk 5/32"

Item#: P27195

Product Description

Self-piercing rivets are the most common fastening method used by the OEMs. They are specially-coated steel rivets that pierce the outer body panel and mushroom into the inner body panel without piercing it. A special coating, usually tin/zinc, prevents galvanic corrosion. A special tool is used to press the rivet into place and it must have access to both sides of the panel. Self-piercing rivets are used on aluminum body panels because they duplicate the performance of spot welds without heating the aluminum.

Technical Specifications

Item#: 1610336
Type Self-Piercing Rivet
Body Diameter 5.3 mm
Rivet Length 9.0 mm
Quantity Per Package 25.0000
UNSPSC #: 31162200
TAA Compliant: No
Weight: 0.07 lb
