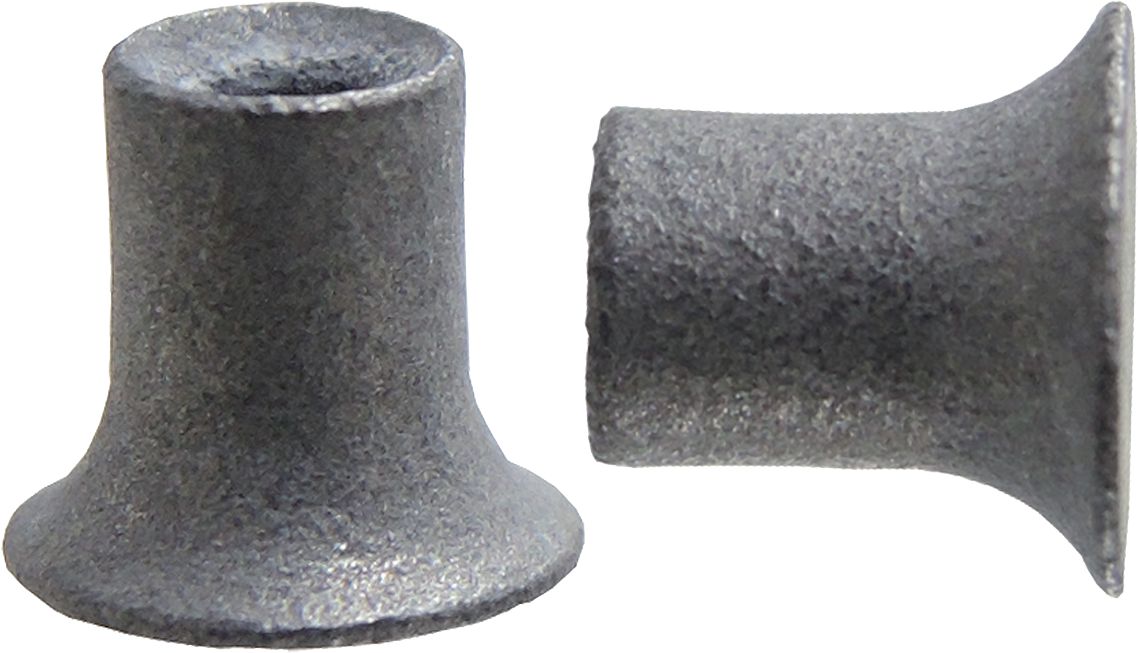

SPR; Overall Len: 6.05mm; Dia: 5.3mm; Inside Dia: 3.35mm; Head Dia: 7.8mm; Head Style: Solid; Cab & Back Panel
(Pack of
10)
Self-piercing rivets (SPR) join two or more pieces of material using a rivet without a pre-drilled hole. Self-piercing rivets are a semi-tubular rivet driven at high force through the material layers to be joined, into a die which causes the tail of the rivet to flare out and form a joint. The process requires no hole preparation and delivers high static strength similar to, or better than, spot welding. This process produces a fatigue resistant joint that is stronger than spot welding and less susceptible to corrosion. The use of coated, lightweight and high-strength materials, such as galvanized or pre-painted steel and aluminum makes welding these materials difficult and often not possible.
Specs are approximate and for identification only. Refer to Ford Service Kit instructions as to the proper SPR for your application.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Extruded U-Nut Steel M6-1
Couldn't load pickup availability
Fender Washer Oversized 3/8" ID 1-1/2" OD
Couldn't load pickup availability
Fender Washer Oversized 1/4" ID 1-1/4" OD
Couldn't load pickup availability
Push-Type Retainer Kit 12 Items 125Pcs
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Bumper Cover Split Rivet Aluminum 1/4"
Couldn't load pickup availability
MCN Series Lead Clip-On Wheel Weight 1 oz
Couldn't load pickup availability
Steel Wiring Harness Clip Small
Couldn't load pickup availability
P Series Lead Clip-On Wheel Weight 1oz
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Self-Piercing Rivet 5.3 x 9.0mm
Couldn't load pickup availability
Self Piercing Rivet Ford: W717184-S900
Couldn't load pickup availability
Universal Rivet Steel 1/4"
Couldn't load pickup availability
Product Description
Self-piercing rivets (SPR) join two or more pieces of material using a rivet without a pre-drilled hole. Self-piercing rivets are a semi-tubular rivet driven at high force through the material layers to be joined, into a die which causes the tail of the rivet to flare out and form a joint. The process requires no hole preparation and delivers high static strength similar to, or better than, spot welding. This process produces a fatigue resistant joint that is stronger than spot welding and less susceptible to corrosion. The use of coated, lightweight and high-strength materials, such as galvanized or pre-painted steel and aluminum makes welding these materials difficult and often not possible.Specs are approximate and for identification only. Refer to Ford Service Kit instructions as to the proper SPR for your application.
Technical Specifications
| Item#: | 1632574 |
|---|---|
| Code | AT |
| Type | Self-Piercing Rivet |
| Body Diameter | 5.3 mm |
| Make | Ford |
| OEM Number | W708714-S900 |
| Ford OEM Number | W708714-S900 |
| Flange Diameter | 7.8 mm |
| Rivet Length | 6.05 mm |
| I.D. | 3.35 mm |
| Description | Self-Piercing Rivet |
| Quantity Per Package | 10.0000 |
| Head Style | Solid |
| F-150 Location | Cab and Back Panel |
| UNSPSC #: | 31162200 |
| TAA Compliant: | Yes |
| Weight: | 0.04 lb |
