Home Electrical Self-Stripping T-Tap Female Connector 16 to 14 AWG
Electrical

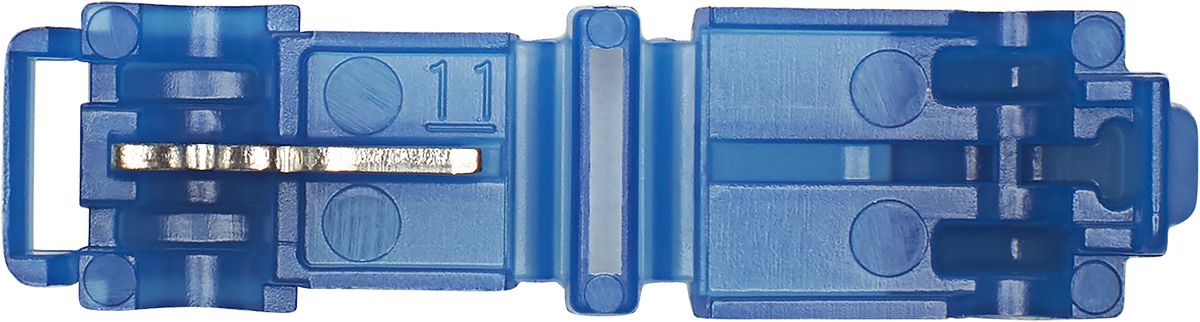

Self-Stripping T-Tap Female Connector 16 to 14 AWG
(Pack of 25.0)

Lawson Products

• Makes mid-span connections without stripping insulation
• Provides fully-insulated connections when used with Lawson’s fully-insulated Male Quick Slides
• Installs fast, reduces possible conductor damage and eliminates time-consuming mid-span tap
• Tab width 0.250"; tab thickness 0.032" ± 0.002"• Will accommodate all 0.250" UL 310 listed male tabs• 600V rating

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 17-62

Frequently Bought Together


Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black

Item#: 86502

MINI Fuse 30A Green

Item#: 95706

MINI Fuse 15A Blue

Item#: 95703

Self-Stripping T-Tap Female Connector 22 to 18 AWG

Item#: 88732

In-Line Tap Connector 12 AWG Yellow

Item#: P28015

In-Line Tap Connector 18 to 14 AWG Blue

Item#: P59144

Self-Drilling Screw Hex Head #10-16 x 3/4"

Item#: 84931

Lock Washer Alloy Steel 3/8"

Item#: A530

Nutsetter & Bit Set, Magnetic, 22pc

Item#: FA5737

Ring Tongue Terminal 22 to 18 AWG Red

Item#: 25252

Butt Connector 22 to 18 AWG Red

Item#: 87670

Wire Connector 22 to 14 AWG Orange

Item#: 25001

Product Description

• Makes mid-span connections without stripping insulation
• Provides fully-insulated connections when used with Lawson’s fully-insulated Male Quick Slides
• Installs fast, reduces possible conductor damage and eliminates time-consuming mid-span tap
• Tab width 0.250"; tab thickness 0.032" ± 0.002"• Will accommodate all 0.250" UL 310 listed male tabs• 600V rating

Technical Specifications

Item#: 86392
Style Self-Stripping T-tap Female quick-slide connectors
Connector Type T-Tap Female Quick
Color Blue
Wire Gauge 16-14 AWG
Tab Thickness .032 ± .002 "
Tab Width 1/4 "
Voltage Rating 600 V
Approvals UL, CSA
Type Electrical Connectors
UNSPSC #: 39121409
TAA Compliant: Yes
Weight: 0.05 lb
