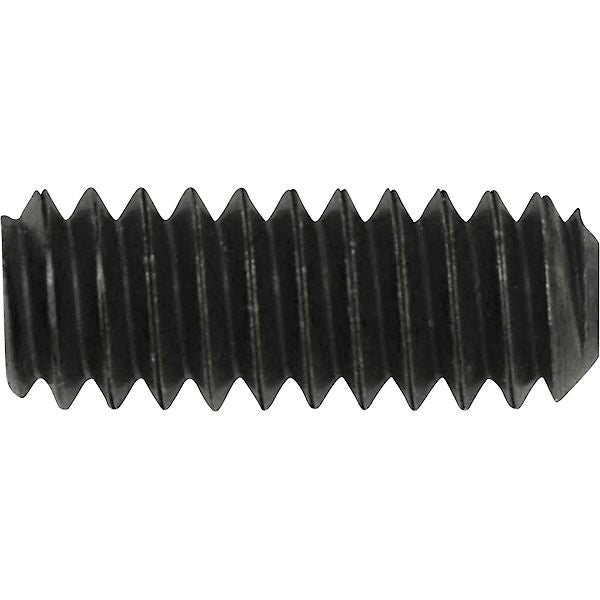

Set Screw, Cup Point, Alloy Steel, Black Oxide Finish, Coarse Thread, 3/32" Hex Key, #10-24 x 1/2"
(Pack of
50)
SKU:3712 Item#: 3712
• High-strength, heat-treated high-alloy steel
• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4
Couldn't load pickup availability
Catalog page#: 4-11
Frequently Bought Together
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 5 Steel 1/4-20
Couldn't load pickup availability
Set Screw Cup Point A2 SS M3-0.5 x 5mm
Couldn't load pickup availability
Set Screw Knurled Point Steel #8-32 x 3/8"
Couldn't load pickup availability
Set Screw Knurled Point Steel 1/4-28 x 1/2"
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M6-1 x 25mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M6-1 x 40mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M12-1.75 x 25mm
Couldn't load pickup availability
Product Description
• High-strength, heat-treated high-alloy steel• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4
Technical Specifications
| Item#: | 3712 |
|---|---|
| Diameter | #10 |
| Thread Pitch | 24 |
| Length | 1/2 " |
| Point | Cup |
| Type | Set Screw |
| Finish | Black |
| Material | Alloy Steel |
| Tensile Strength | 180,000 PSI |
| Drive | Hex |
| Thread | Coarse |
| Head Style | Socket Head |
| Key Size | 3/32 " |
| Size | 10X1/2 |
| UNSPSC #: | 31161505 |
| TAA Compliant: | Yes |
| Weight: | 0.14 lb |
