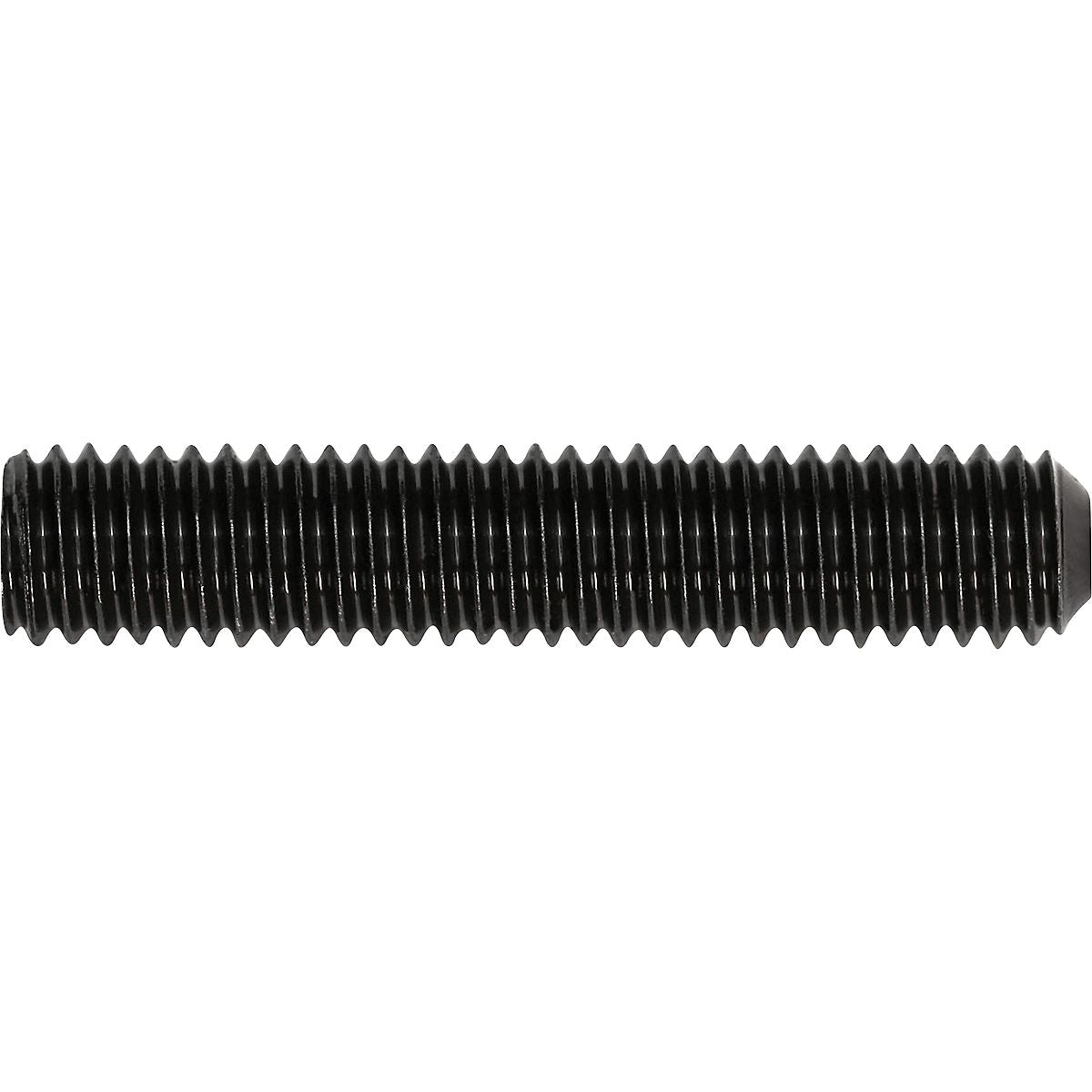

Set Screw Cup Point Steel #10-32 x 1"
(Pack of
50.0)
• High-strength, heat-treated high-alloy steel
• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 4-11
Frequently Bought Together
Hex Cap Screw Grade 5 3/8-16 x 1"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 1/2-13 x 2"
Couldn't load pickup availability
Hex Cap Screw Grade 8 1/4-20 x 1"
Couldn't load pickup availability
Set Screw Cup Point A2 SS M8-1.25 x 16mm
Couldn't load pickup availability
Set Screw Cup Point Steel M6-1 x 20mm
Couldn't load pickup availability
Set Screw Brass Tip Steel #6-32 x 5/16"
Couldn't load pickup availability
Hex Cap Screw Grade 8 Alloy Steel 1/4-20 x 1"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Button Head Socket Cap Screw Steel M6-1 x 20mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M10-1.5 x 20mm
Couldn't load pickup availability
Button Head Socket Cap Screw Steel #3-48 x 3/16"
Couldn't load pickup availability
Product Description
• High-strength, heat-treated high-alloy steel• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4
Technical Specifications
| Item#: | 56045 |
|---|---|
| Diameter | #10 |
| Thread Pitch | 32 |
| Length | 1 " |
| Point | Cup |
| Type | Set Screw |
| Finish | Black |
| Material | Alloy Steel |
| Tensile Strength | 180,000 PSI |
| Drive | Hex |
| Thread | Fine |
| Head Style | Socket Head |
| Key Size | 3/32 " |
| Size | 10-32X1 |
| UNSPSC #: | 31161505 |
| TAA Compliant: | Yes |
| Weight: | 0.31 lb |
