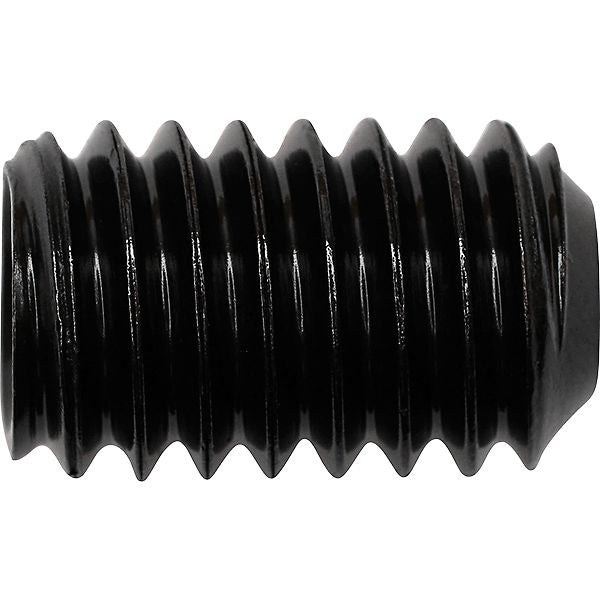

Set Screw Cup Point Steel 5/16-18 x 1/2"
(Pack of 50.0)

Lawson Products

• High-strength, heat-treated high-alloy steel
• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4

Check Availability

Quantity

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 4-11

Frequently Bought Together

Hex Nut Grade 8 Alloy Steel 5/16-18

Hex Nut Grade 5 Steel 5/16-18

Hex Nut Grade 5 Steel 1/4-20

Set Screw Knurled Point Steel 1/4-20 x 3/16"

Set Screw Cup Point Steel 1/4-20 x 1-1/2"

Set Screw Cup Point Steel #4-40 x 5/16"

Superbutt Connector 16 to 14 AWG Blue

Flat Washer Grade 12 Thru-Hardened Steel M8

Hex Nut Grade 8 Alloy Steel 1/2-13

Socket Head Cap Screw Alloy Steel 3/8-16 x 1"

Socket Head Cap Screw Alloy Steel 5/8-11 x 2"

Button Head Socket Cap Screw Steel #10-24 x 1/2"

Product Description

• High-strength, heat-treated high-alloy steel
• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4

Technical Specifications

Item#:	3732
Diameter	5/16 "
Thread Pitch	18
Length	1/2 "

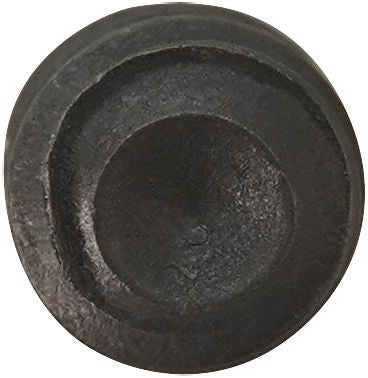

Point	Cup
Type	Set Screw
Finish	Black
Material	Alloy Steel
Tensile Strength	180,000 PSI
Drive	Hex
Thread	Coarse
Head Style	Socket Head
Key Size	5/32 "
Size	5/16-18X1/2
UNSPSC #:	31161505
TAA Compliant:	Yes
Weight:	0.33 lb
