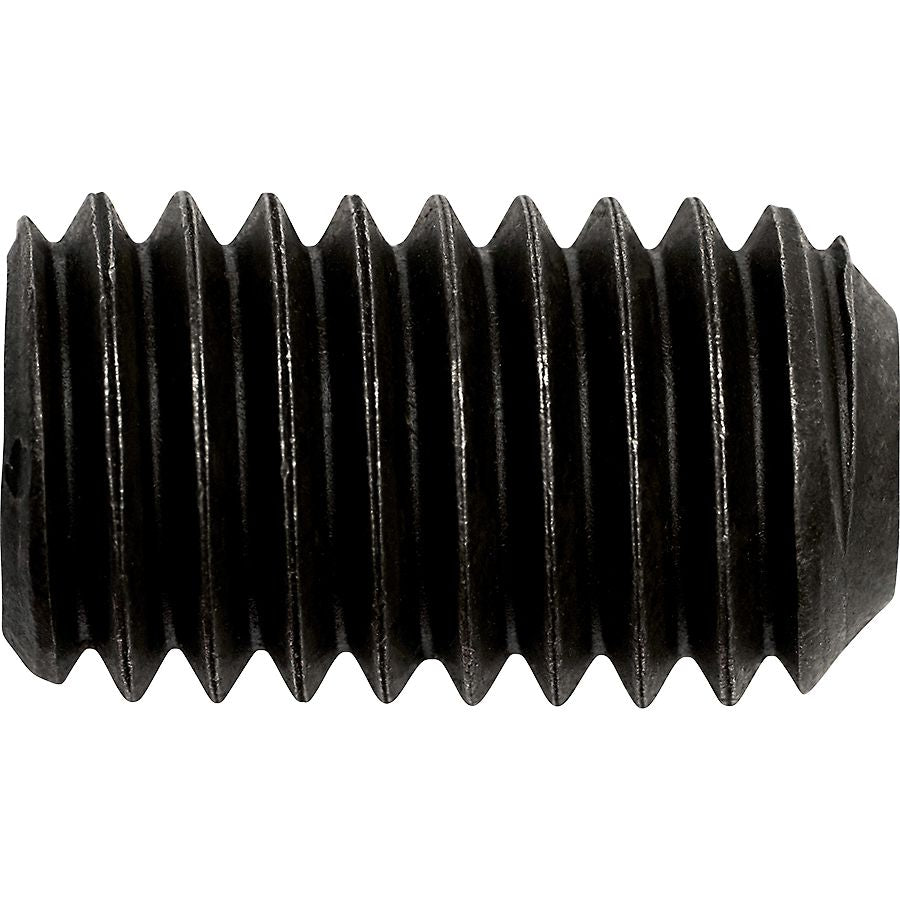

Set Screw Cup Point Steel 7/16-14 x 3/4"
(Pack of 25)

Lawson Products

• High-strength, heat-treated high-alloy steel
• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4

Check Availability

Quantity

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 4-11

Frequently Bought Together

Self-Drilling Screw Hex Head #10-16 x 3/4"

Self-Drilling Screw Hex Head 1/4-14 x 1"

Lock Washer Alloy Steel 3/8"

Set Screw Square Head Steel 3/8-16 x 1"

Set Screw Knurled Point Steel 3/8-16 x 3/4"

Set Screw Cup Point Steel M6-1 x 16mm

Flat Washer Grade 12 Thru-Hardened Steel M8

USS Flat Washer Thru-Hardened Steel 1/4"

PTO Pin Lock 1/4 x 2-1/2"

Flat Head Socket Cap Screw Steel 5/16-18 x 1"

Socket Head Cap Screw 18-8 SS 1/4-20 x 1"

Socket Head Cap Screw A2 SS M4-0.7 x 8mm

Product Description

• High-strength, heat-treated high-alloy steel
• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4

Technical Specifications

Item#:	3747
Diameter	7/16 "
Thread Pitch	14
Length	3/4 "
Point	Cup
Type	Set Screw
Finish	Black
Material	Alloy Steel
Tensile Strength	180,000 PSI
Drive	Hex
Thread	Coarse
Head Style	Socket Head
Key Size	7/32 "
Size	7/16X3/4
UNSPSC #:	31161505
TAA Compliant:	Yes
Weight:	0.53 lb
