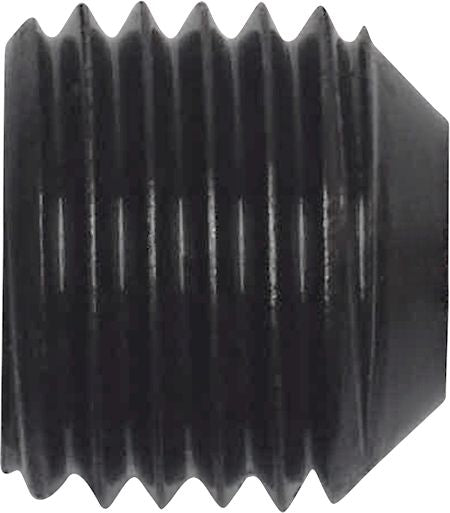

Set Screw, Cup Point, Alloy Steel, Black Oxide Finish, Fine Thread, 7/32" Hex Key, 7/16-20 x 3/8"
(Pack of
50)
SKU:56056 Item#: 56056
• High-strength, heat-treated high-alloy steel
• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4
Couldn't load pickup availability
Catalog page#: 4-11
Frequently Bought Together
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Set Screw Knurled Point Steel 1/4-20 x 3/8"
Couldn't load pickup availability
Set Screw Cup Point Steel 3/8-16 x 3/8"
Couldn't load pickup availability
Set Screw Knurled Point Steel 3/8-16 x 1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M5-0.8 x 12mm
Couldn't load pickup availability
Socket Head Cap Screw Alloy Steel 3/8-16 x 1"
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M8-1.25 x 30mm
Couldn't load pickup availability
Product Description
• High-strength, heat-treated high-alloy steel• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4
Technical Specifications
| Item#: | 56056 |
|---|---|
| Diameter | 7/16 " |
| Thread Pitch | 20 |
| Length | 3/8 " |
| Point | Cup |
| Type | Set Screw |
| Finish | Black |
| Material | Alloy Steel |
| Tensile Strength | 180,000 PSI |
| Drive | Hex |
| Thread | Fine |
| Head Style | Socket Head |
| Key Size | 7/32 " |
| Size | 7/16-20 UNF Key Size 7/32 " |
| UNSPSC #: | 31161505 |
| TAA Compliant: | Yes |
| Weight: | 0.49 lb |
