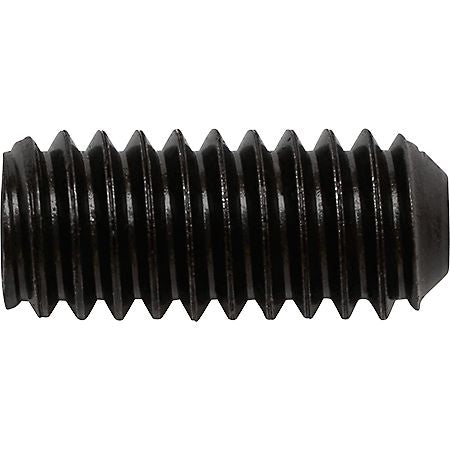

Set Screw, Cup Point, Alloy Steel, Black Oxide Finish, Coarse Thread, 5/64" Hex Key, #8-32 x 3/8"
(Pack of
50)
SKU:3706 Item#: 3706
• High-strength, heat-treated high-alloy steel
• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4
Couldn't load pickup availability
Catalog page#: 4-11
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
Set Screw Knurled Point Steel 1/2-13 x 5/8"
Couldn't load pickup availability
Set Screw Knurled Point Steel 5/16-18 x 1/2"
Couldn't load pickup availability
Set Screw Cup Point Steel #10-32 x 3/16"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M10-1.5 x 40mm
Couldn't load pickup availability
Flat Head Socket Cap Screw Steel 3/8-16 x 1-1/2"
Couldn't load pickup availability
Flat Head Socket Cap Screw Steel 3/8-16 x 1-1/4"
Couldn't load pickup availability
Product Description
• High-strength, heat-treated high-alloy steel• Black finish
• Conforms to ANSI Specification B18.3 and Federal Specification FF-S-200 Type 1, Style 4
Technical Specifications
| Item#: | 3706 |
|---|---|
| Diameter | #8 |
| Thread Pitch | 32 |
| Length | 3/8 " |
| Point | Cup |
| Type | Set Screw |
| Finish | Black |
| Material | Alloy Steel |
| Tensile Strength | 180,000 PSI |
| Drive | Hex |
| Thread | Coarse |
| Head Style | Socket Head |
| Key Size | 5/64 " |
| Size | 8X3/8 |
| UNSPSC #: | 31161505 |
| TAA Compliant: | Yes |
| Weight: | 0.08 lb |
