Setting Punch and Reversible Die Set for Snap Fastener Assembly
(Pack of
1)
SKU:97156 Item#: 97156
• Assembles cap and socket for female connection or stud and eyelet for male connection
To assemble cap and socket for female connection
1. Place cap in reversible die.
2. Punch hole in material large enough to fit the cap barrel through.
3. Place socket over material and cap.

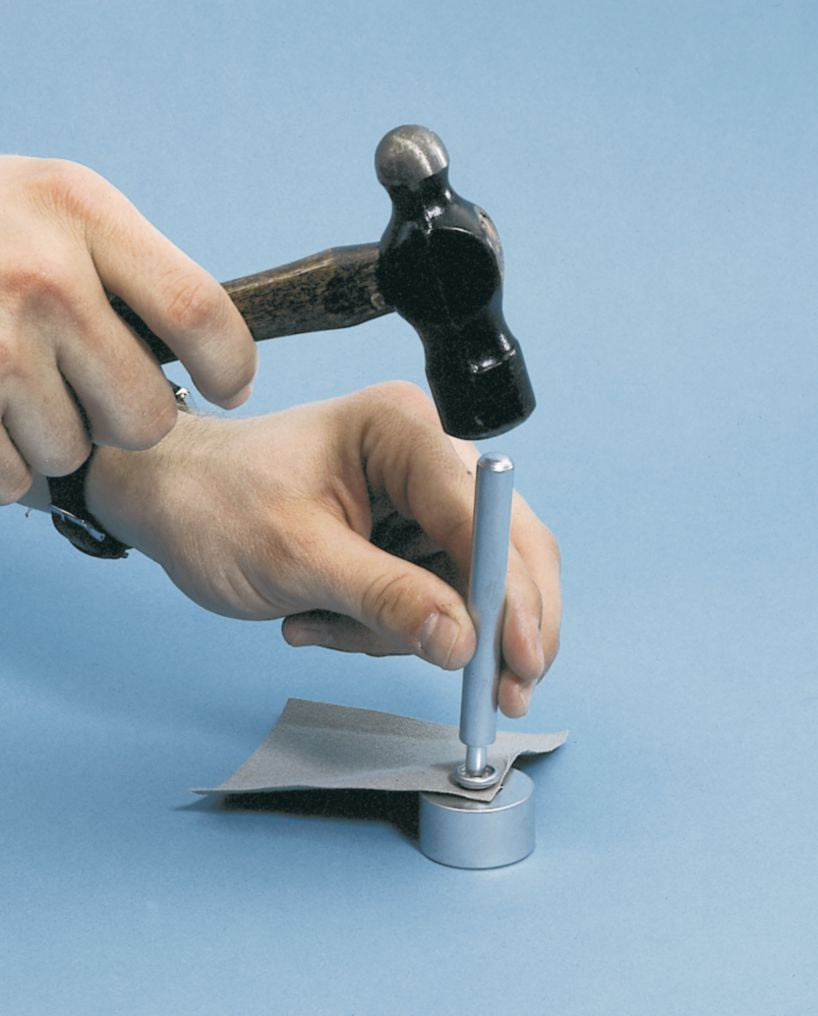

4. Place setting tool on top of cap and socket in reversible die and strike top of tool with hammer.
To install eyelet and stud for male connection
1. Flip the reversible die to the other side.
2. Place eyelet in reversible die. To finish installation, repeat steps 2, 3 and 4 above, using the eyelet and stud.
