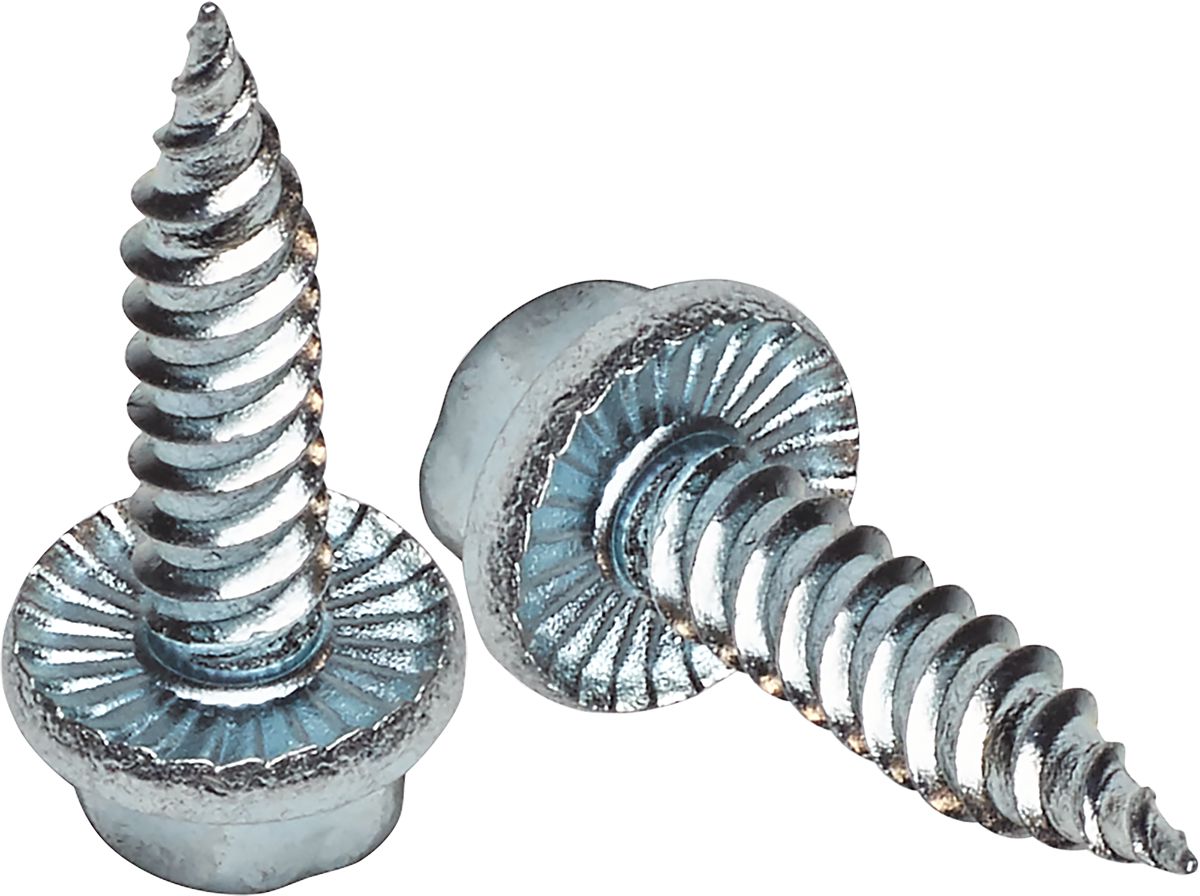

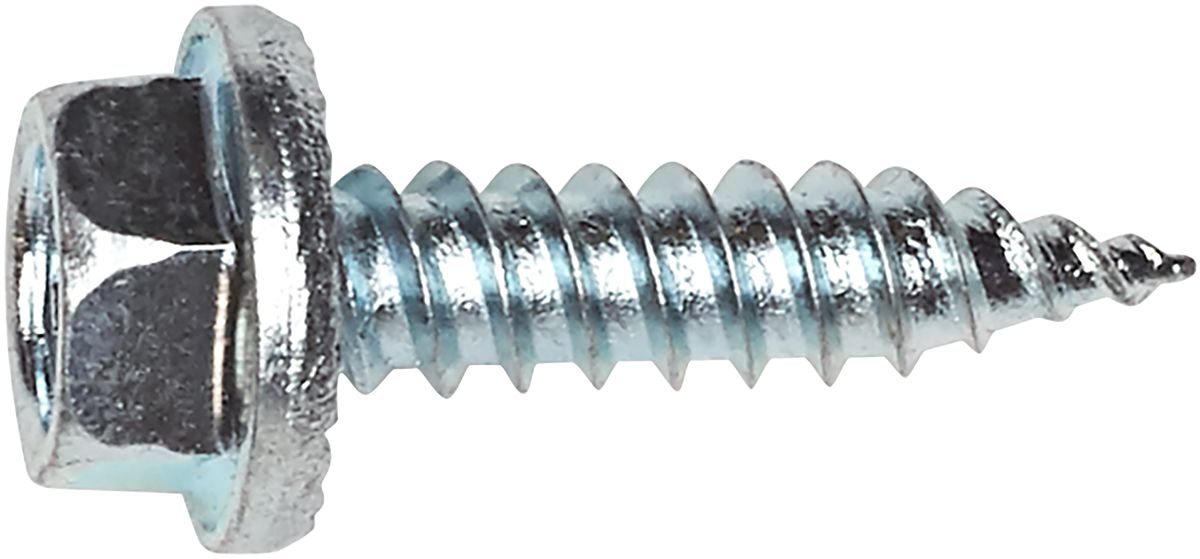

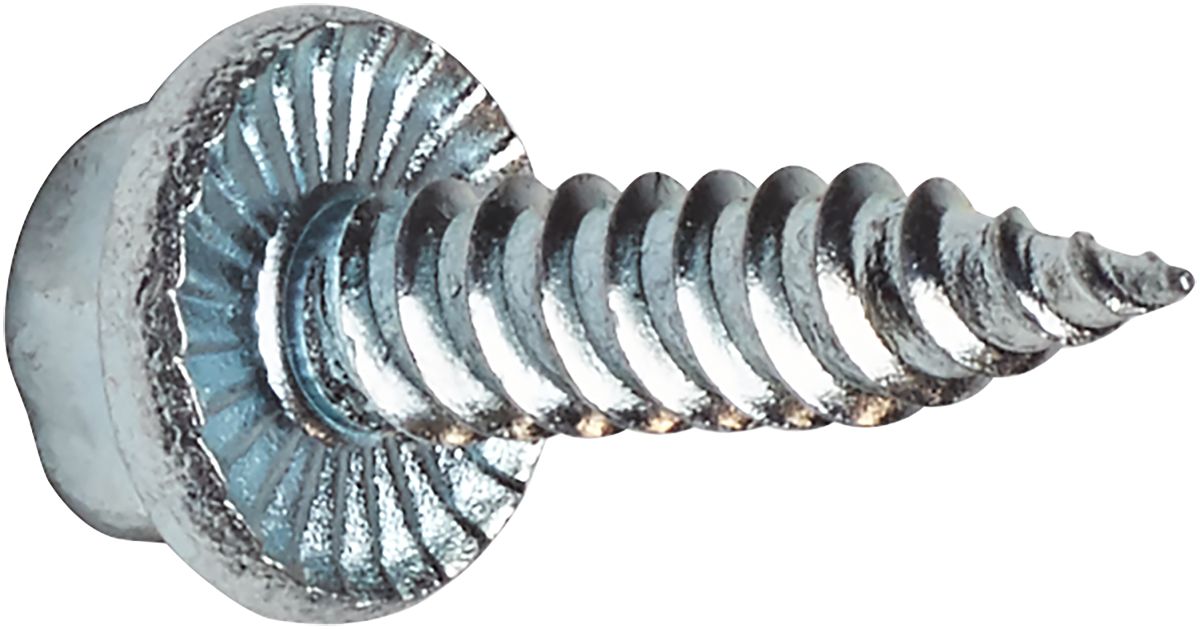

Sheet Metal Screw Phillips/Square Hex Head #8 x 1"
(Pack of
100.0)
• Dual thread pitch design provides greater thread engagement – drives faster and easier, and holds tighter
• Self-piercing point penetrates steel plates up to 16 Ga. (pilot hole is required for 1/2" lengths)
• Special head design draws material under head for full metal engagement
• Flanged teeth virtually eliminate strip-out
• Heat-treated for higher torque without breakage or head round-out
• Resisto-Guard™ plating – up to five times the corrosion resistance of standard zinc or cadmium plating
• Reusable
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Sheet Metal Screw Phillips Pan Head #14 x 3/4"
Couldn't load pickup availability
Machine Screw Phillips Pan Head #10-24 x 1"
Couldn't load pickup availability
Machine Screw Phillips Pan Head #10-24 x 3/4"
Couldn't load pickup availability
Sheet Metal Screw Phillips Pan Head #10 x 1/2"
Couldn't load pickup availability
Sheet Metal Screw Phillips Pan Head #8 x 5/8"
Couldn't load pickup availability
Sheet Metal Screw Phillips Pan Head #10 x 3/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Product Description
• Dual thread pitch design provides greater thread engagement – drives faster and easier, and holds tighter• Self-piercing point penetrates steel plates up to 16 Ga. (pilot hole is required for 1/2" lengths)
• Special head design draws material under head for full metal engagement
• Flanged teeth virtually eliminate strip-out
• Heat-treated for higher torque without breakage or head round-out
• Resisto-Guard™ plating – up to five times the corrosion resistance of standard zinc or cadmium plating
• Reusable
Technical Specifications
| Item#: | P69666 |
|---|---|
| Diameter | #8 |
| Length | 1 " |
| Head Style | Hex |
| Finish | Bright Zinc |
| Material | Carbon Steel |
| Drive | Phillips/Square |
| Pilot Hole | - |
| Size | 8X1 " |
| Type | Sheet Metal Screw |
| UNSPSC #: | 31161506 |
| TAA Compliant: | Yes |
| Weight: | 0.63 lb |
