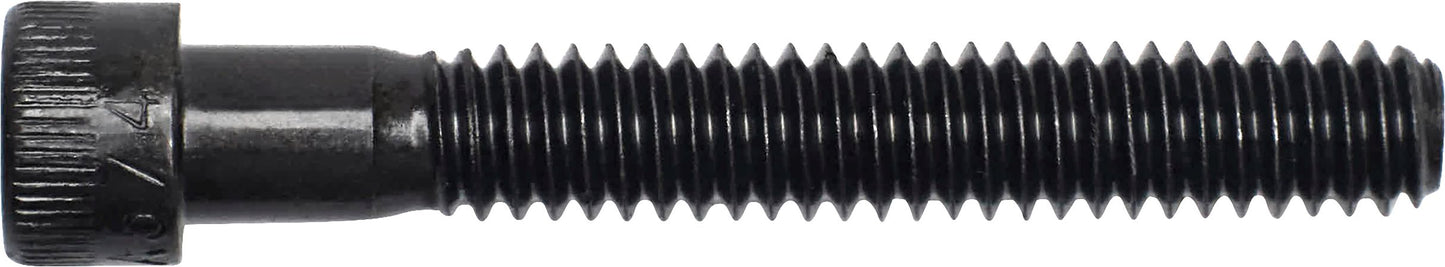

Socket Head Cap Screw Alloy Steel 1/4-20 x 1-3/4"
(Pack of
25.0)
• Full product traceability
• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
Premium Socket Head Cap Screws - Full traceabilty, diameter size rolled into the screw head for quick identification
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 4-2
Frequently Bought Together
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Nylon Cable Tie 8" Black
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Waterproof Work Aqua Light 66 LED
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M6-1 x 12mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M8-1.25 x 20mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M8-1.25 x 25mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M6-1 x 12mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M8-1.25 x 20mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M8-1.25 x 25mm
Couldn't load pickup availability
Product Description
• Full product traceability• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
Premium Socket Head Cap Screws - Full traceabilty, diameter size rolled into the screw head for quick identification
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications
Technical Specifications
| Item#: | 3516 |
|---|---|
| Diameter | 1/4 " |
| Thread Pitch | 20 |
| Length | 1-3/4 " |
| Material | Alloy Steel |
| Finish | Black Oxide |
| Head Style | Socket |
| Tensile Strength | 180,000 PSI |
| Thread | Coarse |
| Type | Socket Head Cap Screw |
| Key Size | 3/16 " |
| Drive | Hex |
| Size | 1/4-20X1-3/4 |
| UNSPSC #: | 31161518 |
| TAA Compliant: | Yes |
| Weight: | 0.63 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
