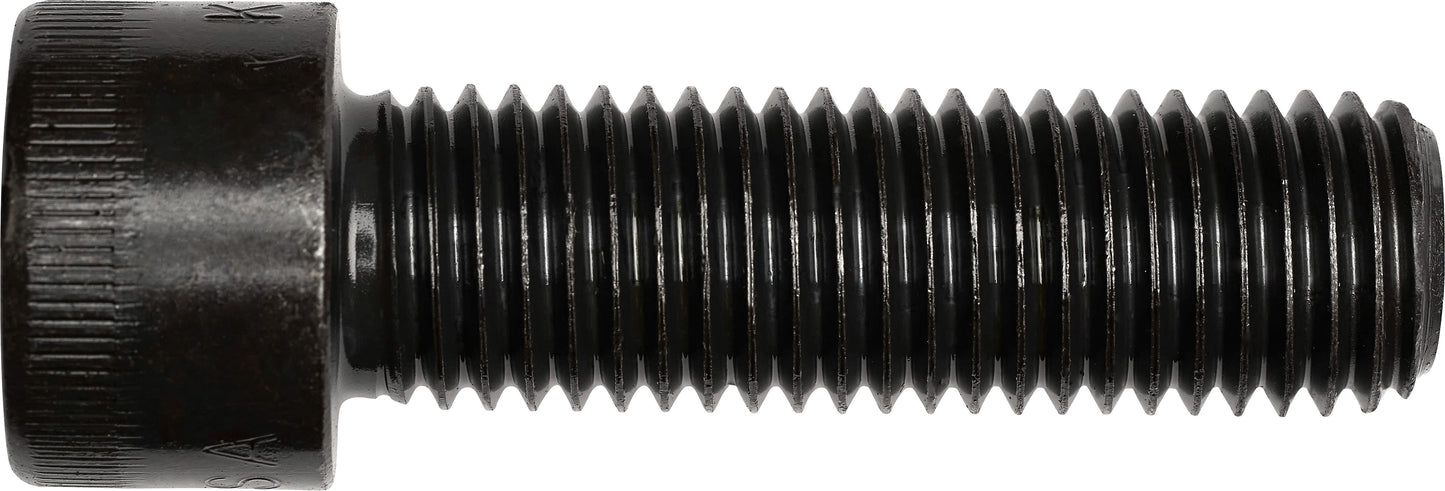

Socket Head Cap Screw, Alloy Steel, Premium Black Oxide Finish, Coarse Thread, 5/8" Hex Key, 3/4-10 x 2-1/2"
(Pack of 5)

Item#: 3574

Lawson Products

• Full product traceability
• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
Premium Socket Head Cap Screws - Full traceabilty, diameter size rolled into the screw head for quick identification
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications

Read More
Check Availability

Catalog page#: 4-3

Frequently Bought Together


IFI 100/107 Top Locknut Grade C 1/2-13

Item#: 80931

Hex Nut Grade 5 Steel 5/16-18

Item#: FA95678

SAE J995C Locknut with Nylon Insert Grade 8 5/8-11

Item#: 53985

Superbutt Connector 22 to 18 AWG Red

Item#: 94727

SAE J995C Locknut with Nylon Insert Grade 8 1/2-13

Item#: 53983

Self-Drilling Screw Hex Head 1/4-14 x 1"

Item#: 2539

Socket Head Cap Screw 18-8 SS 1/4-20 x 3/4"

Item#: 7721

Socket Head Cap Screw Grade 12.9 M4-0.7 x 10mm

Item#: 80493

Socket Head Cap Screw A2 SS M6-1 x 20mm

Item#: 27644

Socket Head Cap Screw 18-8 SS 1/4-20 x 1"

Item#: 7723

Socket Head Cap Screw A2 SS M4-0.7 x 8mm

Item#: 27615

Flat Head Socket Cap Screw Steel #10-24 x 1/2"

Item#: 3600

Product Description

• Full product traceability
• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
Premium Socket Head Cap Screws - Full traceabilty, diameter size rolled into the screw head for quick identification
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications

Technical Specifications

Item#: 3574
Diameter 3/4 "
Thread Pitch 10
Length 2-1/2 "
Material Alloy Steel
Finish Black Oxide
Head Style Socket
Tensile Strength 170,000 PSI
Thread Coarse
Type Socket Head Cap Screw
Key Size 5/8 "
Drive Hex
Size 3/4-10X2-1/2
UNSPSC #: 31161518
TAA Compliant: Yes
Weight: 2.15 lb
