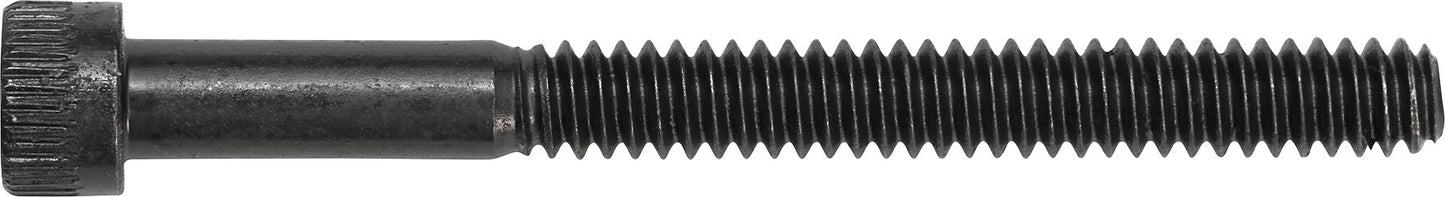

Socket Head Cap Screw, Alloy Steel, Premium Black Oxide Finish, Coarse Thread, 7/64" Hex Key, #6-32 x 1-1/2"
(Pack of
25)
SKU:51694 Item#: 51694
• Full product traceability
• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications
Couldn't load pickup availability
Catalog page#: 4-2
Frequently Bought Together
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Socket Head Cap Screw Alloy Steel 3/8-16 x 1-1/4"
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M12-1.75 x 50mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M10-1.5 x 40mm
Couldn't load pickup availability
Socket Head Cap Screw Alloy Steel 3/8-16 x 1-1/4"
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M12-1.75 x 50mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M10-1.5 x 40mm
Couldn't load pickup availability
Product Description
• Full product traceability• Diameter size rolled into the screw head for quick identification
• High-strength, heat-treated alloy steel
• Black oxide finish for corrosion protection
• Tensile strength: 180,000 PSI (up to and including 1/2" dia.); 170,000 PSI (5/8" dia. and above)
• Conforms to ASME/ANSI B18.3 Specifications
Technical Specifications
| Item#: | 51694 |
|---|---|
| Diameter | #6 |
| Thread Pitch | 32 |
| Length | 1-1/2 " |
| Material | Alloy Steel |
| Finish | Black Oxide |
| Head Style | Socket |
| Tensile Strength | 180,000 PSI |
| Thread | Coarse |
| Type | Socket Head Cap Screw |
| Key Size | 7/64 " |
| Drive | Hex |
| Size | 6-32X1-1/2 |
| UNSPSC #: | 31161518 |
| TAA Compliant: | Yes |
| Weight: | 0.17 lb |
