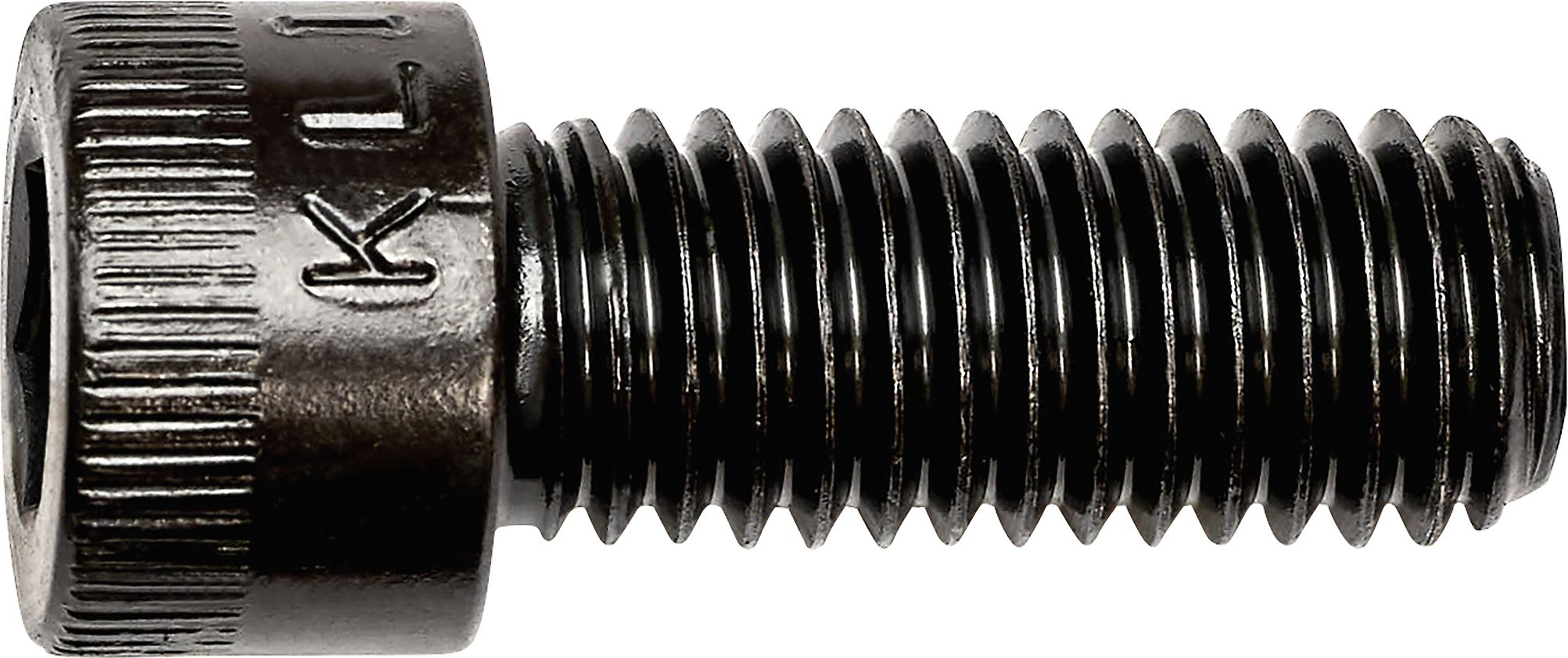

Socket Head Cap Screw Grade 12.9 M8-1.25 x 20mm
(Pack of
25.0)
• Chrome-moly alloy steel, heat-treated
• Black finish
• 1,220 MPa (177,000 PSI) minimum ultimate tensile strength
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 4-14
Frequently Bought Together
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M10-1.5 x 40mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M12-1.75 x 30mm
Couldn't load pickup availability
Socket Head Cap Screw Grade 12.9 M16-2 x 40mm
Couldn't load pickup availability
Button Head Socket Cap Screw Steel #10-24 x 1/2"
Couldn't load pickup availability
Socket Head Cap Screw Alloy Steel 3/4-10 x 4"
Couldn't load pickup availability
Socket Head Cap Screw Alloy Steel 5/16-18 x 3/4"
Couldn't load pickup availability
Product Description
• Chrome-moly alloy steel, heat-treated• Black finish
• 1,220 MPa (177,000 PSI) minimum ultimate tensile strength
Technical Specifications
| Item#: | 80511 |
|---|---|
| Diameter | M8 |
| Thread Pitch | 1.25 mm |
| Length | 20 mm |
| Material | Alloy Steel |
| Finish | Black Oxide |
| Grade | 12.9 |
| Head Style | Socket |
| Tensile Strength | 1,220 MPa |
| Thread | Coarse |
| Type | Socket Head Cap Screw |
| Key Size | 6 mm |
| Drive | Hex |
| Size | M8-1.25X20 |
| UNSPSC #: | 31161518 |
| TAA Compliant: | No |
| Weight: | 0.71 lb |
