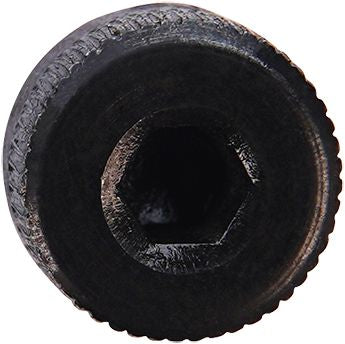

Socket Head Shoulder Screw, Alloy Steel, Black Oxide Finish, 3/8" Shoulder Diameter and 3-3/4" Length, 5/16-18 Thread
(Pack of 10)

SKU:55320 Item#: 55320

Lawson Products

• Heat-treated alloy steel
• Black oxide head and threads, polished steel shoulder
• Class 3A fully-formed threads
• Conforms to ANSI B18.3 and ASTM A574 specifications
• 140,000 PSI minimum tensile strength

Check Availability

Quantity

Catalog page#: 4-7

Frequently Bought Together

Hex Cap Screw Grade 8 Alloy Steel 3/8-16 x 1-1/2"

Hex Nut Grade 8 Steel 5/16-18

Hex Nut Grade 8 Steel 1/2-13

Flat Washer Grade 12 Thru-Hardened Steel M12

Lock Washer Alloy Steel 3/8"

SAE Flat Washer Thru-Hardened Steel 3/8"

Socket Head Shoulder Screw Steel 1/2 x 2-1/4"

Socket Head Shoulder Screw Steel M6 x 50mm

Socket Head Shoulder Screw Steel M10 x 30mm

Socket Head Cap Screw A2 SS M4-0.7 x 8mm

Flat Head Socket Cap Screw Steel #10-24 x 1/2"

Button Head Socket Cap Screw SS M4-0.7 x 8mm

Product Description

• Heat-treated alloy steel
• Black oxide head and threads, polished steel shoulder
• Class 3A fully-formed threads
• Conforms to ANSI B18.3 and ASTM A574 specifications
• 140,000 PSI minimum tensile strength

Technical Specifications

Item#:	55320
Shoulder Diameter	3/8 "
Shoulder Length	3-3/4 "
Material	Alloy Steel
Finish	Black Oxide
Thread Diameter	5/16 "
Thread Pitch	18
Thread Length	1/2 "
Key Size	3/16 "
Tensile Strength	140,000 PSI
UNSPSC #:	31161517
TAA Compliant:	No
Weight:	1.48 lb
