Home Fasteners Socket Head Shoulder Screw Steel M6 x 50mm
Fasteners

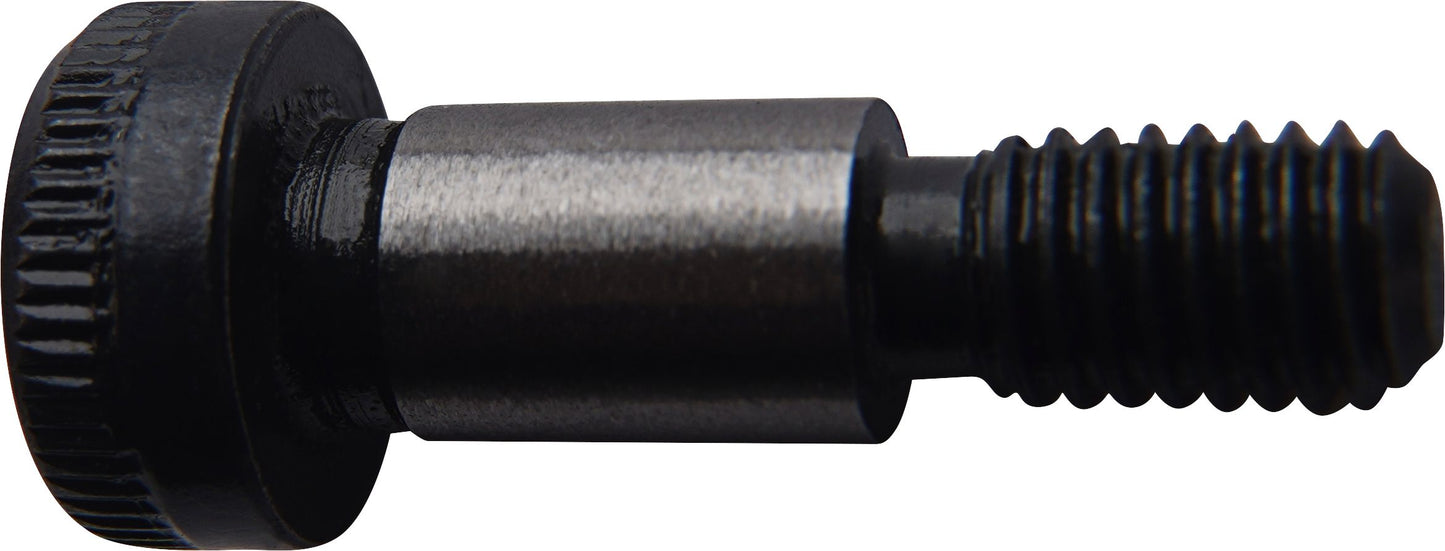

Socket Head Shoulder Screw, Grade 12.9, Alloy Steel, Black Oxide Finish, M6 Shoulder Diameter and 50mm Length, M5-0.8 Thread
(Pack of 5)

Lawson Products

• Polished steel shoulder
• Black oxide head and threads
• Heat-treated alloy steel
• Meets ASME/ANSI B18.3.4M, 1986 ISO 7379, 9481 Grade 12.9

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 4-19

Frequently Bought Together


SAE Flat Washer Thru-Hardened Steel 5/8"

Item#: FA88441

Hex Nut Grade 8 Alloy Steel 5/8-11

Item#: A106

Hex Nut Grade 5 Steel 1/4-20

Item#: FA95677

Hex Cap Screw Property Class 12.9 M20-2.5 x 120mm

Item#: 84506A

Acrysol-CULV Auto Body Degreaser 18oz

Item#: 1573504

CryoBoost Cobalt Drill Bit, 19/64" Dia. W/Flats

Item#: DY83621964

Hex Nut Grade 8 Alloy Steel 3/8-16

Item#: A102

Hex Nut Grade 8 Alloy Steel 1/2-13

Item#: A104

Superbutt Connector 22 to 18 AWG Red

Item#: 94727

Socket Head Shoulder Screw Steel 5/16 x 1/2"

Item#: 85694

Socket Head Shoulder Screw Steel M12 x 20mm

Item#: 56372

Socket Head Shoulder Screw Steel 3/8 x 3"

Item#: 85712

Socket Head Cap Screw Grade 12.9 M8-1.25 x 16mm

Item#: 80510

Button Head Socket Cap Screw SS 1/4-20 x 3/4"

Item#: 52380

Flat Head Socket Cap Screw Steel 5/16-18 x 1"

Item#: 3629

Product Description

• Polished steel shoulder
• Black oxide head and threads
• Heat-treated alloy steel
• Meets ASME/ANSI B18.3.4M, 1986 ISO 7379, 9481 Grade 12.9

Technical Specifications

Item#: 56353
Shoulder Diameter M6
Shoulder Length 50 mm
Material Alloy Steel
Finish Black Oxide
Thread Diameter M5
Thread Pitch 0.8 mm
Thread Length 9.75 mm
Key Size 3 mm
Tensile Strength 1,220 MPa
UNSPSC #: 31161517
TAA Compliant: No
Weight: 0.18 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
