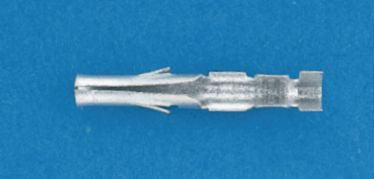

Socket Terminal for Power Connector, 20 to 14 AWG, 12 Amps, 250 Volts, Brass, Tin Plated
(Pack of
10)
• Tin-plated brass terminals
• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
Power Connector Housing 9-Wire Plug
Couldn't load pickup availability
Power Connector Housing 6-Wire Plug
Couldn't load pickup availability
Socket Terminal 30 to 24 AWG
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Clear
Couldn't load pickup availability
Product Description
• Tin-plated brass terminals• 0.093" nylon housings
• Friction lock and positive polarization on all housings
• Interchangeable with Molex 0.093" connectors
• Each connection carries up to 12A (example: A housing with three terminals is rated at 36A)
• UL recognized, File No. E29179• CSA certified, File No. LR-19980• 250V maximum operating voltage
NOTE: Plugs and Receptacles should be replaced in pairs whenever possible to insure that the plug and receptacle will mate properly.
Technical Specifications
| Item#: | 98788 |
|---|---|
| Type | Socket |
| Wire Gauge | 20-14 AWG |
| Maximum Voltage | 250 V |
| Approvals | UL recognized File No. E-29179 and CSA certified, File No. LR-19980 |
| Description | 20 to 14 Gauge |
| Style | Pin and Socket Power Connector Terminals |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.03 lb |
