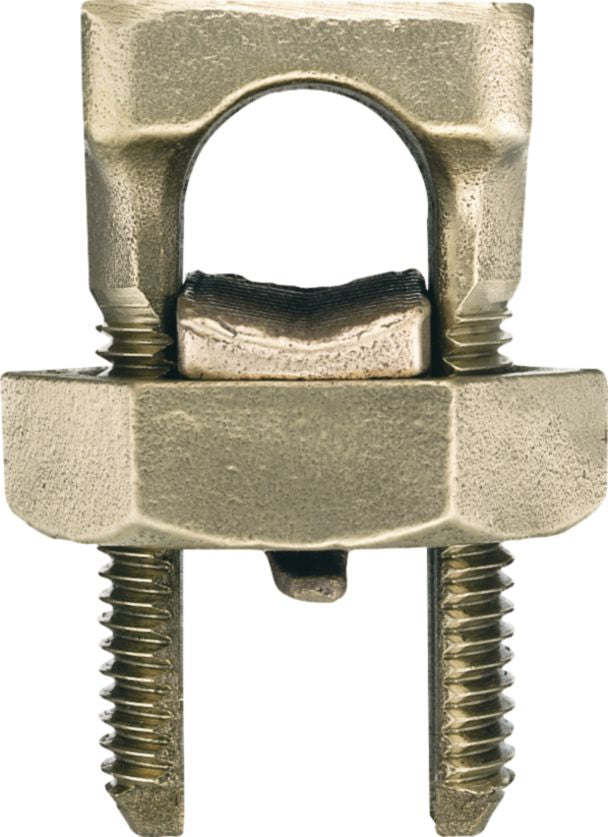

Split Bolt 2-Wire Connector, 2/0 to 500 MCM, Copper Alloy, Head Marking Number IK-500
(Pack of
2)
SKU:98086 Item#: 98086
Two-Wire Split BoltsThree-Wire Split Bolts
• Compact, high-strength, copper alloy split bolts allow maximum pressure to be placed on the conductors
• Highly resistant to seasonal cracking and corrosion
• Precision tooled threads allow maximum torque to assure cool, safe operation
Couldn't load pickup availability
Catalog page#: 17-70
Frequently Bought Together
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Nylon Cable Tie 15.25" Black
Couldn't load pickup availability
Nylon Cable Tie 11.75" Black
Couldn't load pickup availability
Nylon Cable Tie 15.5" Black
Couldn't load pickup availability
Split Bolt 2-Wire Connector 1/0 to 350 AWG
Couldn't load pickup availability
Split Bolt 2-Wire Connector 250 MCM Copper Alloy
Couldn't load pickup availability
Split Bolt 2-Wire Connector 14 to 2 AWG
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Product Description
Two-Wire Split BoltsThree-Wire Split Bolts• Compact, high-strength, copper alloy split bolts allow maximum pressure to be placed on the conductors
• Highly resistant to seasonal cracking and corrosion
• Precision tooled threads allow maximum torque to assure cool, safe operation
Technical Specifications
| Item#: | 98086 |
|---|---|
| Type | 2-Wire |
| Size | 2/0-500 |
| Minimum Tap With One Maximum Main | 8 Solid |
| Wire Ranges Stranded Wire Sizes | 500 MCM |
| Wire Ranges Solid Wire Sizes | 250 MCM |
| Head Marking Number | IK-500 |
| Approvals | UL, CSA |
| Description | Two-Wire |
| Style | Split Bolt Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | No |
| Weight: | 1.8 lb |
