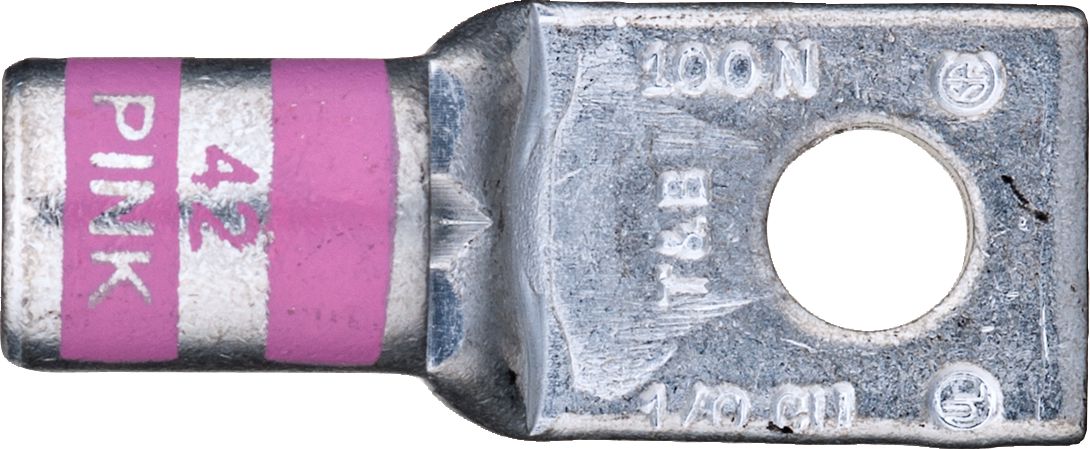

Standard One-Hole Lug 1/0 AWG Pink
(Pack of
6)
• Extruded tubular copper for extremely high electrical conductivity
• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 17-76
Frequently Bought Together
Cable Tie 7.31" Black
Couldn't load pickup availability
MINI Fuse 20A Yellow
Couldn't load pickup availability
ATO/ATC Fuse 15A Blue
Couldn't load pickup availability
Standard Barrel 2-Way Connector 8 AWG
Couldn't load pickup availability
Standard One-Hole Lug 2 AWG Brown
Couldn't load pickup availability
Long Barrel Compression 2-Way Connector 6 AWG
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Lawson Open & Shut Nut & Bolt Loosener, Rust Penetrant, SKU DA6152, 20 oz Aerosol Can
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Clear
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Clear 1/4" Stud
Couldn't load pickup availability
Product Description
• Extruded tubular copper for extremely high electrical conductivity• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Technical Specifications
| Item#: | 17074 |
|---|---|
| Type | One-Hole Lug |
| Wire Gauge | 1/0 AWG |
| Size Navy | 100 |
| Size Weld | 1 |
| Stud Bolt Size NEMA Drilling | 5/16 " |
| Color | Pink |
| Installation Tool 86473 (No. of Crimps Required) | 1 |
| Installation Tool 89555 (No. of Crimps Required) | 1 |
| Style | Color-Coded |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.34 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
