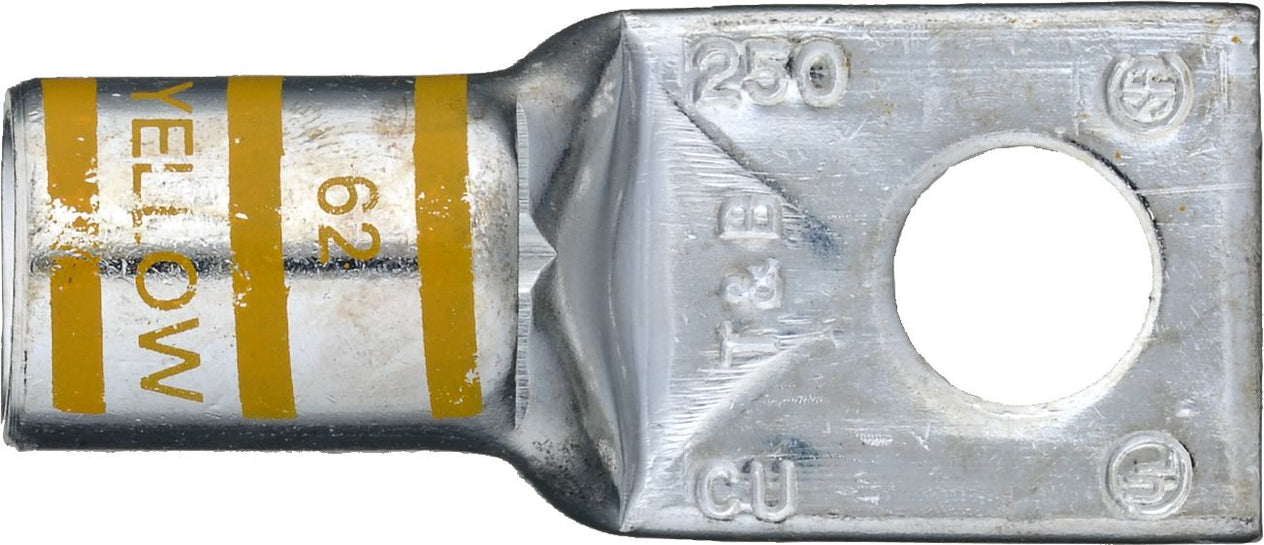

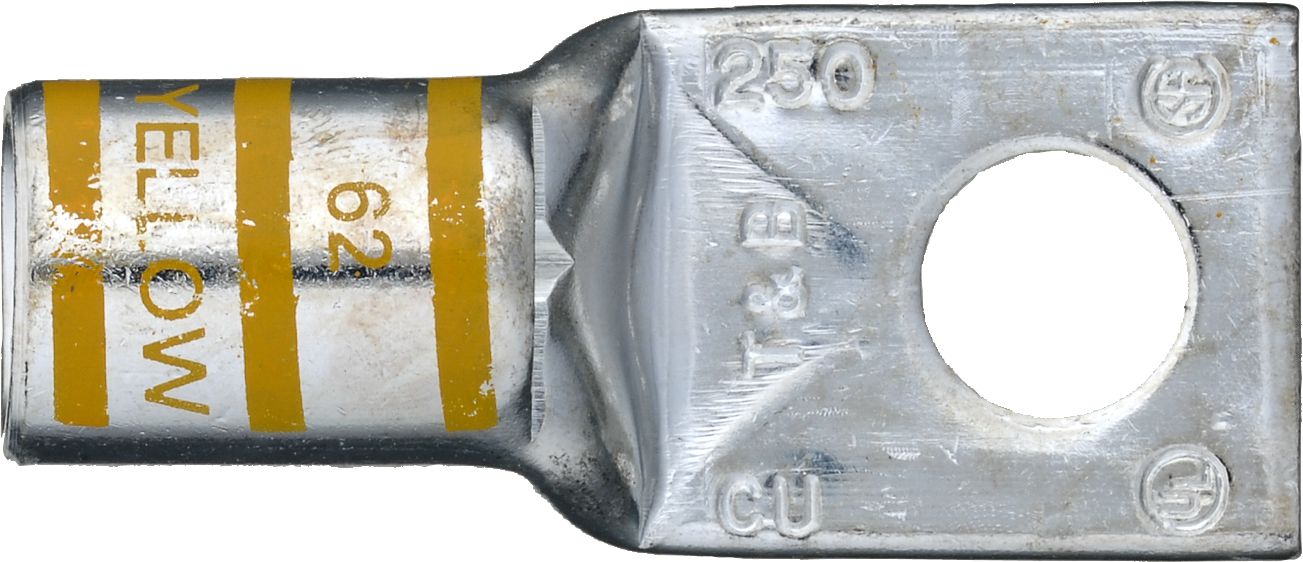

Standard One-Hole Lug 250 MCM Yellow
(Pack of
6)
• Extruded tubular copper for extremely high electrical conductivity
• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 17-76
Frequently Bought Together
Female Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Cable Seal Green 20-18 AWG 20A 12V
Couldn't load pickup availability
Nylon Cable Tie 6" Black
Couldn't load pickup availability
Standard Barrel 2-Way Connector 1 AWG
Couldn't load pickup availability
Insulating Boot 0/1 Thermoplastic Elastomer
Couldn't load pickup availability
Insulating Boot 2 Thermoplastic Elastomer
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Non-Chlorinated Brake Parts Cleaner 14oz
Couldn't load pickup availability
Butt Connector 26 to 22 AWG
Couldn't load pickup availability
Step-Down Butt Connector 12 to 10/16 to 14 AWG
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Product Description
• Extruded tubular copper for extremely high electrical conductivity• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Technical Specifications
| Item#: | 89509 |
|---|---|
| Type | One-Hole Lug |
| Wire Gauge | 250 MCM |
| Size Navy | 250 |
| Stud Bolt Size NEMA Drilling | 1/2 " |
| Color | Yellow |
| Installation Tool 86473 (No. of Crimps Required) | 2 |
| Installation Tool 89555 (No. of Crimps Required) | 2 |
| Style | Color-Coded |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.8 lb |
