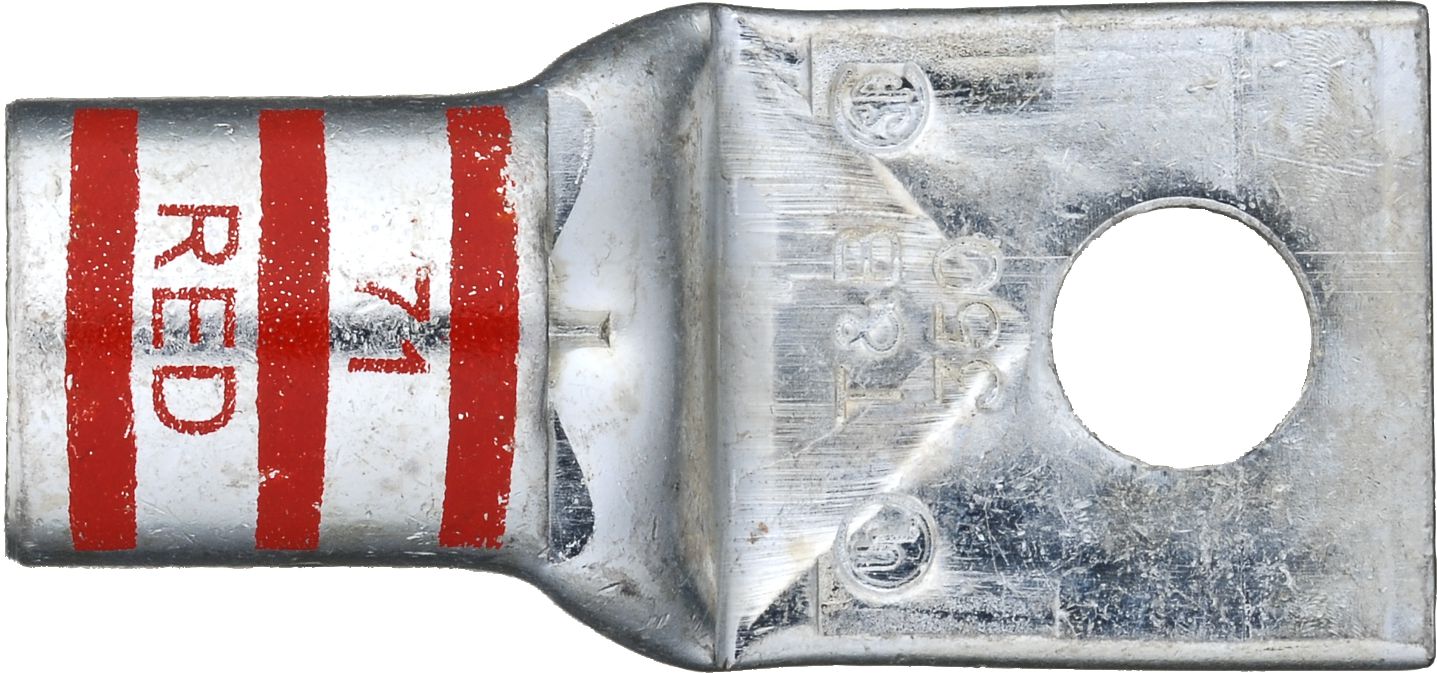

Standard One-Hole Lug, 350 MCM, Red, 1/2" Stud Size
(Pack of
3)
• Extruded tubular copper for extremely high electrical conductivity
• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 17-76
Frequently Bought Together
Superbutt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Superbutt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Standard One-Hole Lug 1 AWG Green
Couldn't load pickup availability
Standard One-Hole Lug 4/0 AWG Yellow
Couldn't load pickup availability
Long Barrel Two-Hole Lug 8 AWG Red
Couldn't load pickup availability
Cross-Over Socket Extension Set, 3/8" Drive, 3 Piece
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
• Extruded tubular copper for extremely high electrical conductivity• Color-coded bands designate the number and location of crimps
• Color-coded connectors and dies insure proper match of connector to corresponding compression tool die
• Seamless connectors are electro-tin-plated for excellent resistance to corrosion
• Instructions included with all connectors
• 600V
NOTE: Use Lawson’s Tru-Crimp® installation tools to assure maximum electrical conductivity and to retain the UL listing of each connector.
Technical Specifications
| Item#: | 89511 |
|---|---|
| Type | One-Hole Lug |
| Wire Gauge | 350 MCM |
| Size Navy | 350 |
| Stud Bolt Size NEMA Drilling | 1/2 " |
| Color | Red |
| Installation Tool 89555 (No. of Crimps Required) | 2 |
| Style | Color-Coded |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.69 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
