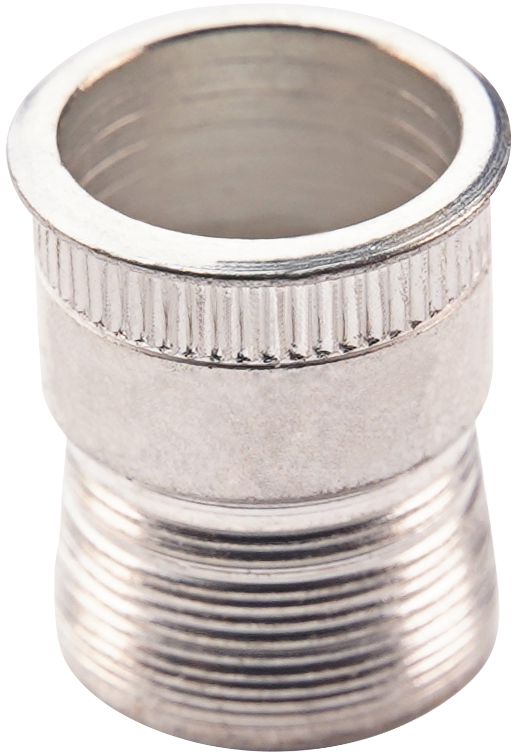

Standard Threaded Insert, Steel, Cadmium Finish, Knurled, Small Flange, Coarse Thread, #10-24, 0.37" Length, 0.2812" Hole
(Pack of
50)
• Works in any thickness of material over 0.030"
• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 6-17
Frequently Bought Together
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Threaded Insert for Soft Material #10-32
Couldn't load pickup availability
Standard Threaded Insert 5/16-24
Couldn't load pickup availability
Standard Threaded Insert M3-0.5
Couldn't load pickup availability
Diamond Grip II Installation Kit #6-32
Couldn't load pickup availability
Diamond Grip II Installation Kit #10-24
Couldn't load pickup availability
Diamond Grip II Threaded Insert 5/16-18
Couldn't load pickup availability
Product Description
• Works in any thickness of material over 0.030"• Simplest, most versatile and functional threaded insert
• Axial knurl under the flange gives superior holding strength
• Can be attached from one side in any thickness of material
• Can be used in sheet metal, castings, fiberglass, plastics, composition board, concrete, wood and other materials
• CAD-plated for added corrosion resistance
• Can be used virtually anywhere there is a need for strong, reusable steel threads in blind, buried or through holes
Technical Specifications
| Item#: | 81086 |
|---|---|
| Diameter | #10 |
| Thread Pitch | 24 |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Standard Threaded Inserts |
| Body Type | Knurled |
| Hole Size | 0.2812 " |
| Pilot Drill Size | 9/32 " |
| Pilot Drill Number | 84735 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 0.306 " |
| Body Diameter | 0.2805 " |
| Length | 0.370 " |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.15 lb |
