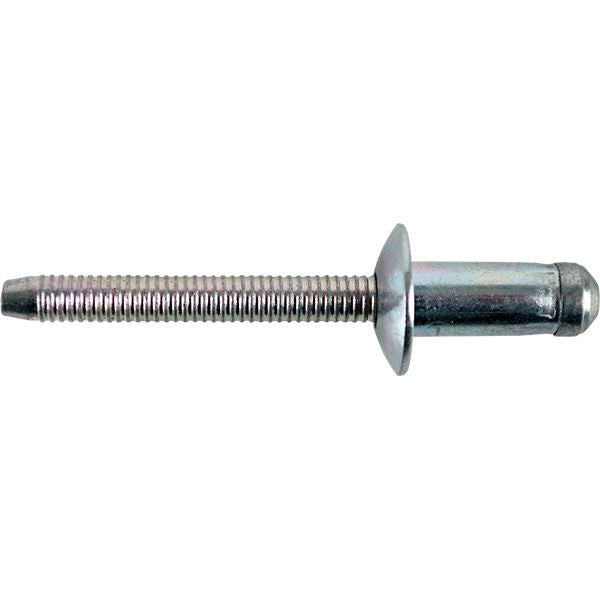

StemLock® Rear-Flange Structural Rivet, Dome Head, Steel, 1/4" Diameter, 0.189 to 0.268" Grip Range, 0.669" Body Length
(Pack of
100)
Dome Head

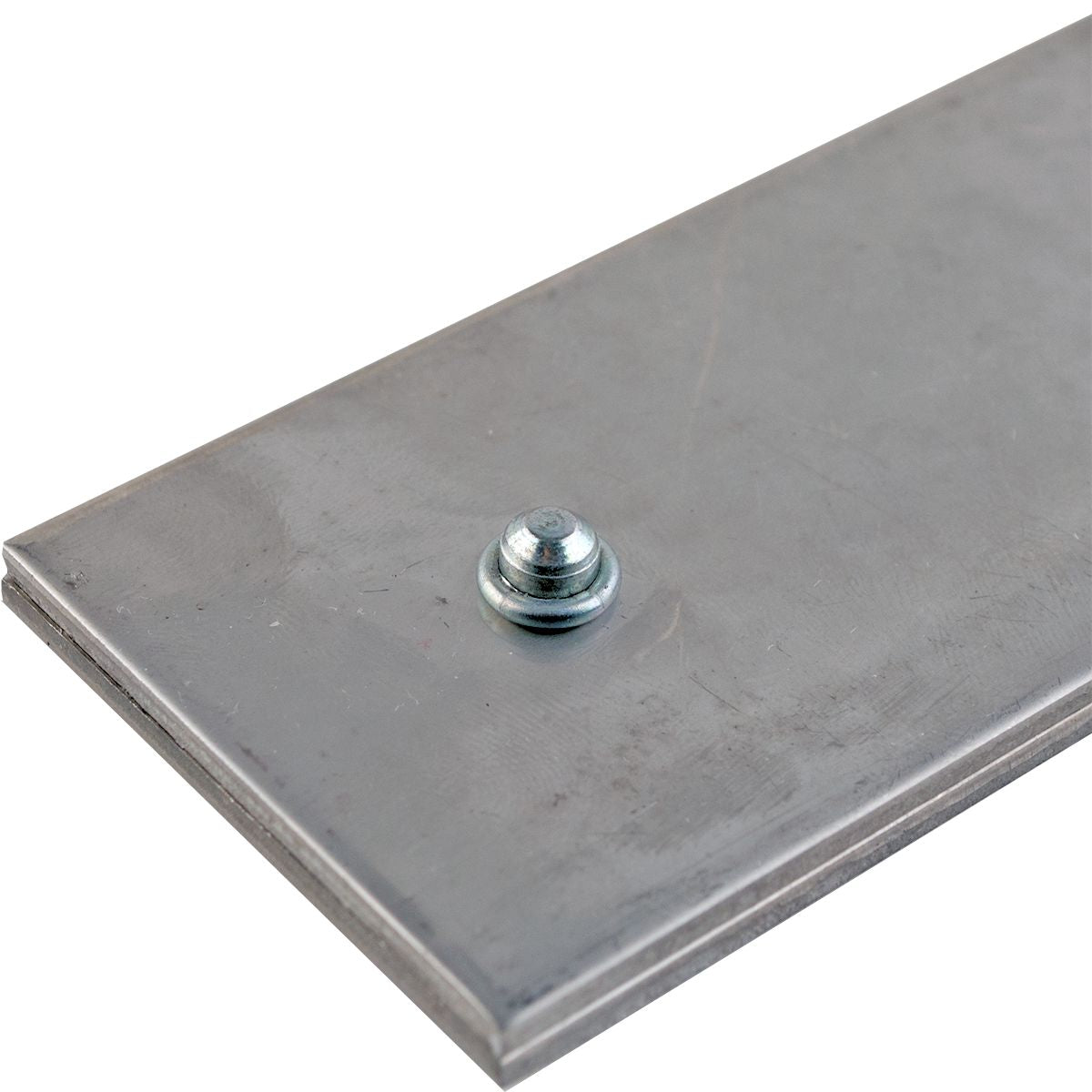

• Provides a rear flange on the back side of the application – perfect for thin sheet metals or imperfect holes
• Rear flange helps prevent material deformation
• The mandrel will break flush with the head and is locked to prevent vibration
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 7-15
Frequently Bought Together
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Open End Rivet Large Flange Head Steel 3/16"
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Structural Rivet Internal Lock Steel 3/16"
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 3/16"
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock SS 1/4"
Couldn't load pickup availability
Product Description
Dome Head• Provides a rear flange on the back side of the application – perfect for thin sheet metals or imperfect holes
• Rear flange helps prevent material deformation
• The mandrel will break flush with the head and is locked to prevent vibration
• Head diameter is twice the body diameter, providing adequate bearing for nearly all applications
Technical Specifications
| Item#: | 1543615 |
|---|---|
| Type | Structural – Rear Flange |
| Head Style | Dome Head |
| Material Body/Mandrel | Steel/Steel |
| Diameter | 1/4 " |
| Grip Range | 0.189 – 0.268 " |
| Hole Size | 0.263 – 0.271 " |
| Head Diameter | 0.530 " |
| Head Height | 0.110 " |
| Body Length | 0.669 " |
| Shear Strength | 2,810 lb |
| Tensile Strength | 1,978 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 1.81 lb |
