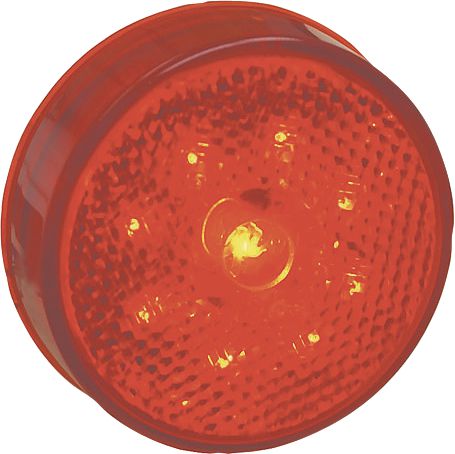

Stop/Tail/Turn Lamp, Hi Count® LED, Red, Round, 13-Diode, 0.13 Amps, 12 Volts, 2-1/2" Diameter Reflex Lens, Polycarbonate
(Pack of
1)
SKU:18201 Item#: 18201
LED lighting is a new generation of lighting products for the trucking industry. LEDs are fast becoming the first choice for new truck installation, as well as for retrofitting existing trucks. The advantages of LED lighting include:
• Cuts maintenance costs – no replacement bulbs. Lamp life is 100,000 hours, ten year warranty
• Potted circuit board – prevents damage from moisture and vibration
• Reduces amp draw – critical for today’s more demanding electrical systems that power additional systems like anti-lock brakes
• Improves safety – LED lamps light up much sooner and brighter. Better light recognition means a vehicle behind you will stop 39 feet sooner at 65 mph
• Many lamp shapes and styles are the same as incandescent lamps – for easy replacement
Lens: 2-1/2" dia.Lamp Depth: 3/4"Material: Polycarbonate, AcrylicFinish: WhiteFMVSS SAE Code: A, P2Volts/Amp: Reflex – 12V – 0.13A
• Hermetic lens-to-housing seal• Uses the same UBS double seal pigtail as the incandescent version for a quick Plug-and-Go® retrofit• Twist-on mounting for easy installation• Concentric, multiple diode layout• Reflex lens
• Fits all popular mountings and grommets
Couldn't load pickup availability
Catalog page#: 23-31
Frequently Bought Together
Connector Housing 20A 2-Wire Shroud
Couldn't load pickup availability
DT Series Receptacle 13A 2 Contacts
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 14 to 6 AWG Black
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 8 AWG Red #10
Couldn't load pickup availability
Trailer End Plug Connector 7-Way
Couldn't load pickup availability
Extreme-Duty Battery Cable Lug 4 AWG Gray 3/8"
Couldn't load pickup availability
Pigtail 6"
Couldn't load pickup availability
Pigtail Economy 3-Wire 90°
Couldn't load pickup availability
Pigtail for White Light™ Work Lamps
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/2"
Couldn't load pickup availability
Product Description
LED lighting is a new generation of lighting products for the trucking industry. LEDs are fast becoming the first choice for new truck installation, as well as for retrofitting existing trucks. The advantages of LED lighting include:• Cuts maintenance costs – no replacement bulbs. Lamp life is 100,000 hours, ten year warranty
• Potted circuit board – prevents damage from moisture and vibration
• Reduces amp draw – critical for today’s more demanding electrical systems that power additional systems like anti-lock brakes
• Improves safety – LED lamps light up much sooner and brighter. Better light recognition means a vehicle behind you will stop 39 feet sooner at 65 mph
• Many lamp shapes and styles are the same as incandescent lamps – for easy replacement
Lens: 2-1/2" dia.Lamp Depth: 3/4"Material: Polycarbonate, AcrylicFinish: WhiteFMVSS SAE Code: A, P2Volts/Amp: Reflex – 12V – 0.13A
• Hermetic lens-to-housing seal• Uses the same UBS double seal pigtail as the incandescent version for a quick Plug-and-Go® retrofit• Twist-on mounting for easy installation• Concentric, multiple diode layout• Reflex lens
• Fits all popular mountings and grommets
Technical Specifications
| Item#: | 18201 |
|---|---|
| Manufacturer Model #: | G1002 |
| Type | Replacement Lamp |
| Color | Red |
| Grote Number | G1002 |
| UNSPSC #: | 25172907 |
| TAA Compliant: | Yes |
| Weight: | 0.08 lb |
