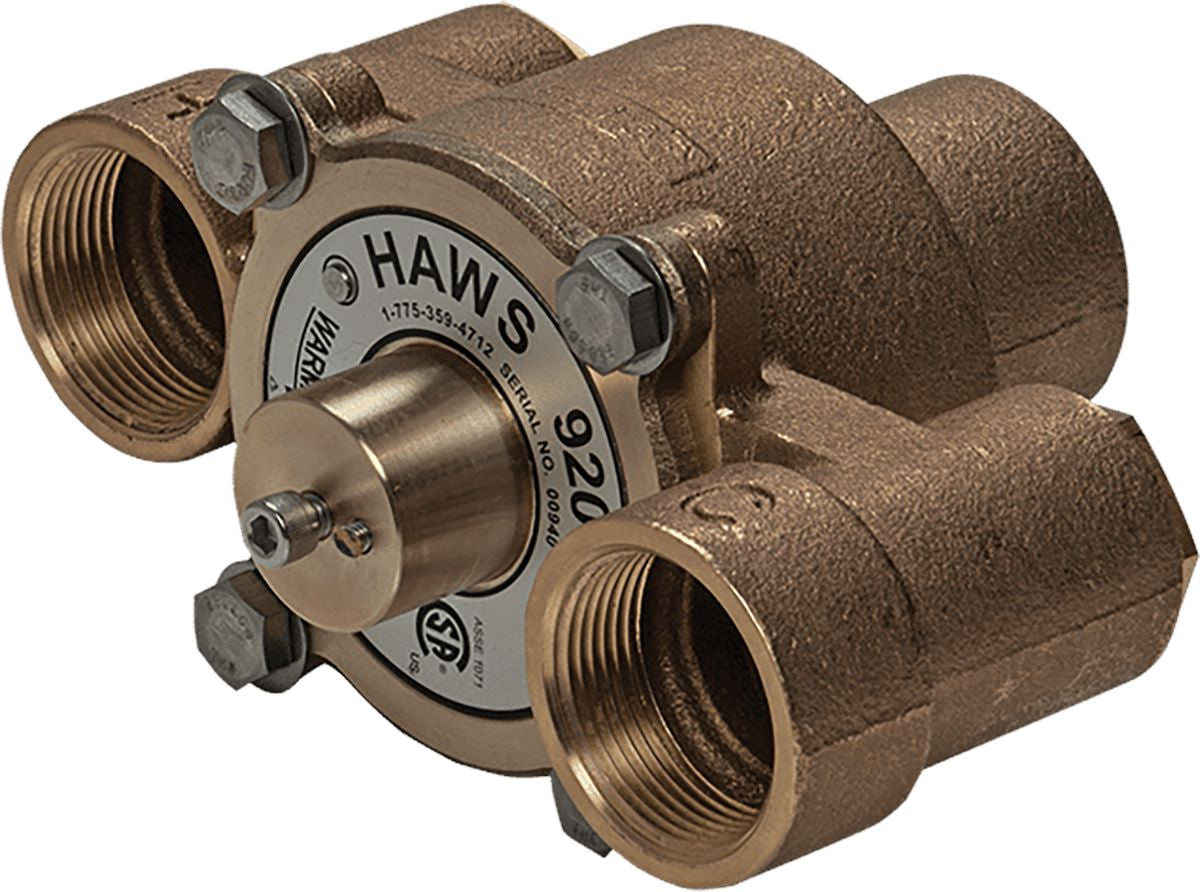

Thermostatic Mixing Valve, Brass, 31 gpm Flow Rate, 1-1/4" Inlet/Outlet NPTF
(Pack of
1)
Thermostatic mixing valve that mixes hot and cold water to supply tempered water to emergency shower and eyewash fixtures requiring flow up to 31 gpm. Unit employs a paraffin filled thermostatic mixing element. Lowest internal pressure drop where supply pressure is low, and a high Cold Water Bypass flow rate of 20 gpm. The improved brass design with a one piece casting uses internal check stops, oversized valve seats, a shuttle design that eliminates valve sticking, and a funnel design to improve temperature control with better mixing at low flow rates. Lime and calcium resistant components are used throughout. The outlet temperature factory setting is 85° F. Maximum operating pressure: 125 psi. Temperature adjustment range 60 - 90° F. Maximum inlet temperature: 180° F. Recommended inlet temperature: 140° F. Minimum inlet temperature: 120° F Inlets 1-1/4" NPT(F). Outlet 1-1/4" NPT(F).
• A flow rate of 1 to 31 gpm (3.8 to 117.3 L)
• Lowest internal pressure drop for this class of valve
• Wax based thermostat technology for fast response time with proven highly reliable temperature control
• Highest Cold Water Bypass flow rate in the industry (65% of rated tepid flow rate)
• Modular brass design with internal check stops
• Over-sized valve seats resist failures caused by foreign matter
• No valve sticking
• A custom funnel design improves temperature control at low flow rates
• Outlet temperature set to 85° F (29° C).
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
WypAll X80 ShopPro Towel 9.1 x 16.8"
Couldn't load pickup availability
Auto-Darkening Panoramic View Welding Helmet
Couldn't load pickup availability
10 Person - Lawson - First Aid Kit - Plastic - ANSI 2021 Class A
Couldn't load pickup availability
Thermostat 1200 Series Coolers
Couldn't load pickup availability
Mounting Plate 6776
Couldn't load pickup availability
Wall Mount Indoor ADA Water Cooler with Bottle Filler
Couldn't load pickup availability
TigerGrip 8 Mil Nitrile Glove Orange Large
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Yellow
Couldn't load pickup availability
Premium Nitrile Gloves, Orange, 6 Mil, Large, Box
Couldn't load pickup availability
Vision Pro Super
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M8
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Red GT Series Extra Heavy Duty Wiper Roll
Couldn't load pickup availability
WypAll X60 Teri Wiper 12.5 x 13.4"
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Blue
Couldn't load pickup availability
Product Description
Thermostatic mixing valve that mixes hot and cold water to supply tempered water to emergency shower and eyewash fixtures requiring flow up to 31 gpm. Unit employs a paraffin filled thermostatic mixing element. Lowest internal pressure drop where supply pressure is low, and a high Cold Water Bypass flow rate of 20 gpm. The improved brass design with a one piece casting uses internal check stops, oversized valve seats, a shuttle design that eliminates valve sticking, and a funnel design to improve temperature control with better mixing at low flow rates. Lime and calcium resistant components are used throughout. The outlet temperature factory setting is 85° F. Maximum operating pressure: 125 psi. Temperature adjustment range 60 - 90° F. Maximum inlet temperature: 180° F. Recommended inlet temperature: 140° F. Minimum inlet temperature: 120° F Inlets 1-1/4" NPT(F). Outlet 1-1/4" NPT(F).• A flow rate of 1 to 31 gpm (3.8 to 117.3 L)
• Lowest internal pressure drop for this class of valve
• Wax based thermostat technology for fast response time with proven highly reliable temperature control
• Highest Cold Water Bypass flow rate in the industry (65% of rated tepid flow rate)
• Modular brass design with internal check stops
• Over-sized valve seats resist failures caused by foreign matter
• No valve sticking
• A custom funnel design improves temperature control at low flow rates
• Outlet temperature set to 85° F (29° C).
Technical Specifications
| Item#: | 1648032 |
|---|---|
| Type | Thermostatic Mixing Valve |
| Material | Brass |
| Width | 3-1/2 " |
| Flow Rate | 31 gal/min |
| Description | Thermostatic Mixing Valve |
| Standards | ASSE 1071, ANSI Z358.1, CSA B125.3 |
| Height | 5-3/8 " |
| Style | Thermostatic Mixing Valve |
| Depth | 7-5/8 " |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181800 |
| TAA Compliant: | Yes |
