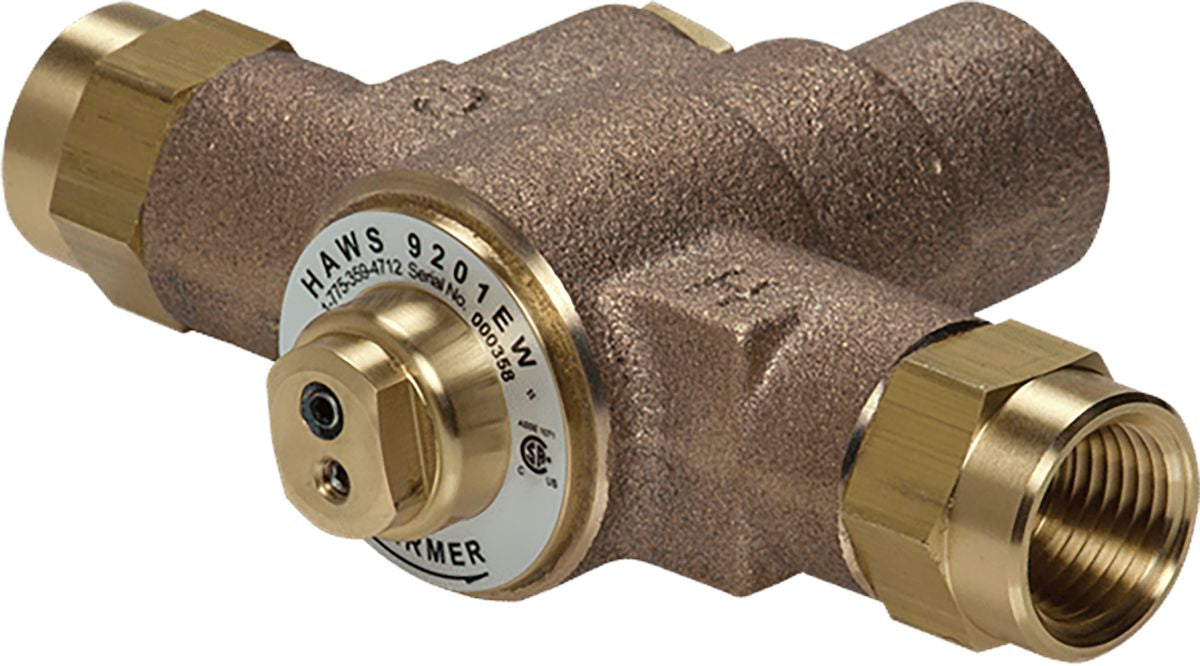

Thermostatic Mixing Valve, Brass, 12 gpm Flow Rate, 1/2" Inlet x 3/4" Outlet NPTF
(Pack of
1)
SKU:1648033 Item#: 1648033
Thermostatic mixing valve that mixes hot and cold water to supply tempered water to emergency shower and eyewash fixtures requiring flow up to 31 gpm. Unit employs a paraffin filled thermostatic mixing element. Lowest internal pressure drop where supply pressure is low, and a high Cold Water Bypass flow rate of 20 gpm. The improved brass design with a one piece casting uses internal check stops, oversized valve seats, a shuttle design that eliminates valve sticking, and a funnel design to improve temperature control with better mixing at low flow rates. Lime and calcium resistant components are used throughout. The outlet temperature factory setting is 85° F. Maximum operating pressure: 125 psi. Temperature adjustment range 60 - 90° F. Maximum inlet temperature: 180° F. Recommended inlet temperature: 140° F. Minimum inlet temperature: 120° F Inlets 1-1/4" NPT(F). Outlet 1-1/4" NPT(F).
• A flow rate of 1 to 31 gpm (3.8 to 117.3 L)
• Lowest internal pressure drop for this class of valve
• Wax based thermostat technology for fast response time with proven highly reliable temperature control
• Highest Cold Water Bypass flow rate in the industry (65% of rated tepid flow rate)
• Modular brass design with internal check stops
• Over-sized valve seats resist failures caused by foreign matter
• No valve sticking
• A custom funnel design improves temperature control at low flow rates
• Outlet temperature set to 85° F (29° C).
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Universal Single-Ply Medium Weight Sorbent Pads
Couldn't load pickup availability
Oil-Only Sorbent Pad
Couldn't load pickup availability
Universal Three-Ply Heavyweight Sorbent Pads
Couldn't load pickup availability
AXION® MSR Showerhead SP829
Couldn't load pickup availability
AXION® MSR Eye/face Wash Head SP65PD
Couldn't load pickup availability
Valve Repair Kit VRK158B
Couldn't load pickup availability
Ear Plug Dispenser
Couldn't load pickup availability
500G Tsunami Grip® Light Coated Gloves
Couldn't load pickup availability
Premium Nitrile Gloves, Orange, 6 Mil, Large, Box
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
Plastic Rotary Drum Pump 20 to 55gal
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Silver
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Green
Couldn't load pickup availability
Product Description
Thermostatic mixing valve that mixes hot and cold water to supply tempered water to emergency shower and eyewash fixtures requiring flow up to 31 gpm. Unit employs a paraffin filled thermostatic mixing element. Lowest internal pressure drop where supply pressure is low, and a high Cold Water Bypass flow rate of 20 gpm. The improved brass design with a one piece casting uses internal check stops, oversized valve seats, a shuttle design that eliminates valve sticking, and a funnel design to improve temperature control with better mixing at low flow rates. Lime and calcium resistant components are used throughout. The outlet temperature factory setting is 85° F. Maximum operating pressure: 125 psi. Temperature adjustment range 60 - 90° F. Maximum inlet temperature: 180° F. Recommended inlet temperature: 140° F. Minimum inlet temperature: 120° F Inlets 1-1/4" NPT(F). Outlet 1-1/4" NPT(F).• A flow rate of 1 to 31 gpm (3.8 to 117.3 L)
• Lowest internal pressure drop for this class of valve
• Wax based thermostat technology for fast response time with proven highly reliable temperature control
• Highest Cold Water Bypass flow rate in the industry (65% of rated tepid flow rate)
• Modular brass design with internal check stops
• Over-sized valve seats resist failures caused by foreign matter
• No valve sticking
• A custom funnel design improves temperature control at low flow rates
• Outlet temperature set to 85° F (29° C).
Technical Specifications
| Item#: | 1648033 |
|---|---|
| Type | Thermostatic Mixing Valve |
| Material | Brass |
| Width | 2-5/8 " |
| Flow Rate | 12 gal/min |
| Description | Thermostatic Mixing Valve |
| Standards | ASSE 1071, ANSI/ISEA Z358.1, CSA B125.3 |
| Height | 5-1/4 " |
| Style | Thermostatic Mixing Valve |
| Depth | 6-1/8 " |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181800 |
| TAA Compliant: | Yes |
