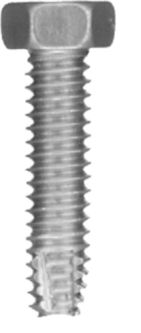

Thread Cutting Screw Type F #10-24 x 1/2"
(Pack of
100)
• Zinc-plated
• Material applications: Aluminum, zinc, die castings, carbon steel, stainless steel, cast iron, brass, plastics, etc.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 5-22
Frequently Bought Together
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 3/8-16
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1-1/4"
Couldn't load pickup availability
Self-Drilling Screw Hex Head #8-18 x 1/2"
Couldn't load pickup availability
Self-Drilling Screw Hex Head 10-16 x 1/2"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
High Solids Paints Gloss Black
Couldn't load pickup availability
Thread Cutting Screw Type 1 #10-24 x 1/2"
Couldn't load pickup availability
Thread Cutting Screw Type F 3/8-16 x 1-1/2"
Couldn't load pickup availability
Thread Cutting Screw Type 1 5/16-18 x 1"
Couldn't load pickup availability
Product Description
• Zinc-plated• Material applications: Aluminum, zinc, die castings, carbon steel, stainless steel, cast iron, brass, plastics, etc.
Technical Specifications
| Item#: | 2480 |
|---|---|
| Diameter | #10 |
| Thread Pitch | 24 |
| Length | 1/2 " |
| Head Style | Hex Washer |
| Point | Type F |
| Finish | Zinc |
| Recommended Drill Size | #17 |
| Material | Steel |
| Type | Thread Cutting Screw |
| Across Flats | 5/16 " |
| Thread | Coarse |
| Size | 10-24X1/2 " |
| UNSPSC #: | 31161507 |
| TAA Compliant: | Yes |
| Weight: | 0.55 lb |
