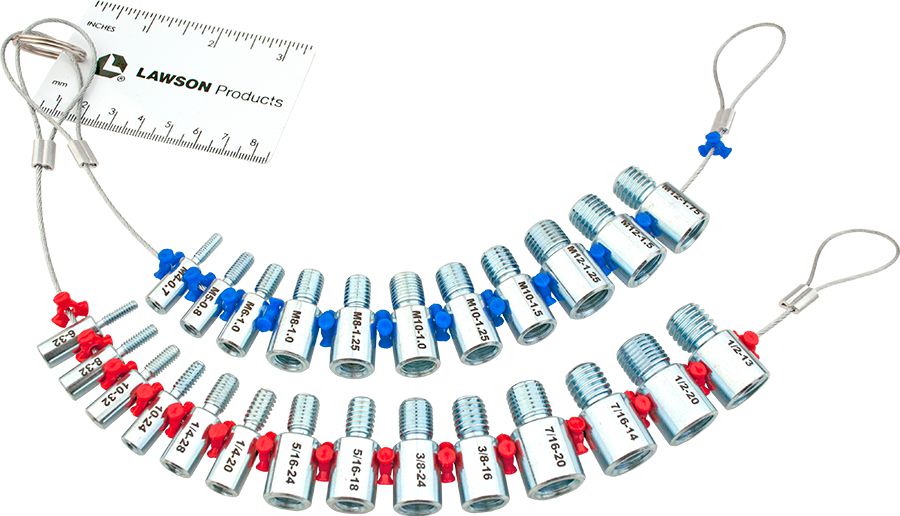

Thread Identifier, #6 - 1/2", M4 - M12, Coarse and Fine Threads
(Pack of 1)

SKU:1510444 Item#: 1510444

Lawson Products

Easy-to-use thread identifier for nuts and bolts (internal and external inch and metric threads).
• Easy-to-read size markings
• Color-coded dividers allow recognition between inch and metric
• Extra-long wire rope for those hard-to-reach places, and loops on each end for convenient hanging
• Equipped with a 3-3/8" (85mm) ruler for measuring small screw, bolt and stud lengths
• Standard Size comes supplied in coarse and fine threads, #6 dia. through 1/2" and M4 through M12
• Large Size comes supplied in coarse and fine threads, 5/8" through 1" and M14 through M24
Standard Size
• Inch thread identifier contain the following sizes: 6-32, 8-32, 10-24, 10-32, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20
• Metric thread identifier contain the following sizes: M4x0.7, M5x0.8, M6x1.0, M8x1.0, M8x1.25, M10x1.0, M10x1.25, M10x1.50, M12x1.25, M12x1.5, M12x1.75

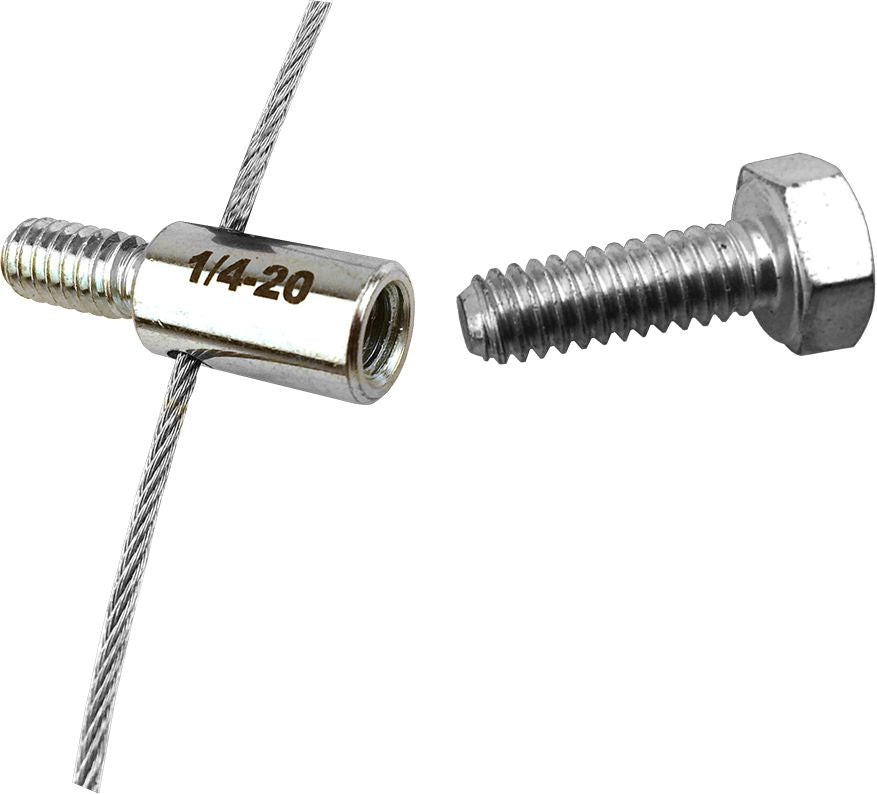

Bolt Thread Identification

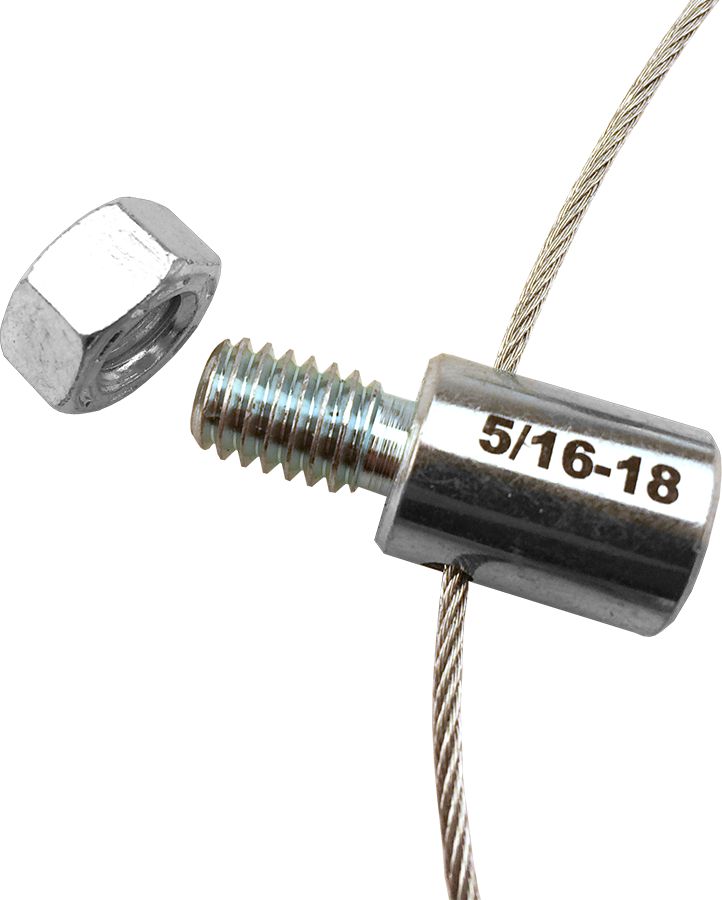

Nut Thread Identification

Check Availability

Quantity

Catalog page#: 14-86

Frequently Bought Together

2.1 Round Head Ratchet 3/8 Drive 168 Tooth

Item#: DY89285105

8" Dual Jaw Adj and Pipe Wrench

Item#: DY89310224

3Pc Adjustable/Pipe Wrench Set

Item#: DY89310230

Thread Identifier, 5/8" - 1", M14 - M24

45798 1/2"X12' Economy Tape Rule

Magnetic Stud Finder

Measuring Tape, Power Return, 25' x 1"

Nylon Cable Tie 4" Black

Waterproof Work Aqua Light 66 LED

Item#: DY80000105

Stepdown Butt Connector 22 to 18/16 to 14 AWG

Jobber Length Drill Bit HSS 1/8"

Universal Socket Set, SAE, 3/8" Drive, 8pc

Item#: DY89320200

21-Piece, 1/4" Shank, 2" Hex Power Bit Set

Product Description

Easy-to-use thread identifier for nuts and bolts (internal and external inch and metric threads).
• Easy-to-read size markings
• Color-coded dividers allow recognition between inch and metric
• Extra-long wire rope for those hard-to-reach places, and loops on each end for convenient hanging
• Equipped with a 3-3/8" (85mm) ruler for measuring small screw, bolt and stud lengths
• Standard Size comes supplied in coarse and fine threads, #6 dia. through 1/2" and M4 through M12
• Large Size comes supplied in coarse and fine threads, 5/8" through 1" and M14 through M24
Standard Size
• Inch thread identifier contain the following sizes: 6-32, 8-32, 10-24, 10-32, 1/4-20, 1/4-28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20, 1/2-13, 1/2-20
• Metric thread identifier contain the following sizes: M4x0.7, M5x0.8, M6x1.0, M8x1.0, M8x1.25, M10x1.0, M10x1.25, M10x1.50, M12x1.25, M12x1.5, M12x1.75
Bolt Thread Identification
Nut Thread Identification

Technical Specifications

Item#:	1510444
Style	Fractional and Metric
Description	Standard
Size	Standard
Type	Thread Identification
Size Range	#6 Dia. - 1/2" and M4 - M12
UNSPSC #:	41111641
TAA Compliant:	No
Weight:	0.89 lb
