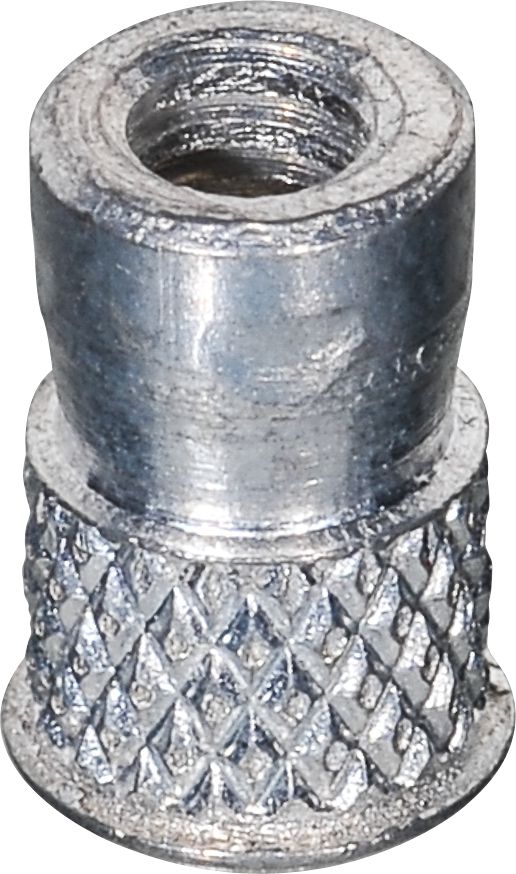

Threaded Insert for Soft Material #6-32
(Pack of
25.0)
• CAD-plated
• These inserts are ideal for use in soft materials such as plastics, fiberglass, wood, structural foam and aluminum – their large knurls bite into softer materials, providing a stronger assembly
*Suggested hole sizes are suitable for most soft materials, but may have to be enlarged for some plastics to prevent splitting. It is recommended that the insert be tested in the application before finalizing the hole size.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 6-17
Frequently Bought Together
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Clear
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Clear
Couldn't load pickup availability
Standard Threaded Insert 3/8-16
Couldn't load pickup availability
Standard Threaded Insert M3-0.5
Couldn't load pickup availability
Threaded Insert for Soft Material 5/16-18
Couldn't load pickup availability
Diamond Grip II Threaded Insert 5/16-18
Couldn't load pickup availability
Diamond Grip II Threaded Insert #10-24
Couldn't load pickup availability
Diamond Grip II Threaded Insert 3/8-16
Couldn't load pickup availability
Product Description
• CAD-plated• These inserts are ideal for use in soft materials such as plastics, fiberglass, wood, structural foam and aluminum – their large knurls bite into softer materials, providing a stronger assembly
*Suggested hole sizes are suitable for most soft materials, but may have to be enlarged for some plastics to prevent splitting. It is recommended that the insert be tested in the application before finalizing the hole size.
Technical Specifications
| Item#: | 95970 |
|---|---|
| Diameter | #6 |
| Thread Pitch | 32 |
| Thread | Coarse |
| Flange Type | Small Flange |
| Type | Soft Material Threaded Inserts |
| Body Type | Diamond Knurled |
| Hole Size | 0.234 " |
| Pilot Drill Size | 15/64 " |
| Pilot Drill Number | 84732 |
| Material | Carbon Steel |
| Finish | CAD-Plated |
| Head Diameter | 0.255 " |
| Body Diameter | 0.233 " |
| Length | 0.370 " |
| UNSPSC #: | 31162802 |
| TAA Compliant: | Yes |
| Weight: | 0.06 lb |
