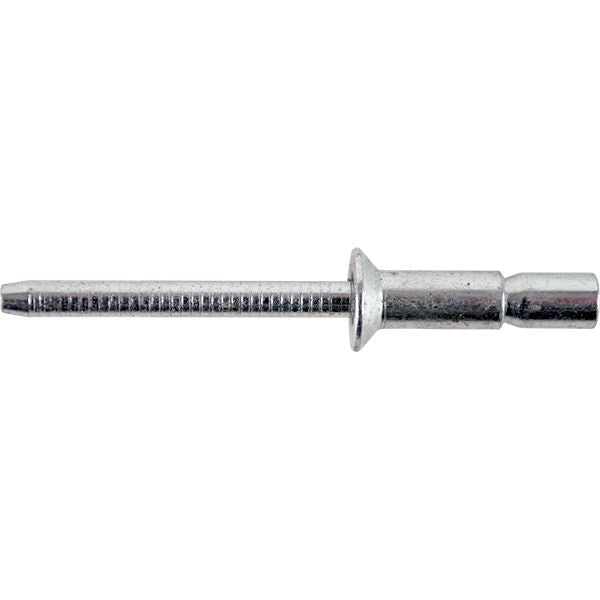

Tigerbolt® Structural Rivet External Lock 1/4"
(Pack of
50.0)
100° Countersunk Head
• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in the manufacturing or repair of truck bodies
• Interchangeable with Monobolts®
• Ideal for applications where a flush appearance is required
• A special nosepiece is required to install External Locking Structural Rivets
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 7-19
Frequently Bought Together
SAE J995C Locknut with Nylon Insert Grade 8 1/2-13
Couldn't load pickup availability
Self-Drilling Screw Hex Head 1/4-14 x 1"
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/8"
Couldn't load pickup availability
Solid Rivet Brazier Head Hard Aluminum 3/16"
Couldn't load pickup availability
Multi-Grip Rivet Large Flange Head Aluminum 3/16"
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 1/4-20
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 3/16"
Couldn't load pickup availability
Tigerbolt® Structural Rivet External Lock 3/16"
Couldn't load pickup availability
Structural Rivet Internal Lock Aluminum 3/16"
Couldn't load pickup availability
Product Description
100° Countersunk Head• Locking feature is visible after the rivet is installed
• The mandrel is retained within the shear plane providing high strength under shear loads
• The external lock ensures positive mandrel retention which results in high strength under tensile loads
• Typically used in the manufacturing or repair of truck bodies
• Interchangeable with Monobolts®
• Ideal for applications where a flush appearance is required
• A special nosepiece is required to install External Locking Structural Rivets
Technical Specifications
| Item#: | 1543630 |
|---|---|
| Type | Structural – External Lock |
| Head Style | 100° Countersunk Head |
| Material Body/Mandrel | Steel/Steel |
| Diameter | 1/4 " |
| Grip Range | 0.125 – 0.500 " |
| Hole Size | 0.261 – 0.276 " |
| Drill Size | G |
| Head Diameter | 0.420 " |
| Head Height | 0.070 " |
| Body Length | 0.547 " |
| Shear Strength | 2,675 lb |
| Tensile Strength | 2,360 lb |
| UNSPSC #: | 31162201 |
| TAA Compliant: | No |
| Weight: | 0.9 lb |
