Tite-Seal II Cord and Cable Grip PG-9
(Pack of
10.0)
• Weatherproof – Water-resistant seal helps protect connections from frequent washdowns

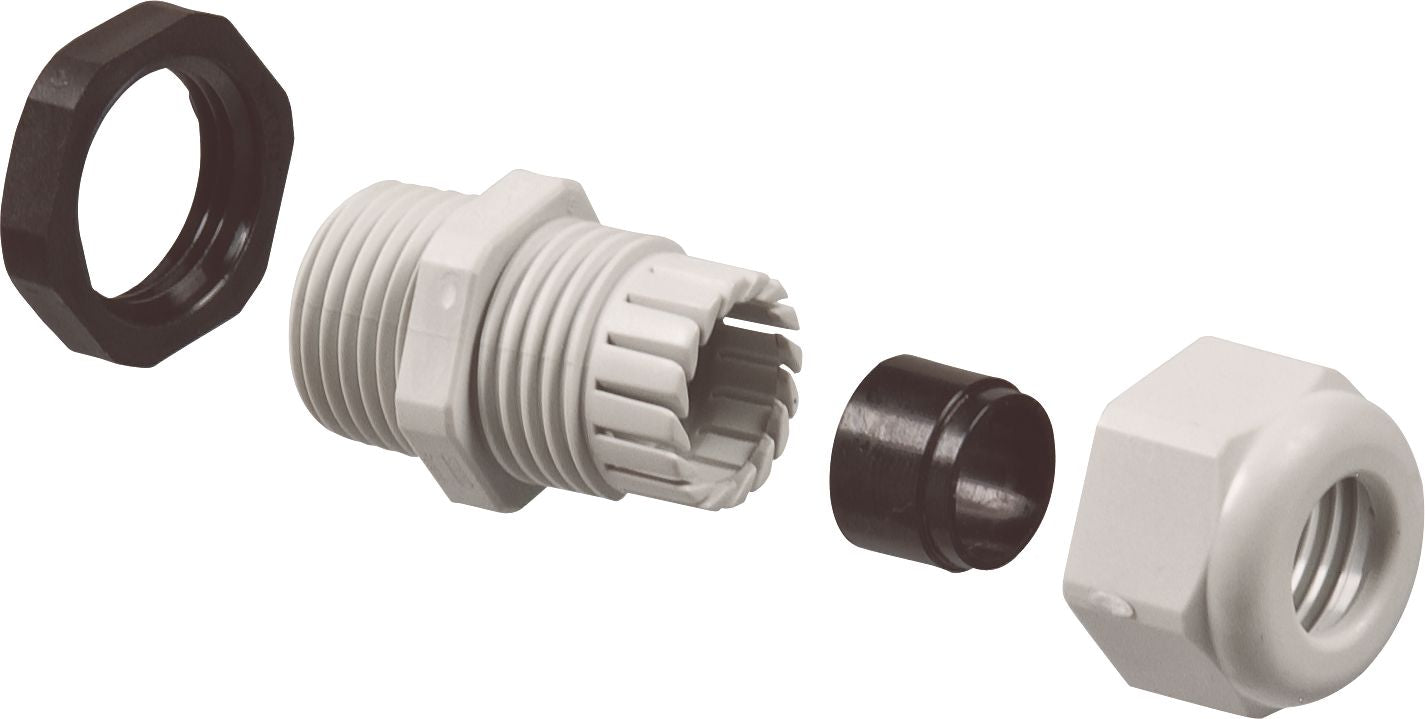

• Durable – Roton™ cap nut and body combines with neoprene seal for exceptional strength and durability

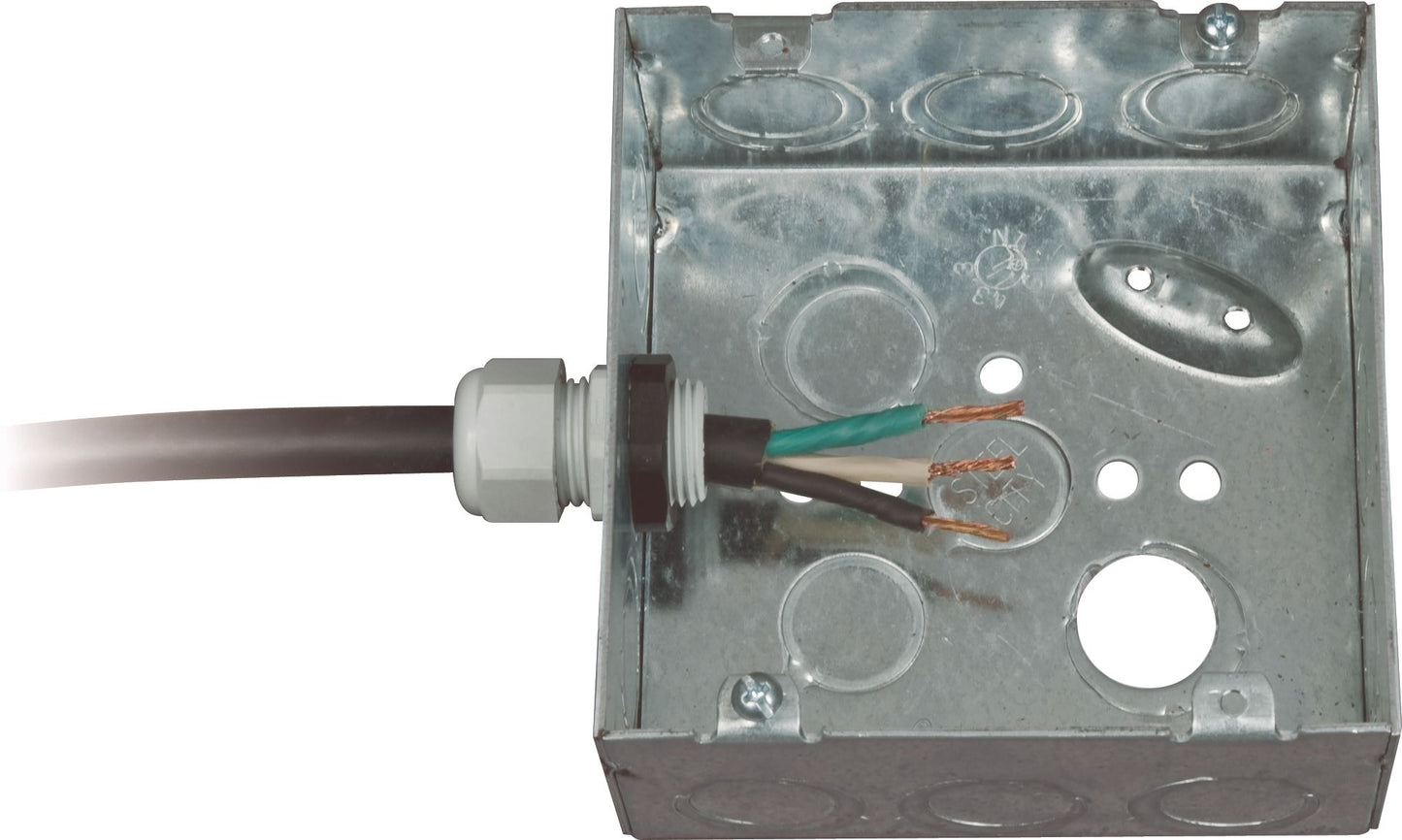

• Strong Grip – Internal segmented flange and ratchet lock hold wire or cable secure to panel box
• Strain Relief – Unique segmented flange provides exceptional strain and tension relief for the cable or cord
Technical Information
• Voltage rating: 600V maximum at 221°F (105°C)
• Temperature range: –40°F to +231°F (–40°C to +110°C)
Applications
• Enclosures
• T-stands
• Foot switches
• Conveyors
• Hoist and crane pendants
• Processing equipment
NOTE: Maximum voltage rating in USA 600V; in Canada 32V.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog Page#: 17-85
Frequently Bought Together
Socket Terminal Contact 16-14 AWG
Couldn't load pickup availability
Connector Housing 20A 2-Wire Shroud
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 2/0 AWG Black 3/8"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/4-20
Couldn't load pickup availability
Hex Nut Grade 8 Steel 5/16-18
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 1/2-13
Couldn't load pickup availability
Tite-Seal II Cord and Cable Grip PG-7
Couldn't load pickup availability
Tite-Seal II Cord and Cable Grip PG-16
Couldn't load pickup availability
Tite-Seal II Cord and Cable Grip PG-13
Couldn't load pickup availability
Heat Shrink Tubing 12 to 6 AWG Clear
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.5" ID 25'
Couldn't load pickup availability
Heat Shrink Tubing 12 to 10 AWG Yellow
Couldn't load pickup availability
Product Description
• Weatherproof – Water-resistant seal helps protect connections from frequent washdowns• Durable – Roton™ cap nut and body combines with neoprene seal for exceptional strength and durability
• Strong Grip – Internal segmented flange and ratchet lock hold wire or cable secure to panel box
• Strain Relief – Unique segmented flange provides exceptional strain and tension relief for the cable or cord
Technical Information
• Voltage rating: 600V maximum at 221°F (105°C)
• Temperature range: –40°F to +231°F (–40°C to +110°C)
Applications
• Enclosures
• T-stands
• Foot switches
• Conveyors
• Hoist and crane pendants
• Processing equipment
NOTE: Maximum voltage rating in USA 600V; in Canada 32V.
Technical Specifications
| Item#: | P40590 |
|---|---|
| Wire Diameter | 0.160 - 0.315 " |
| Wire or Cable Size Accommodated | THW/AWM/MTW-12-8 AWG, THHN-8-2 AWG, SJO-18/2 |
| Hole Diameter | 0.599 " |
| Knockout Size | 3/8 " |
| Threaded Hole Size | PG-9 |
| Voltage Rating | 600 V |
| Temperature Range | -40 to 231 °F |
| Approvals | UL, CSA |
| Style | Tite-Seal II Cord and Cable Grips |
| Type | Strain Relief Connectors |
| UNSPSC #: | 39121719 |
| TAA Compliant: | Yes |
| Weight: | 0.2 lb |
