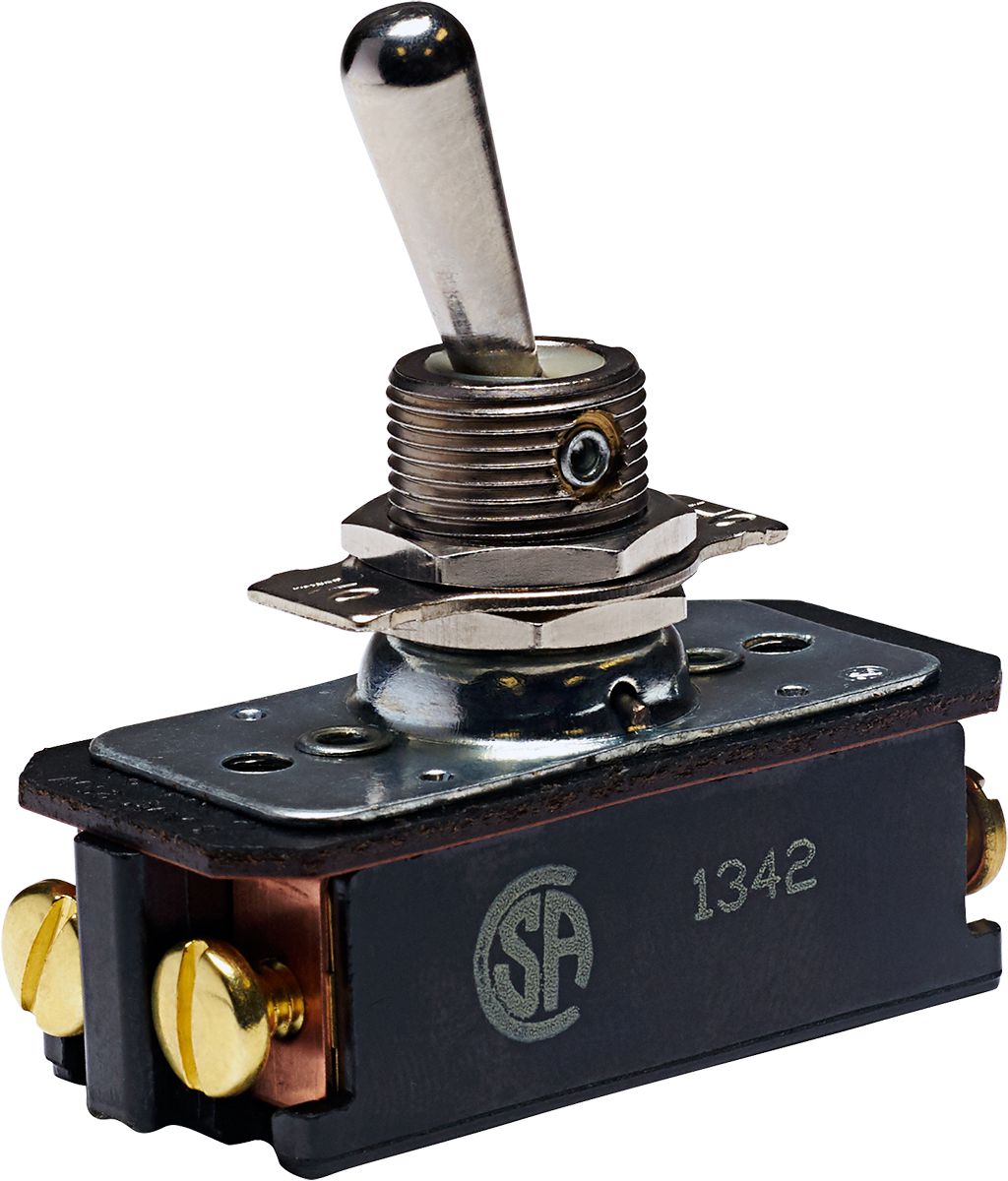

Toggle Switch, Single Pole Single Throw, 16 Amps at 125 Volts/8 Amps at 250 Volts, 2 Screw Terminal, Off-On
(Pack of
1)
SKU:90384 Item#: 90384
• Self-cleaning, self-wiping contacts
• Quick-make, quick-break contact mechanism
• Keyway (0.071"W x 0.038"D) provides anti-rotation feature
• 15/32" mounting stem dia.
Couldn't load pickup availability
Catalog page#: 17-126
Frequently Bought Together
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
MINI Fuse 30A Green
Couldn't load pickup availability
Cable Seal Green 20-18 AWG 20A 12V
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Stepdown Butt Connector 16 to 14/12 to 10 AWG
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Rocker Switch SPST 20A 12V On-Red/Off-Clear
Couldn't load pickup availability
Miniature Toggle Switch SPDT 6A 125V On-Off-On
Couldn't load pickup availability
Miniature Toggle Switch SPDT 6A 125V On-None-On
Couldn't load pickup availability
Industrial Duty Plug 15A 125V
Couldn't load pickup availability
Thermoplastic Connector 2 Pole 3 Wire 15A 125V
Couldn't load pickup availability
Toggle Switch Faceplate
Couldn't load pickup availability
Product Description
• Self-cleaning, self-wiping contacts• Quick-make, quick-break contact mechanism
• Keyway (0.071"W x 0.038"D) provides anti-rotation feature
• 15/32" mounting stem dia.
Technical Specifications
| Item#: | 90384 |
|---|---|
| Style | Industrial Toggle Switches |
| Pole | Single |
| Throw | Single |
| Terminal Connection | 2 Screws |
| Switch Positions | Off - On |
| Mounting Stem Diameter | 15/32 " |
| Electrical Rating Amps at Given Voltage (AC or DC Current) | 16A at 125V; 8A at 250V; 1 hp at 125V |
| Approvals | UL, CSA |
| Type | Switches |
| UNSPSC #: | 39122200 |
| TAA Compliant: | Yes |
| Weight: | 0.08 lb |
