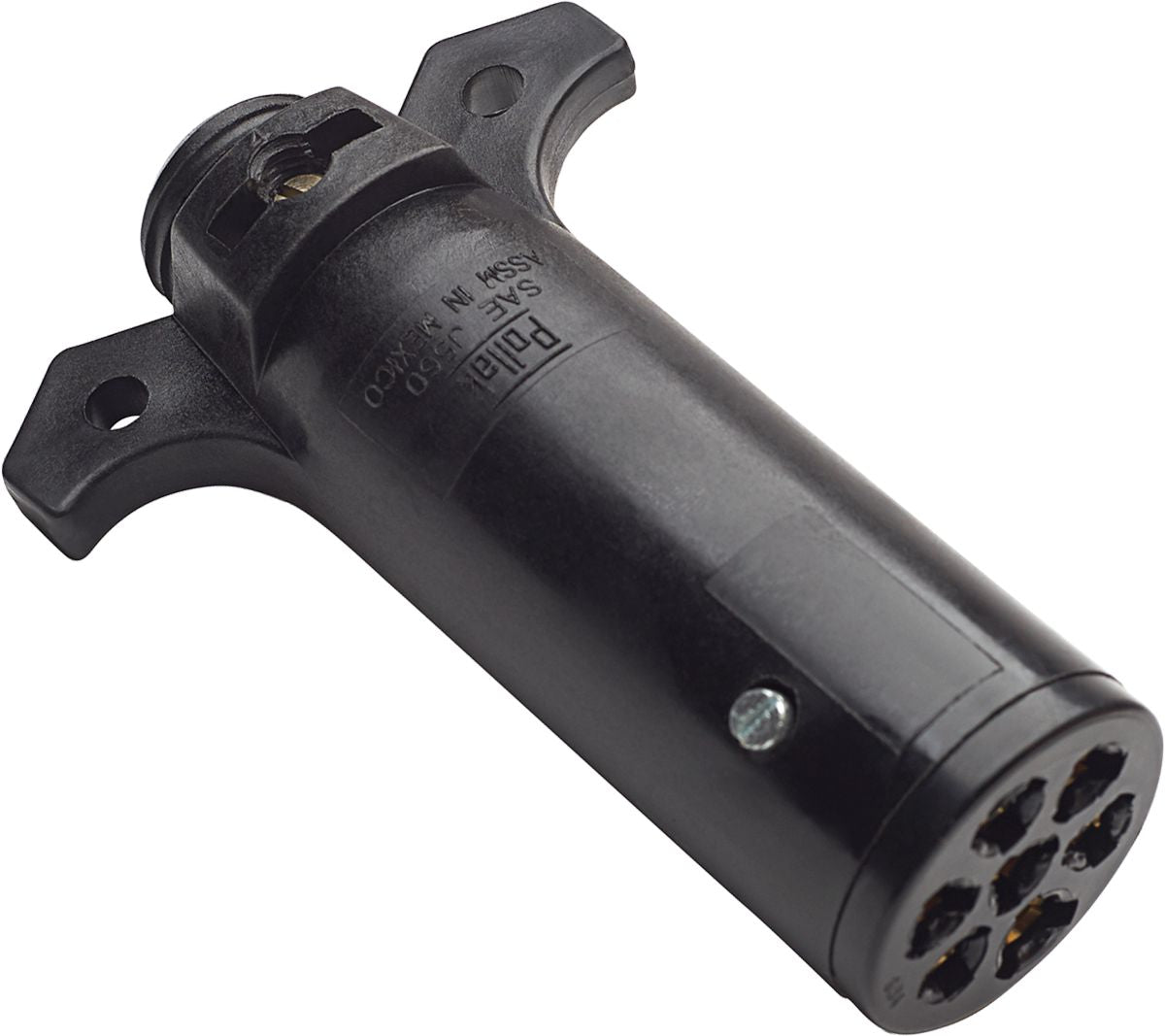

7-Way Trailer Plug Connector, 16 - 10AWG Wire (8AWG Ground), Heavy-duty, Lightweight
(Pack of
1)
Heavy-duty, lightweight, non-corrosive nylon body
Unique cable clamp has extra width for support and to prevent chafing
Finger grips are integrated in body of plug and will never shake loose
Can be used with Die-Cast Sockets
Cable seal prevents moisture from entering plug
Exceeds FMVSS-121 and SAE J560c specifications Will accept 16 to 10 Ga. wire and 8 Ga. ground wire Plug-in wire terminations Solid pin design Interchangeable with Berg, Cole-Hersee and ATA
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 23-22
Frequently Bought Together
Energizer® AA Alkaline Battery 1.5V
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
ATO/ATC Fuse 30A Green
Couldn't load pickup availability
Pin Contact 14-12 AWG Size 12
Couldn't load pickup availability
Terminal Housing 20A 12V 6-Wire Tower
Couldn't load pickup availability
Terminal Housing 20A 12V 6-Wire Shroud
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M12
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Lock Washer Alloy Steel 3/8"
Couldn't load pickup availability
Trailer Termination Socket-Ring/Spade
Couldn't load pickup availability
Trailer Receptacle 7-Way 20A
Couldn't load pickup availability
Trailer Receptacle 7-Way 15A
Couldn't load pickup availability
Product Description
Heavy-duty, lightweight, non-corrosive nylon body Unique cable clamp has extra width for support and to prevent chafing
Finger grips are integrated in body of plug and will never shake loose
Can be used with Die-Cast Sockets
Cable seal prevents moisture from entering plug
Exceeds FMVSS-121 and SAE J560c specifications Will accept 16 to 10 Ga. wire and 8 Ga. ground wire Plug-in wire terminations Solid pin design Interchangeable with Berg, Cole-Hersee and ATA
Technical Specifications
| Item#: | 53677 |
|---|---|
| Wire Gauge | 16 - 10 Gauge; 8 Gauge Ground |
| Size | 7 WAY |
| Replacement Interior Part Number | 53679 |
| Specifications | FMVSS-121 and SAE J560c |
| Description | Plug |
| Style | Seven Way Plug |
| Type | Tractor-Trailer Connectors |
| UNSPSC #: | 31163103 |
| TAA Compliant: | No |
| Weight: | 0.39 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
