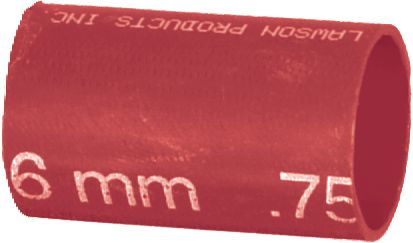

Tru-Shrink Heat Shrink Tubing, 2 to 4/0 AWG, Red, 9" Length, 1.1" ID Before and 0.375" ID After Shrinkage, 3:1 Shrink Ratio
(Pack of
4)
SKU:87752 Item#: 87752
Insulate and protect larger electrical wires with this heat shrink tubing. Designed to fit over thick electrical wires and ideal for applications like motor control, power distribution, and large appliance wiring. The tubing shrinks tightly around the wire to provide protection against moisture, dust, chemicals and other environmental factors that could cause damage. Manufactured for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present.
• 3:1 shrink ratio
• Heat-activated adhesive liner surrounds material and produces a watertight seal
• Non-corrosive with excellent fluid and fungus resistance – non-nutrient, inert
• Meets UL Flammability Test Specification 94V2 and UL Specification 486D
• Elongation: 425%
• Minimum tensile strength: 1,542 PSI
• Minimum dielectric strength: 275V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 194°F (90°C)
• Longitudinal change: 15% maximum, less than 5% typical
• Rated at 600V
• Designed for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Couldn't load pickup availability
Catalog page#: 17-30
Frequently Bought Together
Stepdown Butt Connector 24 to 22/22 to 18 AWG
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
Couldn't load pickup availability
3/8 x 3'' Red Thermapod Sealflex Heat Shrink Tube
Couldn't load pickup availability
Adhesive Heat Shrink Tubing 16 to 8 AWG Clear/Blue
Couldn't load pickup availability
Heat Shrink Tubing 16 to 14 AWG Clear
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Hex Nut Grade 5 Steel 3/8-16
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.625" ID 25'
Couldn't load pickup availability
Vinyl Electrical Tape Red 3/4" x 66'
Couldn't load pickup availability
Tru-Shrink Heat Shrink Tubing 4/0 to 400 MCM Black
Couldn't load pickup availability
Product Description
Insulate and protect larger electrical wires with this heat shrink tubing. Designed to fit over thick electrical wires and ideal for applications like motor control, power distribution, and large appliance wiring. The tubing shrinks tightly around the wire to provide protection against moisture, dust, chemicals and other environmental factors that could cause damage. Manufactured for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present.• 3:1 shrink ratio
• Heat-activated adhesive liner surrounds material and produces a watertight seal
• Non-corrosive with excellent fluid and fungus resistance – non-nutrient, inert
• Meets UL Flammability Test Specification 94V2 and UL Specification 486D
• Elongation: 425%
• Minimum tensile strength: 1,542 PSI
• Minimum dielectric strength: 275V/mil
• Low-temperature flexibility: Four hours at –67°F (–55°C)
• Maximum continuous operating temperature: 194°F (90°C)
• Longitudinal change: 15% maximum, less than 5% typical
• Rated at 600V
• Designed for use in harsh maintenance applications where abrasion, heat, fluids and fungus are present
Wire gauge coverage is approximate due to the wide variance of wire thicknesses.
Technical Specifications
| Item#: | 87752 |
|---|---|
| Type | Pre-Cut |
| Style | Heavy Wall |
| Wire Gauge Coverage | 2-4/0 AWG |
| Length | 9 " |
| Color | Red |
| I.D. Before Shrinkage | 1.10 " |
| I.D. After Shrinkage | .375 " |
| Shrink Ratio | 3 to 1 |
| Wall Thickness After Shrinkage | 0.120 " |
| Voltage Rating | 600 V |
| Temperature Rating | 194 °F |
| Elongation | 425 % |
| Tensile Strength | 1,542 PSI |
| Approvals | UL, CSA |
| UNSPSC #: | 39121723 |
| TAA Compliant: | Yes |
| Weight: | 0.28 lb |
