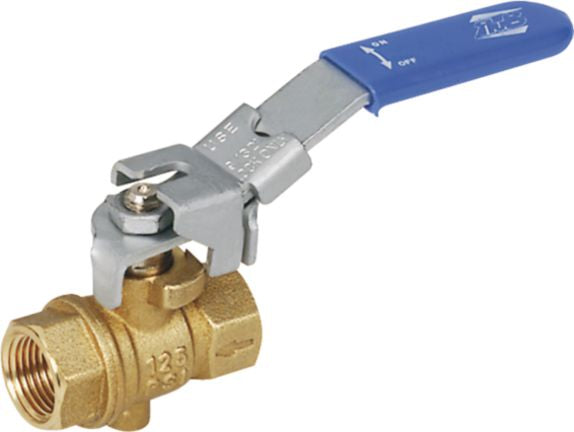

Vented Forged Body Ball Valve with Lockout, Brass, 1 x 1", Female NPT x Female NPT, 200PSI
(Pack of
1)
SKU:63151 Item#: 63151
• Built-in lockout feature
• Accepts padlocks with a 9/32" shackle diameter
• Vented to relieve downstream pressure
• No metal-to-metal moving parts
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome-plated brass ball for longer life
• Travel stops on body to avoid stresses at stem
• Hot forged, sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
• The valve body includes a tapped downstream depressurization venting outlet to direct exhaust air and assemble mufflers for noise control
• Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
• Full port to DIN 3357 for maximum flow
• NPT taper ANSI B.1.20.1 female by female threads
• Blowout-proof nickel plated brass stem
• Pure virgin PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
• Geomet® carbon steel lockable handle patent no. 7074-B/90 with thick PVC dip coating for thermal and electrical protection
• Handle removable with valve in service
• Glass-filled pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 200 PSI
• Operating temperature: 15°F to 210°F
• Approvals: Helps meet OSHA regulations
Applications:
• Pneumatic lines
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 9-24
Frequently Bought Together
Pipe Street Elbow Brass 45° 1/2-14 x 1/2-14
Couldn't load pickup availability
Push-to-Connect Union, Nickel-Plated Brass/PBT Resin, 6 x 6mm
Couldn't load pickup availability
Hose Clamp 304 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Master Series Penlight Flashlight
Couldn't load pickup availability
Product Description
• Built-in lockout feature• Accepts padlocks with a 9/32" shackle diameter
• Vented to relieve downstream pressure
• No metal-to-metal moving parts
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome-plated brass ball for longer life
• Travel stops on body to avoid stresses at stem
• Hot forged, sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant
• The valve body includes a tapped downstream depressurization venting outlet to direct exhaust air and assemble mufflers for noise control
• Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
• Full port to DIN 3357 for maximum flow
• NPT taper ANSI B.1.20.1 female by female threads
• Blowout-proof nickel plated brass stem
• Pure virgin PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance
• Geomet® carbon steel lockable handle patent no. 7074-B/90 with thick PVC dip coating for thermal and electrical protection
• Handle removable with valve in service
• Glass-filled pure PTFE self-lubricating seats with flexible-lip design
• Working pressure: 200 PSI
• Operating temperature: 15°F to 210°F
• Approvals: Helps meet OSHA regulations
Applications:
• Pneumatic lines
Technical Specifications
| Item#: | 63151 |
|---|---|
| Fitting Type | Ball Valve |
| Configuration | Vented Forged Body with Lockout |
| Material | Brass |
| Connection Type A x B | Female NPT x Female NPT |
| Fitting Dimension A | 1-11-1/2 |
| Fitting Dimension B | 1-11-1/2 |
| Working Pressure | 200 PSI |
| Temperature Range | 15 to 210 °F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | Yes |
| Weight: | 1.51 lb |
