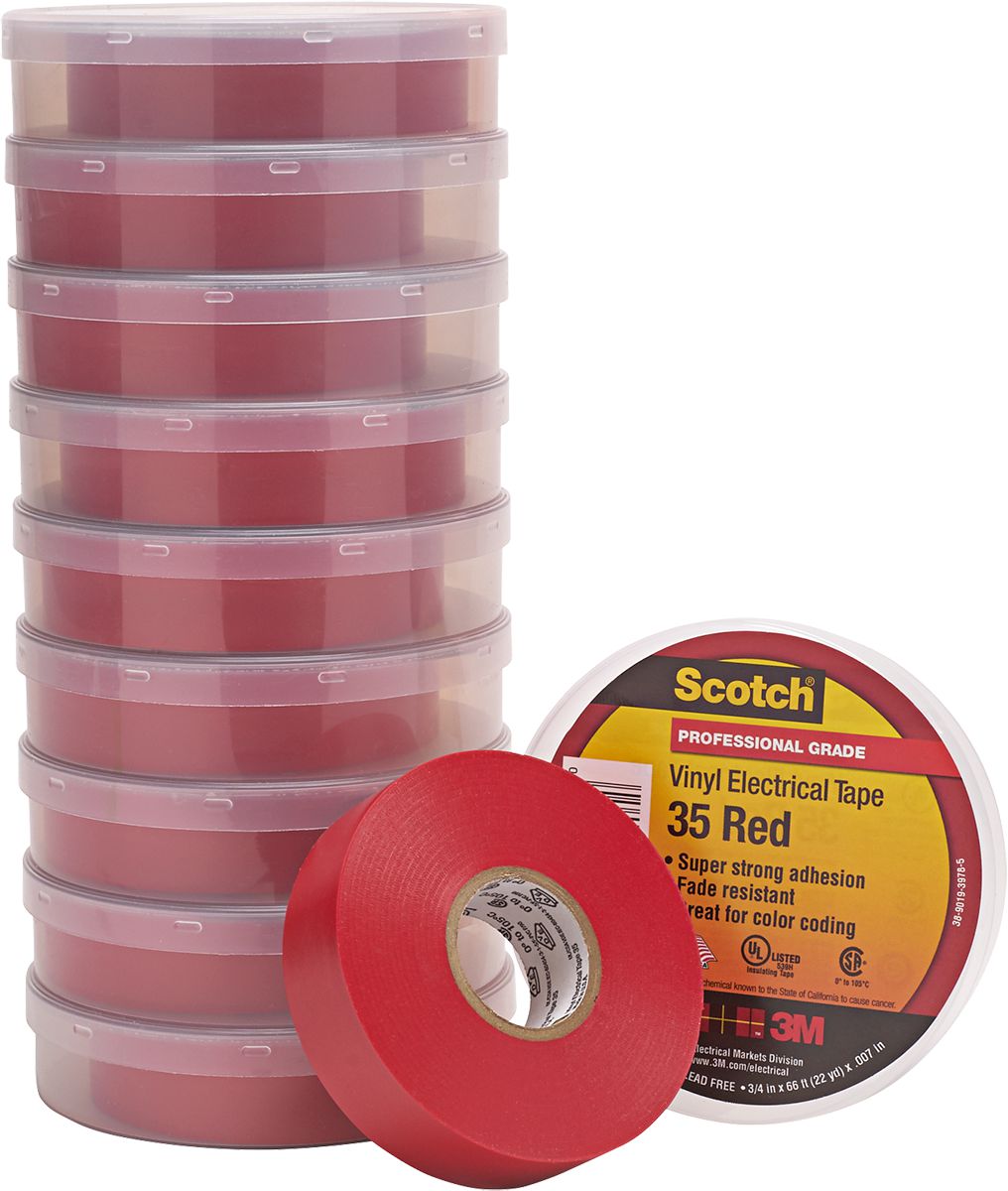

Vinyl Electrical Tape, Red, 3/4" Width, 66' Length, 225% Elongation, 32 to 220°F Temperature Rating
(Pack of
1)
SKU:1145933 Item#: 1145933
• 600V
• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 66'
• 7 mil thick (except 54519, which is 8 mil)
Couldn't load pickup availability
Catalog page#: 17-40
Frequently Bought Together
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Socket Contact 20-16 AWG Size 16
Couldn't load pickup availability
Connector Housing 20A 2-Wire Shroud
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
Flat Washer Grade 12 Thru-Hardened Steel M10
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Posi-Seal Plus Patch Black 2-1/2 x 2-1/2" Pads
Couldn't load pickup availability
Seal Tite Fusion Wrap Gray 1"
Couldn't load pickup availability
Silifuse Identification Tape, Black, 1 In Width x .02 Thick x 10Ft Len
Couldn't load pickup availability
Rubber Grommet 3/4" ID
Couldn't load pickup availability
Rubber Grommet 11/16" ID
Couldn't load pickup availability
Split Wire Loom Polyethylene Black 0.413" ID 25'
Couldn't load pickup availability
Product Description
• 600V• Flame-retardant
• Tested in accordance with UL, ASTM and CSA standards
• 3/4" x 66'
• 7 mil thick (except 54519, which is 8 mil)
Technical Specifications
| Item#: | 1145933 |
|---|---|
| Type | Multi-Pack |
| Style | Vinyl Electrical Tape |
| Color | Red |
| Dielectric Strength | 1,250 V/mm |
| Length | 66 ft |
| Width | 3/4 " |
| Thickness | 7 mil |
| Temperature Range | 32 to 220 °F |
| Celcius Temperature Range | 0 to 105 °C |
| Elongation | 225 % |
| Adhesion to Steel | 20 in. oz. |
| Adhesion to Backing | 20 in. oz. |
| Breaking Strength | 17 in·lbf |
| Voltage Rating | 600 V |
| Approvals | UL, CSA, ASTM |
| Description | 10 Pack – 3M 35 Series |
| UNSPSC #: | 31201502 |
| TAA Compliant: | Yes |
| Weight: | 2.35 lb |
