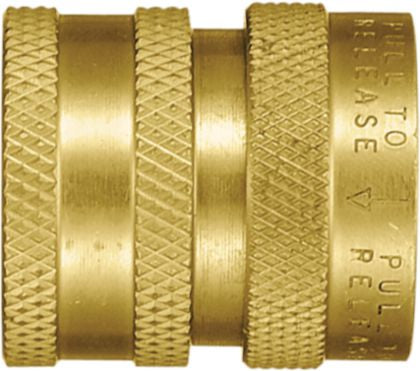

Water Line Coupling, Brass, 3/4", Female Garden Hose Thread x Quick Disconnect
(Pack of
2)
SKU:98954 Item#: 98954
Connects water lines with one quick snap. No more threading on nozzle, sprayers or other equipment. For low pressure water service only. Non-valved coupler design permits maximum flow and minimum pressure drop. Valved coupler design shuts off flow when nipple is disconnected (no need to shut off water at source). Durable ball-locking mechanism secures connection.
• Not to exceed 200 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)

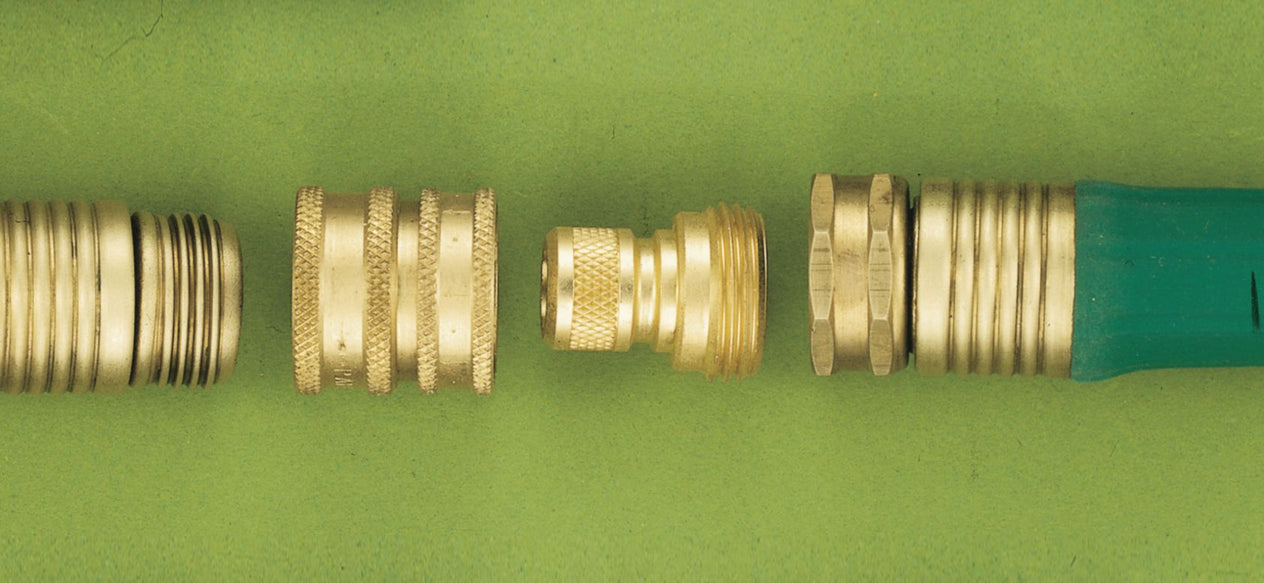

Water Line Couplings are easy to use1. Thread coupler to faucet or to a male hose end. Thread nipple to female hose end.2. To connect, pull back sleeve on coupler, insert nipple and release the sleeve.3. To disconnect, retract sleeve on coupler and pull out nipple.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 8-134
Frequently Bought Together
Garden Hose End Brass 1/2" x 3/4-11-1/2
Couldn't load pickup availability
Hose Barb Brass 1/4" x 1/4-18
Couldn't load pickup availability
Hose Barb Elbow 90° Brass 3/8" x 3/8-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4 x 3/8"
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Pipe Coupling Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 11/16 to 1-1/4"
Couldn't load pickup availability
Hose Clamp 304 SS 11/16 to 1-1/2"
Couldn't load pickup availability
Hose Barb Brass 1/2" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4 x 3/8"
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 1/2-13
Couldn't load pickup availability
Self-Drilling Screw Hex Head #10-16 x 3/4"
Couldn't load pickup availability
SAE J995C Locknut with Nylon Insert Grade 8 5/8-11
Couldn't load pickup availability
Product Description
Connects water lines with one quick snap. No more threading on nozzle, sprayers or other equipment. For low pressure water service only. Non-valved coupler design permits maximum flow and minimum pressure drop. Valved coupler design shuts off flow when nipple is disconnected (no need to shut off water at source). Durable ball-locking mechanism secures connection.• Not to exceed 200 PSI
• Temperature range: –40°F to +250°F (–40°C to +121°C)
Water Line Couplings are easy to use1. Thread coupler to faucet or to a male hose end. Thread nipple to female hose end.2. To connect, pull back sleeve on coupler, insert nipple and release the sleeve.3. To disconnect, retract sleeve on coupler and pull out nipple.
Technical Specifications
| Item#: | 98954 |
|---|---|
| Style | Valved |
| Type | Coupler |
| Material | Brass |
| Fitting Dimension A | 3/4-11-1/2 |
| Fitting Dimension B | Quick Disconnect Coupler |
| Thread Style | Female GHT |
| Thread Size | 3/4" (GHT) " |
| Maximum Pressure | 200 PSI |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 4.2 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
