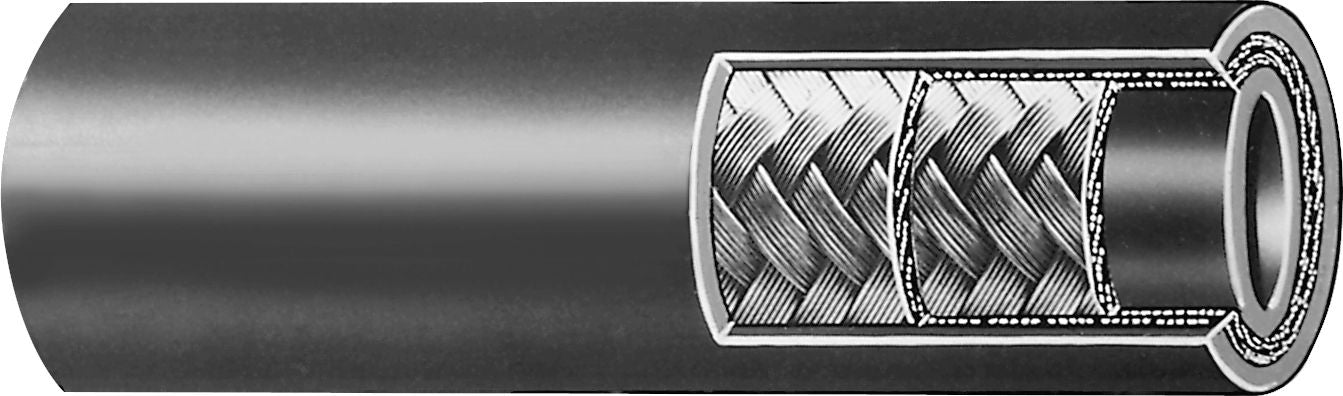

Weatherhead H425 Hydraulic Hose, Neoprene, 2-Steel Braided, 1" ID, 1-1/2" OD, 50' Length, 2000PSI, SAE 100R2
(Pack of
50)
SKU:57474 16 Item#: 57474 16
• Agency Ratings: SAE 100R2 Type AT • Fittings Certified: S-Series (except -10, -24, -32); U-Series (except -24, -32); Z-Series; 430U-Series (-12 through -32); 425N Series Field-Attachable• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service (-4 through -32), Fuel and Lube (-4 through -20; Note: requires fire sleeves), ABS (requires fire sleeve on -20)• Construction:– Inner Tube: Nitrile (-4 is neoprene)– Reinforcement: Two steel braids– Cover: Neoprene• Temperature Range – Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)
• Application Notes:
– Used for high-pressure hydraulic lines for off-road construction equipment and farm equipment, as well as other high-pressure applications
– Approved for marine hydraulic and fuel/lube service applications (see limitations)
– Accepts field-attachable fittings
Frequently Bought Together
Product Description
• Agency Ratings: SAE 100R2 Type AT • Fittings Certified: S-Series (except -10, -24, -32); U-Series (except -24, -32); Z-Series; 430U-Series (-12 through -32); 425N Series Field-Attachable• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service (-4 through -32), Fuel and Lube (-4 through -20; Note: requires fire sleeves), ABS (requires fire sleeve on -20)• Construction:– Inner Tube: Nitrile (-4 is neoprene)– Reinforcement: Two steel braids– Cover: Neoprene• Temperature Range – Petroleum-based fluids: –40°F to +212°F (–40°C to +100°C)• Application Notes:
– Used for high-pressure hydraulic lines for off-road construction equipment and farm equipment, as well as other high-pressure applications
– Approved for marine hydraulic and fuel/lube service applications (see limitations)
– Accepts field-attachable fittings
Technical Specifications
| Item#: | 57474 16 |
|---|---|
| Industrial / Hydraulic | Hydraulic |
| Type | Rubber - Steel Braided |
| Category / Performance | High Pressure |
| Industry Rating 1 | SAE 100R2 |
| Industry Rating | MSHA Accepted, Marine Application J1942/1 Fuel and Hydraulic, ABS1 |
| Manufacturer Series Number | H425 |
| Manufacturer Series Name | Weatherhead |
| I.D. | 1 (-16) " |
| Hose O.D. | 1-1/2 " |
| Working Pressure | 2,000 PSI |
| Burst Pressure | 8,000 PSI |
| Fitting Series | Crimp: Z Series, U Series, 430U Series, S Series, Field Attachable: 425N Series |
| Bend Radius | 12 " |
| Inner Tube Material | Nitrile |
| Hose Reinforcement | 2 Steel Braids |
| Hose Cover Material | Neoprene |
| Temperature | Normal |
| Material | Hydraulic Oil |
| Applications | Hydraulic - Constant Flow |
| Temperature Range | -40F to +212F |
| UNSPSC #: | 40142020 |
| TAA Compliant: | No |
| Weight: | 50.0 lb |
