H039 Weatherhead Suction/Return Line Hose, CPE Inner Tube, Neoprene Steel Helix, Black, 300PSI, 3/4" (-12) ID
(Pack of
50)
• Agency Ratings: SAE 100R4AT
• Fittings Certified: Z-Series
• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service, ABS
• Construction:
– Inner Tube: CPE
– Reinforcement: One helical cable wire between two textile layers plus one fabric braid
– Cover: Neoprene
• Temperature Range:
– Petroleum-based fluids: –40°F to +275°F (–40°C to +135°C)
• Application Note: Hydraulic suction hose
Consists of no more than two pieces totaling 50 feet (±10%)
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 8-120
Frequently Bought Together
Weatherhead Suction/Return Line Hose 1" Black
Couldn't load pickup availability
Spiraflex Aggie PVC Suction Hose 3" Clear
Couldn't load pickup availability

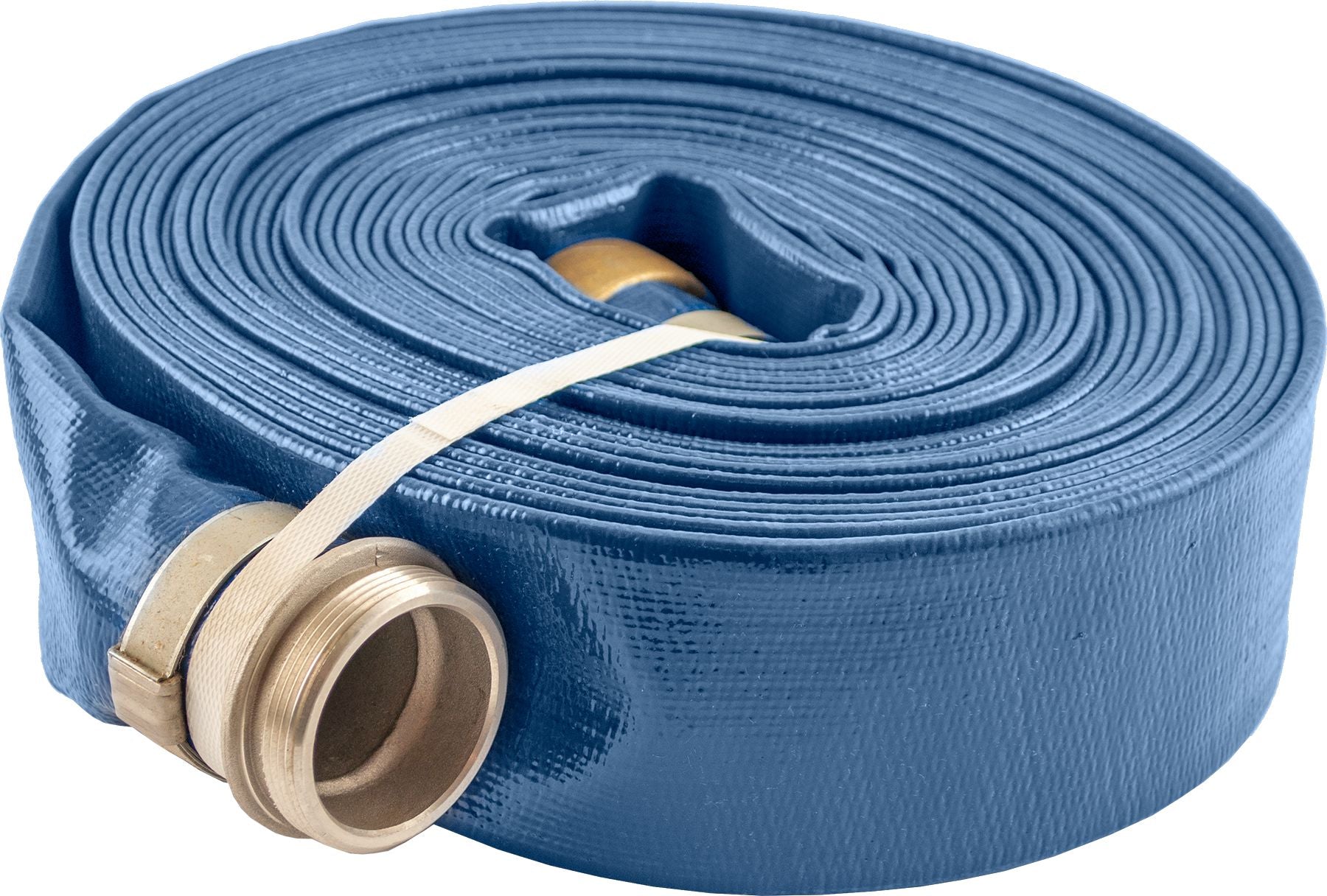

Layflat PVC Discharge Hose Assembly 1-1/2" x 50'
Couldn't load pickup availability
Replacement Fitting P/U Self-Coiling Hose 3/8"
Couldn't load pickup availability
H0105 Bosflex Air and Water Hose 1/2" Red
Couldn't load pickup availability
H285 Clearforce-R Food Transfer Hose 1/4" Clear
Couldn't load pickup availability
DOT Union Nylon 3/8 x 3/8"
Couldn't load pickup availability
Hex Head Plug Brass 1/2-14 Male NPT
Couldn't load pickup availability
Silicone Heater/Coolant Hose Clamp 9/16 to 1-1/16"
Couldn't load pickup availability
Nylon Cable Tie 4" Black
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Product Description
• Agency Ratings: SAE 100R4AT• Fittings Certified: Z-Series
• Agency Approvals: MSHA, Marine Application J1942/1 Hydraulic Service, ABS
• Construction:
– Inner Tube: CPE
– Reinforcement: One helical cable wire between two textile layers plus one fabric braid
– Cover: Neoprene
• Temperature Range:
– Petroleum-based fluids: –40°F to +275°F (–40°C to +135°C)
• Application Note: Hydraulic suction hose
Consists of no more than two pieces totaling 50 feet (±10%)
Technical Specifications
| Item#: | 64628 12 |
|---|---|
| Type | Suction and Discharge |
| Industry Rating 1 | SAE 100R4 |
| Manufacturer Series Number | H039 |
| Manufacturer Series Name | Weatherhead |
| I.D. | 3/4 (-12) " |
| Working Pressure | 300 PSI |
| Minimum Bend Radius | 2.5 " |
| Inner Tube Material | CPE |
| Hose Cover Material | Neoprene |
| Fitting Series | Z-Series |
| Temperature | -40F to +275F |
| Color | Black |
| Size | 3/4 (-12) |
| Mercury Vacuum (Inches) | 25 |
| UNSPSC #: | 40142000 |
| TAA Compliant: | Yes |
| Weight: | 23.0 lb |
