Welding Protective Shield
(Pack of
1.0)

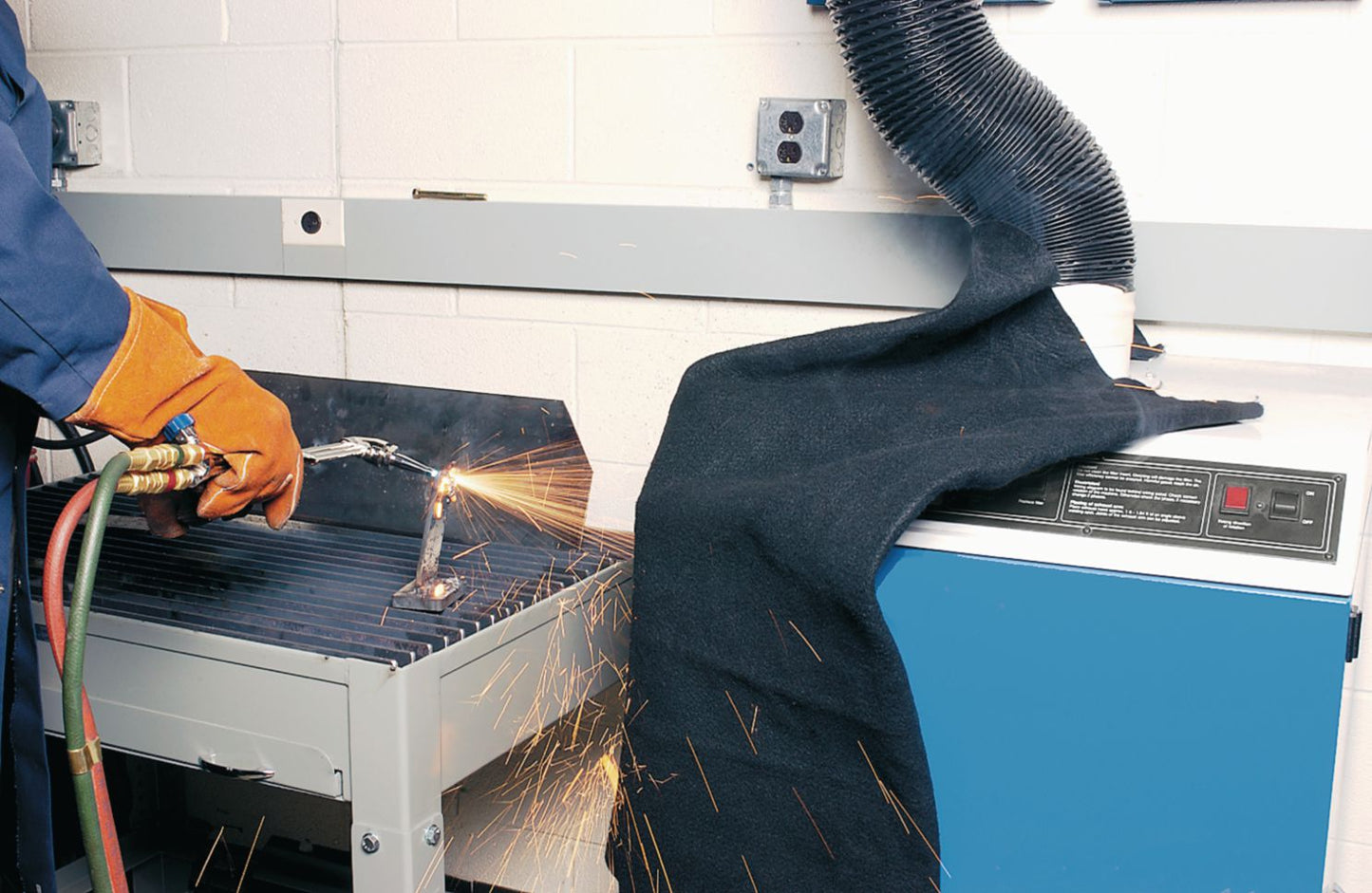

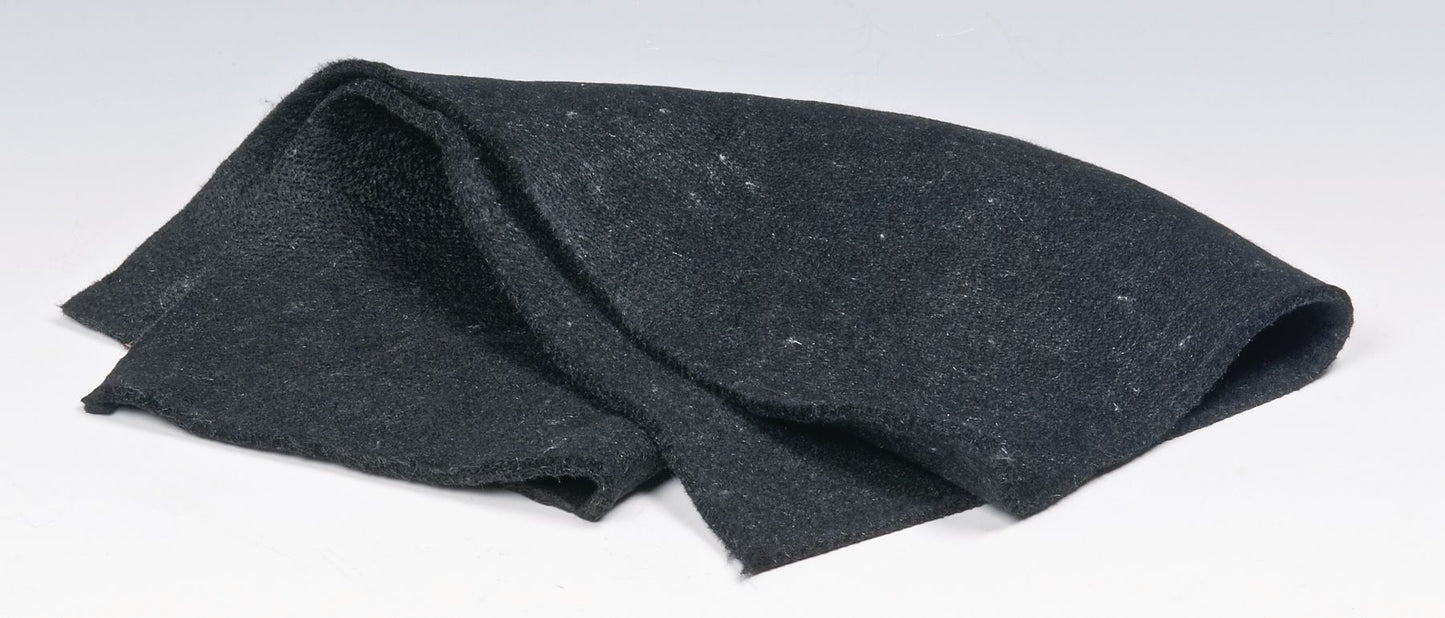

Heat-resistant, flexible material protects nearby areas and equipment from heat, flame, sparks and weld spatter. These shields are made with a carbon fiber fabric that was developed from NASA technologies and is extremely resistant to fire and heat. The versatile blankets are soft and lightweight, providing incredible ease-of-use. They provide protection from direct contact with weld spatter and are perfect for covering finished surfaces such as automotive and OEM equipment applications. The tough, tear-resistant material stands up to heat, flame and molten metal. Easy to clean; just shake, vacuum or blow metal particles out.
• Working temperature: 1,800°F (982°C)
• ASTM E84-97a scores: Flame spread index = 7; smoke index = 4
• Meets and exceeds all standards of NFPA 701 (standard method of fire tests for flame-resistant textiles and films)
WARNING: Cannot be used as fire-retardant clothing.
WARNING: Temperatures and applications are intended as guidelines only and not as guarantee of performance. All blankets are subject to burn-through. The products provide only temporary protection within their individual specifications. It’s the user’s responsibility to monitor their activity and use of the product at all times. Contact the Cronatron® Technical Hotline at (800) 843-0763 if you have any questions.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer -
www.P65Warnings.ca.gov
Frequently Bought Together
Heat Sheet
Couldn't load pickup availability
Auto-Darkening Panoramic View Welding Helmet
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Red
Couldn't load pickup availability
WypAll X80 ShopPro Towel 9.1 x 16.8"
Couldn't load pickup availability
SafetyPro 8 Mil Nitrile Glove Orange X-Large
Couldn't load pickup availability
Valve Action® Permanent Paint Marker Yellow
Couldn't load pickup availability
WypAll X80 ShopPro Towel 12.5 x 16.8"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 3/8"
Couldn't load pickup availability
Universal Size Welders Pipeliner Cap
Couldn't load pickup availability
2X4-1/4 Gold Lens W/Cover Plate #11
Couldn't load pickup availability
Welding Sleeves
Couldn't load pickup availability
Product Description
Heat-resistant, flexible material protects nearby areas and equipment from heat, flame, sparks and weld spatter. These shields are made with a carbon fiber fabric that was developed from NASA technologies and is extremely resistant to fire and heat. The versatile blankets are soft and lightweight, providing incredible ease-of-use. They provide protection from direct contact with weld spatter and are perfect for covering finished surfaces such as automotive and OEM equipment applications. The tough, tear-resistant material stands up to heat, flame and molten metal. Easy to clean; just shake, vacuum or blow metal particles out.• Working temperature: 1,800°F (982°C)
• ASTM E84-97a scores: Flame spread index = 7; smoke index = 4
• Meets and exceeds all standards of NFPA 701 (standard method of fire tests for flame-resistant textiles and films)
WARNING: Cannot be used as fire-retardant clothing.
WARNING: Temperatures and applications are intended as guidelines only and not as guarantee of performance. All blankets are subject to burn-through. The products provide only temporary protection within their individual specifications. It’s the user’s responsibility to monitor their activity and use of the product at all times. Contact the Cronatron® Technical Hotline at (800) 843-0763 if you have any questions.
Technical Specifications
| Item#: | CW5140 |
|---|---|
| Type | Blanket |
| Style | Heat Shield |
| Size | 6 x 6 ft |
| Color | Black |
| Material | Carbon Fiber |
| Operating Temperature Range | 1,800 (982) °F |
| Approvals | NFPA 701 |
| UNSPSC #: | 46181500 |
| TAA Compliant: | Yes |
| Weight: | 4.5 lb |
