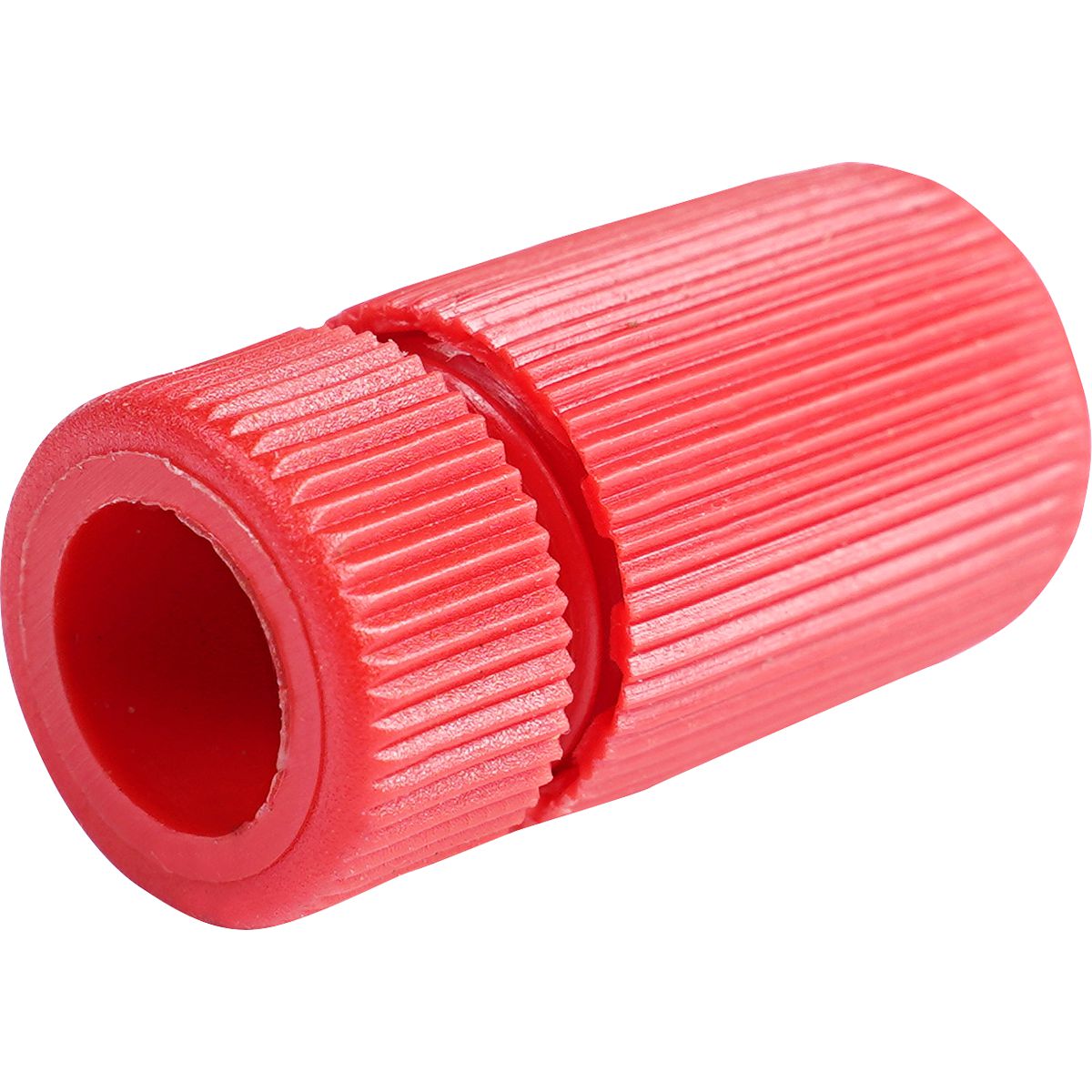

Wire Nut Posi-Twist, 22-10 AWG
(Pack of
10)
A wire nut style connector that creates a secure connection without the use of tools, tape, crimping or soldering
Simply strip the wires, twist together, insert into the Posi-Twist™ and hand tighten
The patented design locks wires between two cone shapes when hand-tightened for a connection with exceptional pull-out strength
The connectors are completely insulated and re-usable
Connects 28 wires depending on the AWG
Maximum Temperature Rating: 248˚F/ 120˚C
Couldn't load pickup availability
Catalog page#: LE-146
Frequently Bought Together
Right Angle Safety LED Light 3x AA 7.44"
Couldn't load pickup availability
MINI Fuse 30A Green
Couldn't load pickup availability
MINI Fuse 10A Red
Couldn't load pickup availability
IFI 100/107 Top Locknut Grade C 5/8-11
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
Couldn't load pickup availability
Hex Nut Grade 8 Alloy Steel 3/8-16
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Clear
Couldn't load pickup availability
Male Quick Slide Terminal 22 to 18 AWG Clear
Couldn't load pickup availability
Female Quick Slide Terminal 22 to 18 AWG Red
Couldn't load pickup availability
Wire Pin Connector 16 to 14 AWG
Couldn't load pickup availability
Wire Pin Connector 22 to 18 AWG
Couldn't load pickup availability
Wire Pin Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Reusable Posi-Lock
Couldn't load pickup availability
Posi-lock Splice Connector 18 to 12 AWG
Couldn't load pickup availability
Product Description
A wire nut style connector that creates a secure connection without the use of tools, tape, crimping or soldering Simply strip the wires, twist together, insert into the Posi-Twist™ and hand tighten
The patented design locks wires between two cone shapes when hand-tightened for a connection with exceptional pull-out strength
The connectors are completely insulated and re-usable
Connects 28 wires depending on the AWG
Maximum Temperature Rating: 248˚F/ 120˚C
Technical Specifications
| Item#: | DY20780022 |
|---|---|
| Type | Wire Nut |
| Wire Gauge | 22-10 AWG |
| Voltage Rating | 600 V |
| Color | Red |
| Maximum Temperature Rating | 248˚F/ 120˚C |
| Approvals | SAE J1211 |
| Description | Red Posi-Twist Wire Nut 22-10 AWG |
| Style | Posi-Twist™ Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | No |
| Weight: | 0.06 lb |
