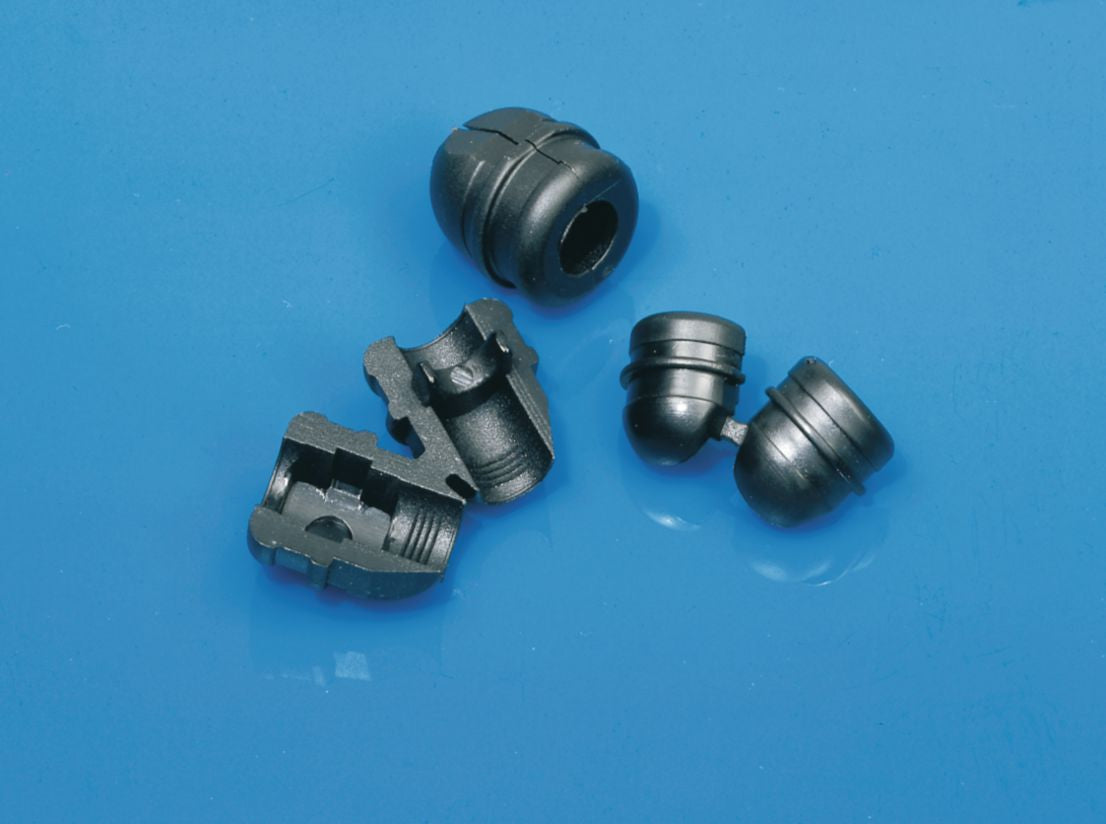

Wire Strain Relief Bushing, Nylon, Black, 0.625" Mounting Hole Diameter, 0.74 x 0.64" Bushing Size, Round Cable Cross Section
(Pack of
25)
SKU:96107 Item#: 96107
• Bushings absorb push, pull and twist of the cord
• Made of abrasion-resistant nylon
• Tapered, streamlined nose allows easy installation
• Groove on outside of bushing facilitates the use of pliers during installation
• Can also be installed by hand
• Serrations on inside of strain relief grip wire or cord to prevent slippage
• Withstands temperature to 221°F (105°C)• Pullout specifications to 30 lbs.
• Secures power cords to machines and appliances
• For use on appliances, hospital test equipment, power tools, lighting and lamps, automotive testing equipment, manufacturing machines and electronic and electrical devices

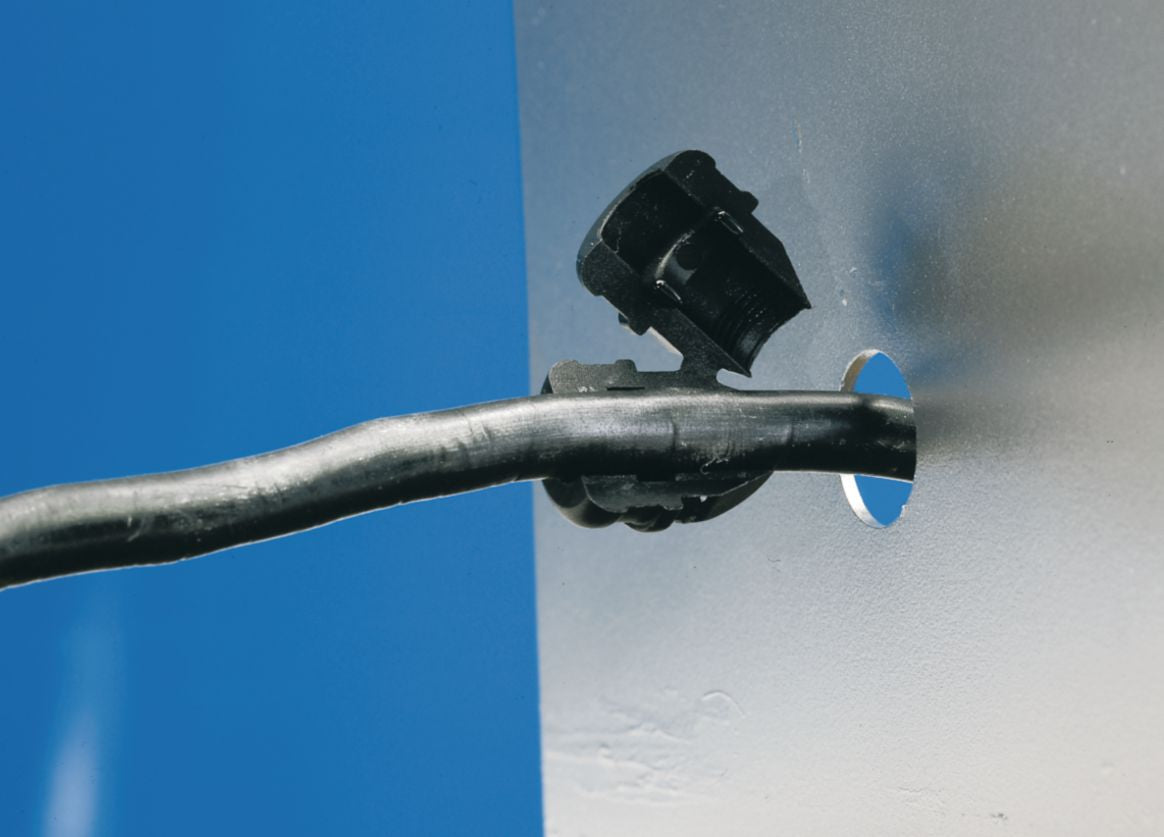

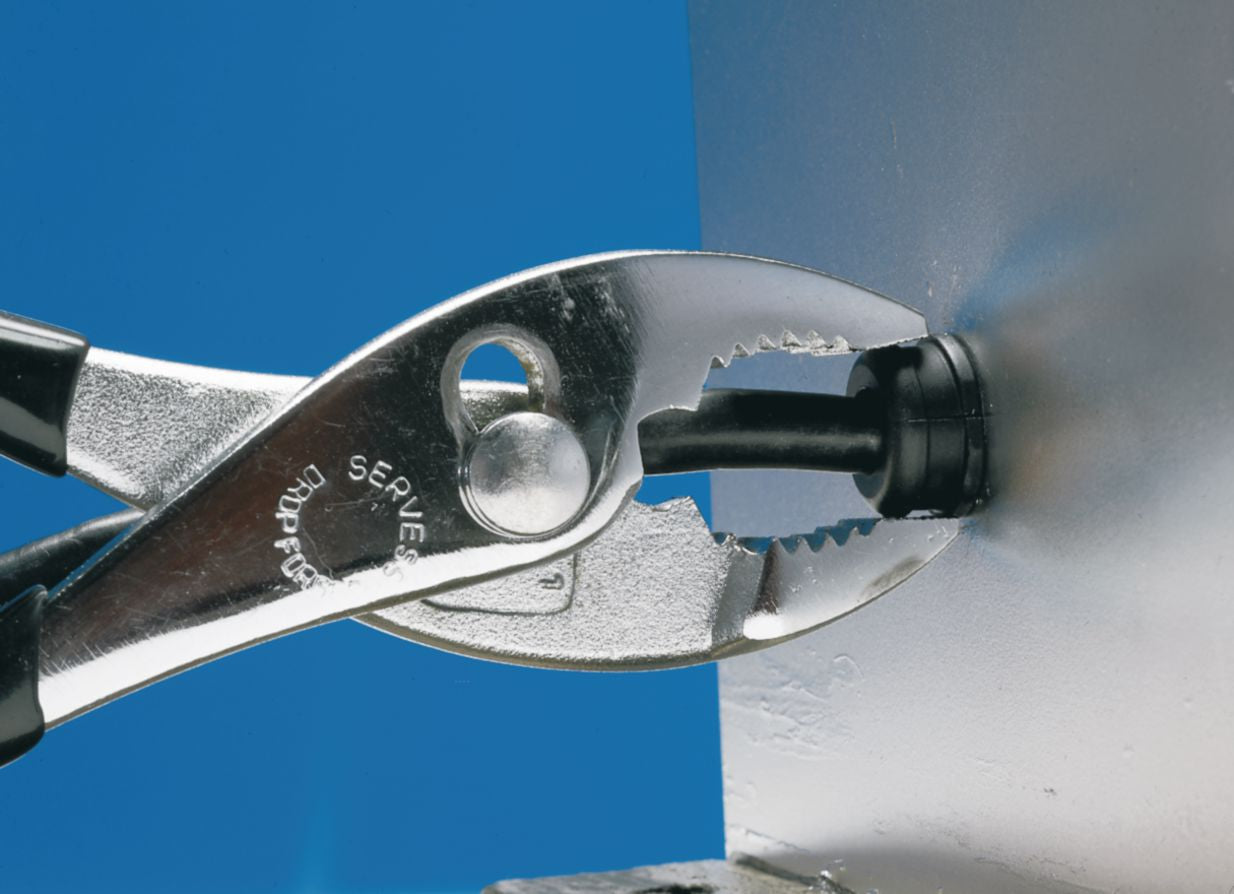

1. Fold the hinged halves of the bushing over the wire cable, with the tapered end pointing toward the panel.2. Apply pliers to groove or, using hands, insert bushing into hole with one easy motion. Bushing will lock into place.
Frequently Bought Together
Snap Bushing Nylon Black 15/16"
Couldn't load pickup availability
Snap Bushing Nylon Black 3/4"
Couldn't load pickup availability
Snap Bushing Nylon Black 5/8"
Couldn't load pickup availability
ATO/ATC Fuse 15A Blue
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
MINI Fuse 20A Yellow
Couldn't load pickup availability
Locknut with Nylon Insert Grade 8 5/16-18
Couldn't load pickup availability
Autobahn Ergo Magna EZ Crimper Ratcheting Terminal Crimper
Couldn't load pickup availability
PTO Pin Lock 1/4 x 2-1/2"
Couldn't load pickup availability
7Pc 1/4Dr Gorilla Extractor Set
Couldn't load pickup availability
14Pc Metric 12Pt Cross-Torque Wrench Set
Couldn't load pickup availability
Right Dress Stainless Steel Cleaner and Polish
Couldn't load pickup availability
7Pc 1/4Dr Gorilla Extractor Set
Couldn't load pickup availability
14Pc Metric 12Pt Cross-Torque Wrench Set
Couldn't load pickup availability
Right Dress Stainless Steel Cleaner and Polish
Couldn't load pickup availability
Vinyl Electrical Tape Black 3/4" x 66'
Couldn't load pickup availability
Vinyl Electrical Tape Black 3/4" x 66'
Couldn't load pickup availability
Super 33+ Series Vinyl Electrical Tape Black 3/4"
Couldn't load pickup availability
Product Description
• Bushings absorb push, pull and twist of the cord• Made of abrasion-resistant nylon
• Tapered, streamlined nose allows easy installation
• Groove on outside of bushing facilitates the use of pliers during installation
• Can also be installed by hand
• Serrations on inside of strain relief grip wire or cord to prevent slippage
• Withstands temperature to 221°F (105°C)• Pullout specifications to 30 lbs.
• Secures power cords to machines and appliances
• For use on appliances, hospital test equipment, power tools, lighting and lamps, automotive testing equipment, manufacturing machines and electronic and electrical devices
1. Fold the hinged halves of the bushing over the wire cable, with the tapered end pointing toward the panel.2. Apply pliers to groove or, using hands, insert bushing into hole with one easy motion. Bushing will lock into place.
Technical Specifications
| Item#: | 96107 |
|---|---|
| Maximum Panel Thickness | 0.062 " |
| Cable Size | .300 " |
| Cable Type | SJT SJ SJT |
| Cable Cross Section | Round |
| Wire Gauge | 16/3, 16/3. 18/3 AWG |
| Mounting Hole Diameter | 0.625 " |
| Bushing Length | 0.740 " |
| Bushing Width | 0.640 " |
| Temperature Max. | 221 F |
| Approvals | UL, CSA |
| Style | Strain Relief Bushings |
| Type | Bushings |
| UNSPSC #: | 39121312 |
| TAA Compliant: | Yes |
| Weight: | 0.14 lb |
