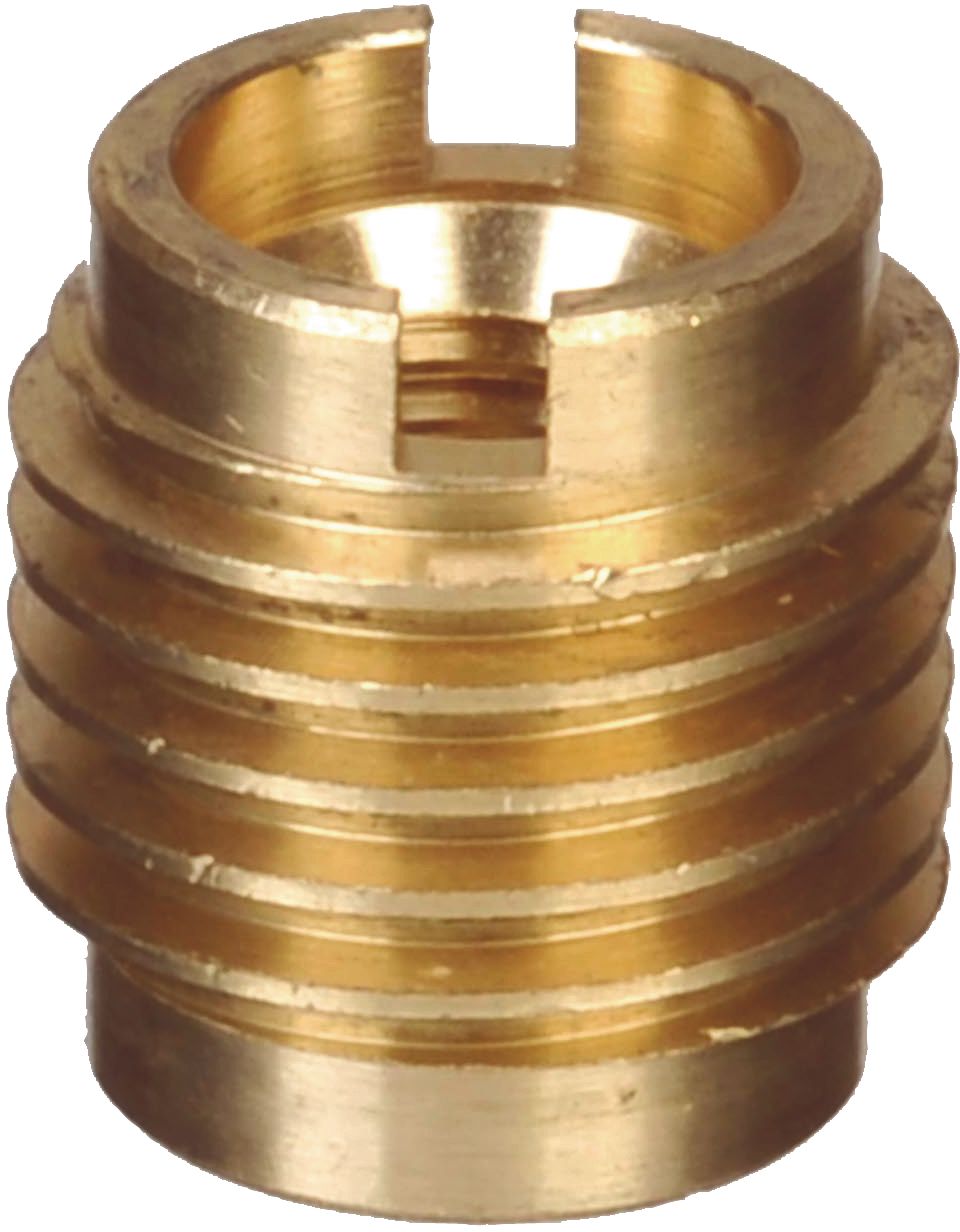

Wood Thread Insert, 5/16-24 Internal Thread, 1/2" Body Diameter, 0.62" Length, 0.08" Slot Depth, 0.09" Slot Width
(Pack of
10)
SKU:96747 Item#: 96747
• These solid brass inserts provide machine threads in particle board, solid wood, wood composites, plastics and rubber
• Easy to install and remove
• Knife-like threads slice through material with minimal displacement, eliminating puckering or swelling while providing greater pull-out strength than typical wood screws
1. Drill a hole the same size as the body diameter of the insert.2. Install insert with a screwdriver. (In woods, varnish is suggested as a lubricant.)3. Position the part to be attached and fasten down with a screw.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 6-20
Frequently Bought Together
Jobber Length Drill Bit HSS 7/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 11/64"
Couldn't load pickup availability
Jobber Length Drill Bit HSS 15/64"
Couldn't load pickup availability
USS Flat Washer Thru-Hardened Steel 5/16"
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Butt Connector 22 to 18 AWG Red
Couldn't load pickup availability
Micro Screw Power Extractor Kit 4Pcs
Couldn't load pickup availability
Thin Wall Locking Thread Insert Kit M8 x 1.25
Couldn't load pickup availability
Wire Thread Insert Repair Kit M5 to M12
Couldn't load pickup availability
Master Security Bit Set 203Pc
Couldn't load pickup availability
2.1 Round Head Ratchet 3/8 Drive 168 Tooth
Couldn't load pickup availability
Jobber Length Drill Bit HSS 3/8"
Couldn't load pickup availability
Wood Thread Insert Kit
Couldn't load pickup availability
Product Description
• These solid brass inserts provide machine threads in particle board, solid wood, wood composites, plastics and rubber• Easy to install and remove
• Knife-like threads slice through material with minimal displacement, eliminating puckering or swelling while providing greater pull-out strength than typical wood screws
1. Drill a hole the same size as the body diameter of the insert.2. Install insert with a screwdriver. (In woods, varnish is suggested as a lubricant.)3. Position the part to be attached and fasten down with a screw.
CAUTION: Any cutting tool may break or shatter under improper use. Government regulations require use of safety glasses and other appropriate safety equipment at all times in the vicinity of use.
Technical Specifications
| Item#: | 96747 |
|---|---|
| Type | Wood Insert |
| Thread Size Internal | 5/16-24 |
| Body Diameter | 1/2 " |
| Length | 0.62 " |
| O.D. | .60 " |
| Slot Depth | .08 " |
| Slot Width | .09 " |
| UNSPSC #: | 27112810 |
| TAA Compliant: | Yes |
| Weight: | 0.26 lb |
