Home Hydraulics Hydraulic End Fittings Z Series Crimp-On Elbow 45° 5/8" x 34mm
End Fittings

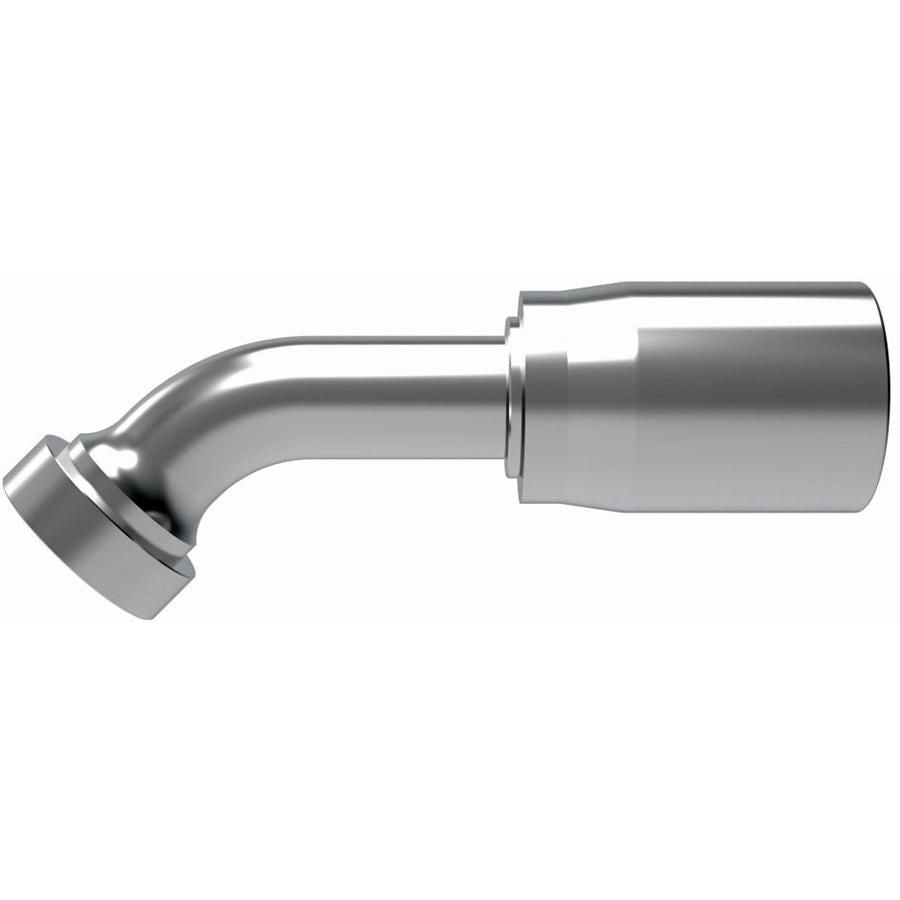

Z Series Crimp-On Elbow, Carbon Steel, Split Flange, 45°, 5/8" (-10) x 34mm
(Pack of 5)

Item#: 16921M05

Danfoss®

These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

Frequently Bought Together


KH Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16

Item#: 88382KH

Z Series Crimp-On Elbow Flare 90° 1/2" x 3/4-16

Item#: 16649

KH Series Crimp-On Coupling 1/2" x 1-1/16-12

Item#: 88292KH

Hydraulic Cap Nut, 9/16-18"(06) Female JIC SAE 37 Degree Flare

Item#: 86150

Hydraulic Cap Nut, 1-5/16-12"(16) Female JIC SAE 37 Degree Flare

Item#: 86154

MegaCrimp Crimp-On Coupling 1/2" x 3/4-16

Item#: 62885

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 57504

DOT Connector Male Brass 1/4 x 1/4-18

Item#: 57505

Z Series Crimp-On Hose End 3/8" x 9/16-18

Item#: 16613

Flat Washer Grade 12 Thru-Hardened Steel M8

Item#: 87510

Vision Pro Super

Item#: DY21061040

IFI 100/107 Top Locknut Grade C 5/8-11

Item#: 80933

Product Description

These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 16921M05
Manufacturer Model #: 10Z-G69
Manufacturer Series Number Z Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 5/8 (-10) "
Dash Size -10
Gender Split Flange
Fitting End Style Split Flange - Metric (Komatsu, Linkbelt)
Fitting End Type Metric
Fitting Angle 45 °
Fitting Dimension B (Working End) 34
Flange Diameter 1.35 "
Weatherhead No. 10Z-G69
Flange Size 34 mm
Size (-10)X(-10)
Hex Size 0.265 "
Material Carbon Steel
UNSPSC #: 27121705
TAA Compliant: No
Weight: 1.9 lb
