Home End Fittings Z Series Crimp-On Elbow 90° 3/8" x 11/16-16
End Fittings

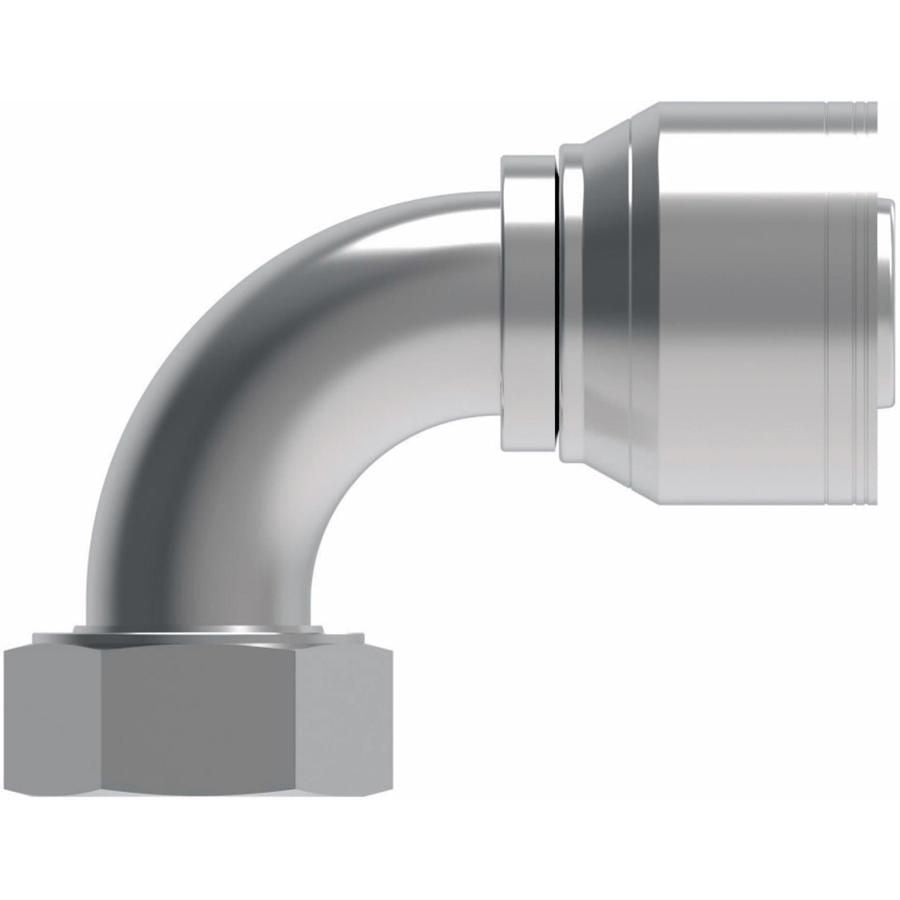

Z Series Crimp-On Elbow, Carbon Steel, Short Drop, Female Flat Face O-Ring Seal, 90°, 3/8" (-6) x 11/16-16 (-6)
(Pack of 1)

Danfoss®

These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 8-13, 8-22

Frequently Bought Together


Z Series Crimp-On Hose End 1/2" x 1-1/16-12

Item#: 16617

Z Series Crimp-On Hose End 5/8" x 1-14

Item#: 16713

Z Series Crimp-On Hose End 1/2" x 3/4-16

Item#: 16672

Z Series Crimp-On Hose End 3/8" x 3/8-18

Item#: 16580

Z Series Crimp-On Hose End 3/4" x 1-3/16-12

Item#: 16716

Straight Thread O-Ring Buna-N 0.351 x 0.072"

Item#: 93614

Non-Perforated Clamp 316 SS #4 7/16 to 11/16"

Item#: 58832

Miniature Clamp SS 5/16 to 7/8"

Item#: 86723

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 91785

Self-Drilling Screw Hex Head #10-16 x 3/4"

Item#: 84931

Flat Washer Grade 12 Thru-Hardened Steel M12

Item#: 87512

USS Flat Washer Thru-Hardened Steel 3/8"

Item#: FA88447

Product Description

These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.

Technical Specifications

Item#: 16742
Manufacturer Series Number Z Series
Attachment Method Crimp-On
Fitting Dimension A (Hose) 3/8 (-6) "
Dash Size -6
Gender Female
Fitting End Style Flat Face O-Ring Face Seal
Fitting End Type Swivel
Fitting Angle 90 °
Fitting Drop Length Short
Fitting Dimension B (Working End) 11/16-16 (-6)
Weatherhead No. 06Z-A26
Drop Length Short
O.D. Tube Size 3/8
Size (-6)X(-6)
Hex Size 13/16 "
Material Carbon Steel
UNSPSC #: 27121700
TAA Compliant: Yes
Weight: 0.18 lb

Product Restrictions

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
