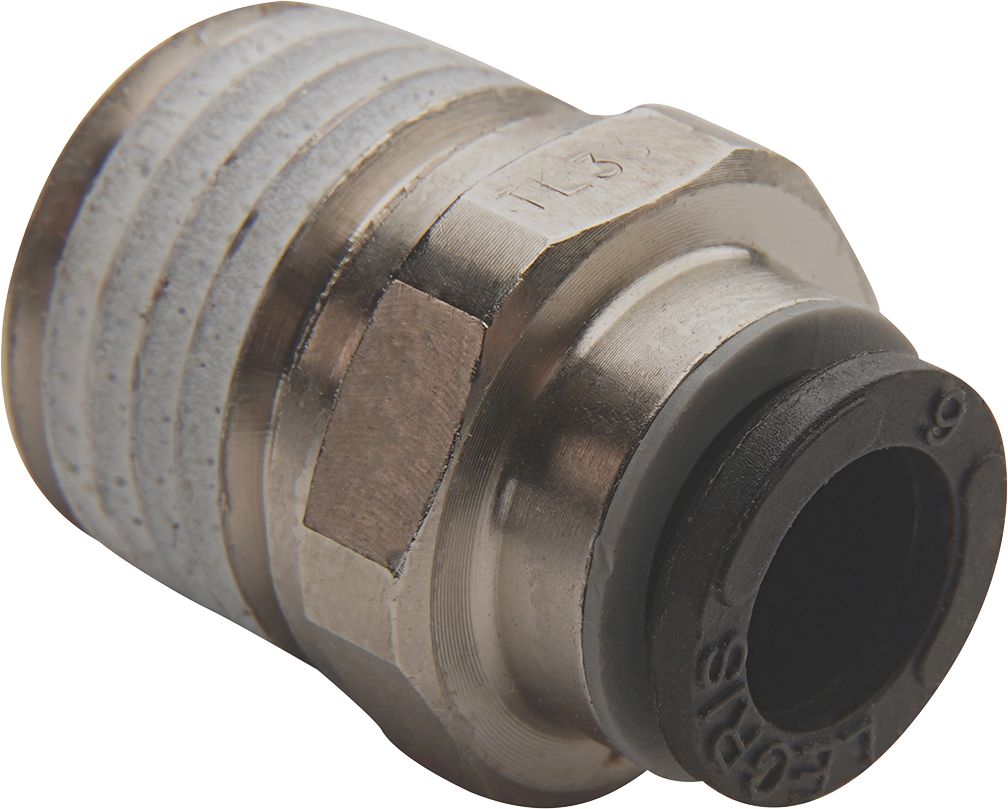

Push-To-Connect Fitting, LF3000, Male Connector, 6mm Tube x 1/4 NPT
(Pack of
10.0)
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.
• All items in the LF3000 range are silicone free• Working temperature: -4°F to +175°F (collet technology 3/16" tube size: 5° F to 155° F)• Working pressure: up to 290 PSI• Suitable fluids: compressed air• Vacuum capability: vacuum of 28" Hg (99% vacuum)
• Construction:– Body: glass-reinforced nylon 6.6– Collar: nylon– Gripping ring: stainless steel (all sizes except 3/16" tube)– Collet: brass (3/16" tube size only)– D seal: nitrile– O-ring: nitrile– Base: nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Pipe Adapter Brass 1/4-18 x 3/8-18
Couldn't load pickup availability
Pipe Bushing Brass 3/4-14 x 1/2-14
Couldn't load pickup availability
Pipe Tee Brass 1/4-18 x 1/4-18 x 1/4-18
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Super 77 Hose Clamp SS 1/2 to 1-1/8"
Couldn't load pickup availability
DOT Elbow Male Nylon 3/8 x 1/4-18
Couldn't load pickup availability
Push-to-Connect Union Elbow Nylon 1/4 x 1/4"
Couldn't load pickup availability
Push-to-Connect Connector Brass 12mm x 3/8"
Couldn't load pickup availability
Nylon Hose Guard 1.06" ID x 25' Length
Couldn't load pickup availability
Stepdown Butt Connector 22 to 18/16 to 14 AWG
Couldn't load pickup availability
Qwik Stik® Electrolyte Powder Mix Grape
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Product Description
Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. The LF3000 system is available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and Metric threads.• All items in the LF3000 range are silicone free• Working temperature: -4°F to +175°F (collet technology 3/16" tube size: 5° F to 155° F)• Working pressure: up to 290 PSI• Suitable fluids: compressed air• Vacuum capability: vacuum of 28" Hg (99% vacuum)
• Construction:– Body: glass-reinforced nylon 6.6– Collar: nylon– Gripping ring: stainless steel (all sizes except 3/16" tube)– Collet: brass (3/16" tube size only)– D seal: nitrile– O-ring: nitrile– Base: nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 1593546 |
|---|---|
| Style | LF3000 |
| Configuration | Male Connector |
| Tube Size | 6 mm |
| Thread Size | 1/4 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass |
| Wrench Size | 14 mm |
| Internal Hex Size | 4 mm |
| Working Pressure | 290 PSI |
| Temperature Range | -4 to +175 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | No |
| Weight: | 0.28 lb |
